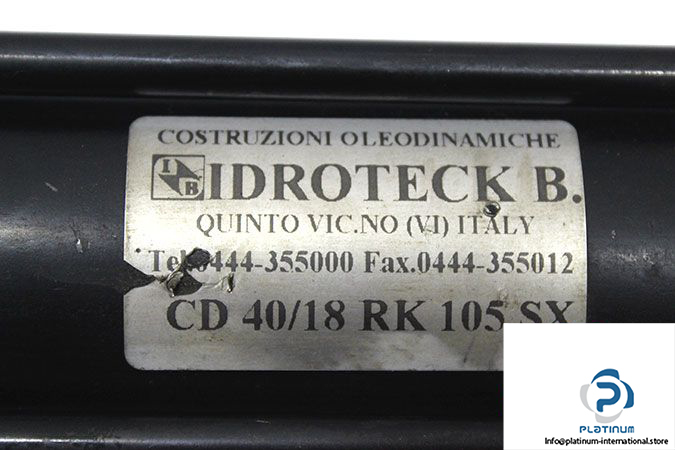

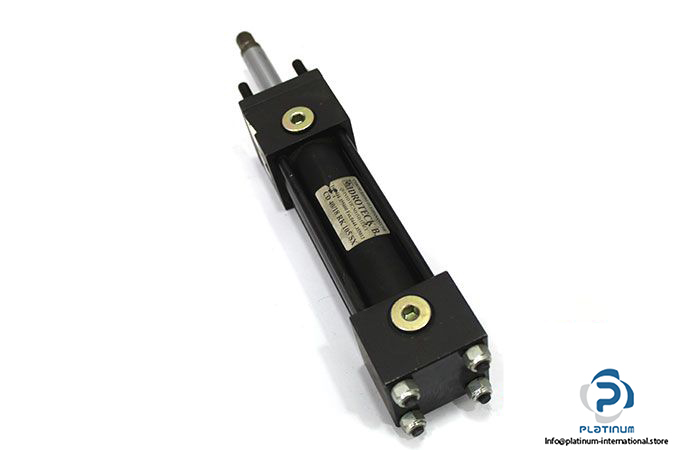

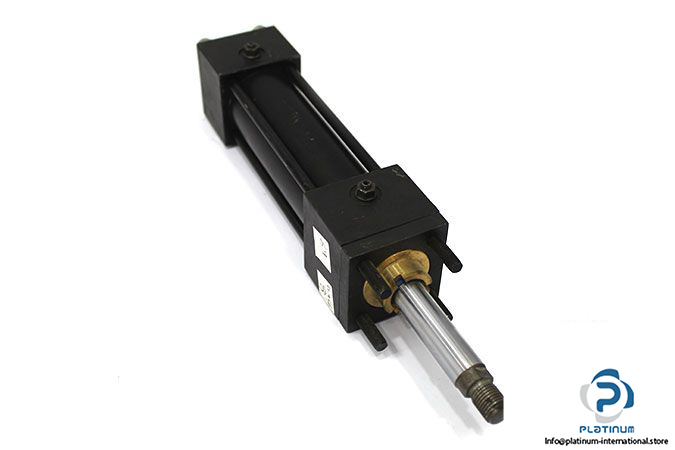

Idroteck CD 40/18 RK 105 SX Hydraulic Cylinder

Manufacturer: IDROTECK

Type: Hydraulic Actuator

Model: CD40/18RK105SX

Piston Diameter: 40 mm

Rod Diameter: 18 mm

Stroke: 105 mm

Cylinder Shape: Tie – Rod

Mode of operation: Double-Acting

Mounting style: Extended tie rod at head

Maximum operating pressure: 160 bar

Piston rod end: male thread

Connection: G 3/8

Weight: 4.2 kg
