IER Maximat LW SUP-ZK Leakage Sensor
Used
In stock1 unitReady to ship
Leakage Sensor
IER MAXIMAT LW SUP-ZK leakage sensor designed for liquid leakage monitoring systems, operating at 12 V DC with IP65 protection and integrated measuring circuit for reliable alarm detection.12dcDetectionDetectorIERIndustrialIP65LeakageLevelLiquidLWMaximatMonitOverfillSafetySensorStorageSUP-ZKTankV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

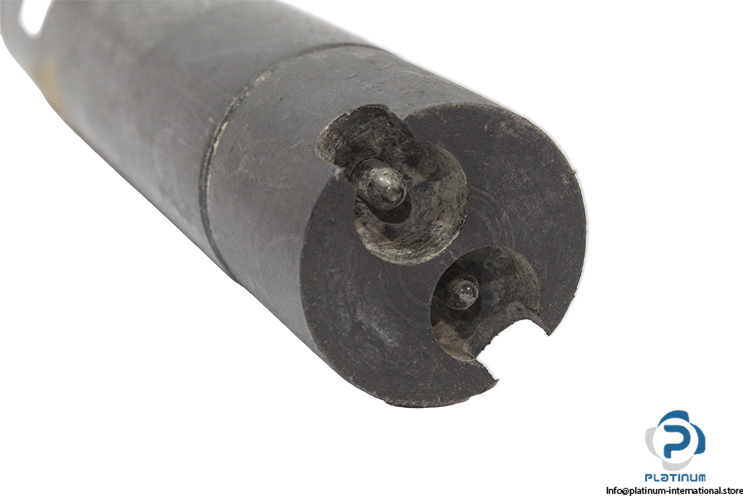

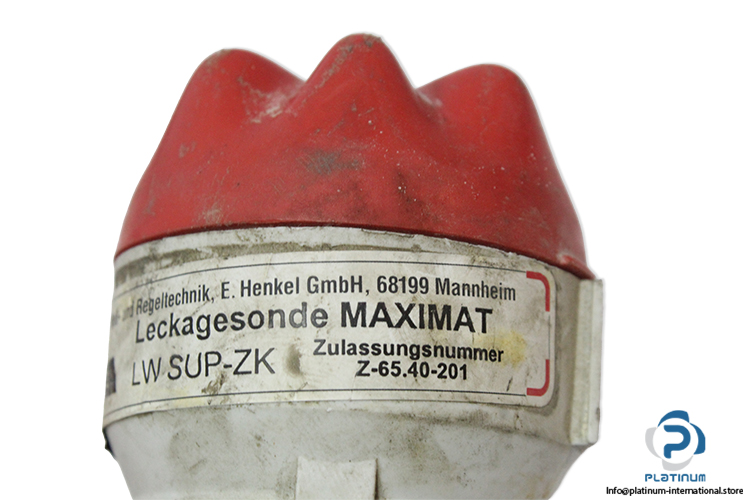

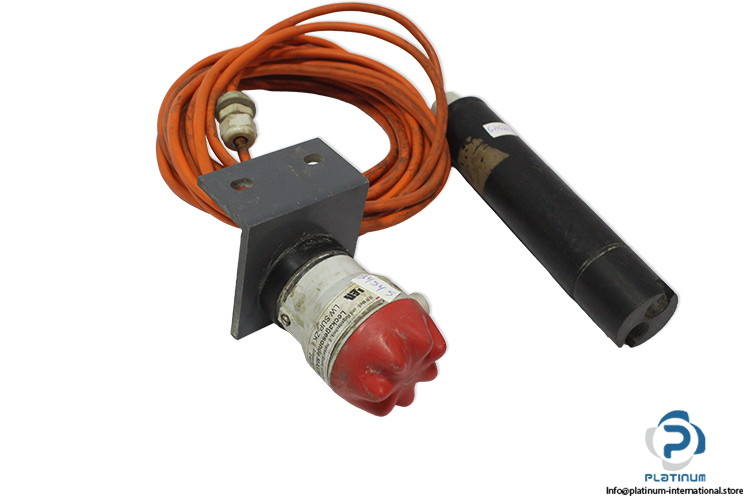

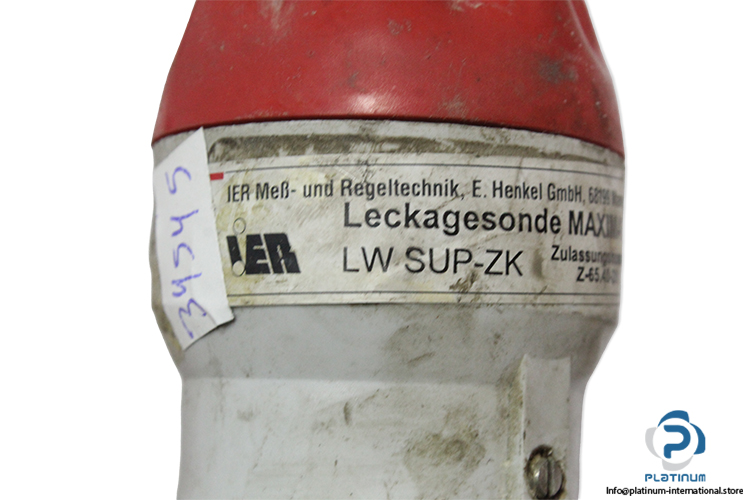

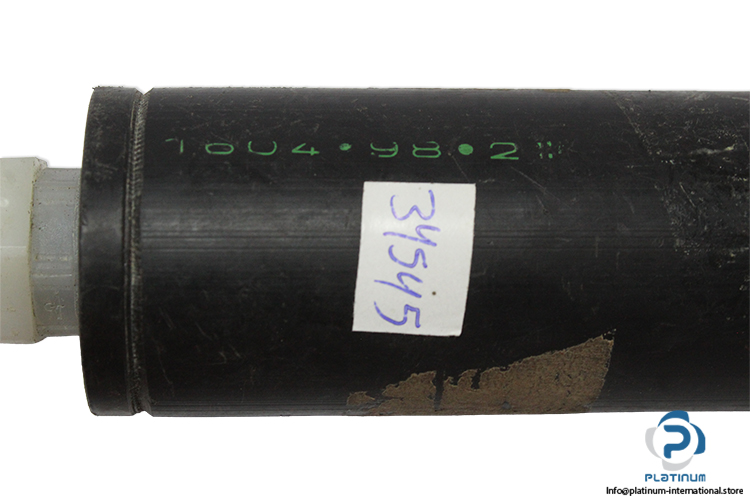

IER LWSUP-ZK Leakage Sensor
The IER LWSUPZK Leakage Sensor from the MAXIMAT series is designed for reliable liquid leakage monitoring in industrial storage and safety systems. It detects leakage conditions in liquids with defined electrical characteristics and ensures dependable alarm signaling for overfill or fault conditions.
Manufacturer: IER
Type: Leakage Sensor
Model: LW SUP-ZK
Series: MAXIMAT
Registration No.: Z-65.40-201
Application
The MAXIMAT LW SUP Leakage Sensor Is Suitable For Liquids With A Reactive Impedance Of Less Than 5 K„¦/Cm, Or A Mutual Capacitance To Earth Of Greater Than 50 Pf.
Stored Liquids May Not Tend To Precipitate Insulating Or Conductive Sediments.
Measuring Circuit:
| Supply Voltage | 12 V DC |
| Ready To Operate | > 18 To < 40 mA |
| Overfill Alarm | > 10 To < 18 mA |
| Broken Cable | < 7 mA |
| Short-Circuit | > 40 To < 110 mA |
| Terminal Length | 119 mm |
| Terminal Diameter | 55 mm |
| Sensor Length | 190 mm |
| Sensor Diameter | 40 mm |
| Connector Cable, Sensor To Terminal Housing | TPK Cable, 2 Each 0.5 mm², Shielded, 6 m Long |
| Protection Class | IP65 |
| Operating Temperature | -20 / 60 °C |
