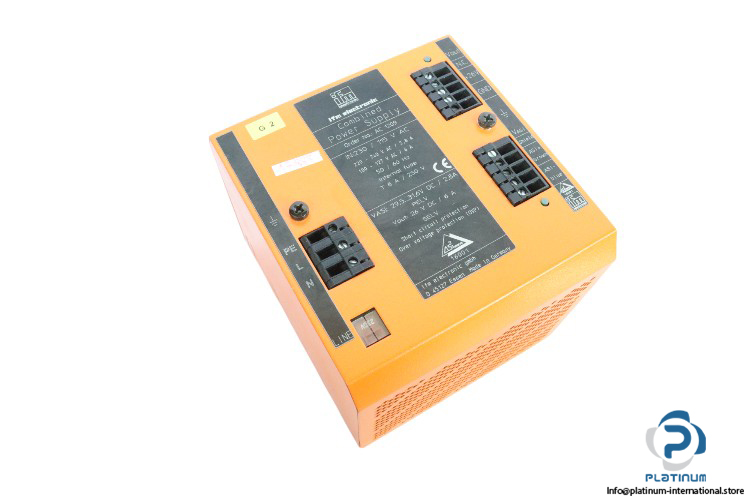

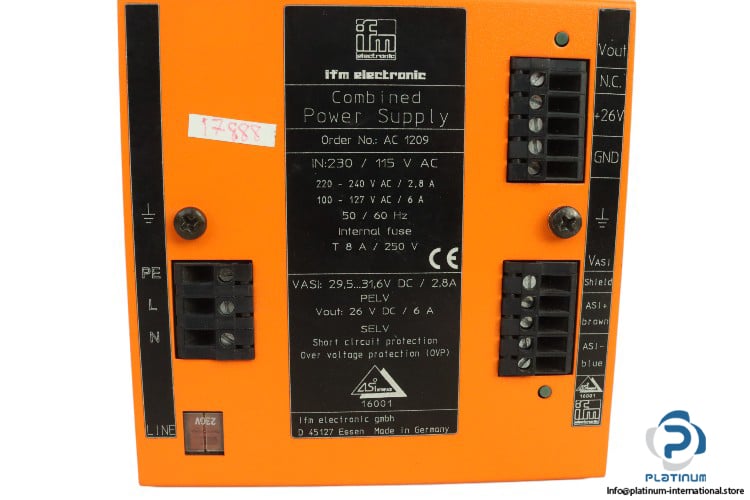

IFM AC 1209 AS-Interface Power Supply

IFM AC 1209 As-Interface Power Supply

The IFM AC 1209 As-Interface Power Supply is a high-performance power supply designed to provide stable power to industrial automation systems. With a wide voltage range and reliable current output, this power supply is perfect for systems requiring a stable 29.5 to 31.6 V output for AS-i devices. Its durable aluminum housing and IP20 protection make it a robust choice for industrial applications.

• Manufacturer: IFM
• Type: As-Interface Power Supply
• Model: AC 1209

Technical Specifications:

• Nominal Voltage: 110 / 230 V AC
• Nominal Frequency AC: 47…63 Hz
• Input Voltage Range: 88…132 / 184…264 V AC
• Max. Power-On Delay Time: 350 ms
• Output Voltage Tolerance: 2%
• Output Voltage AS-i: 29.5…31.6 V
• Max. Output Current at Min. Output Voltage: 6A
• Number of Output Circuits: 1
• Output Current AS-i: 2.8 A
• Max. Residual Ripple: 50 mV
• Connection: Terminals: …2.5 mm²
• Function: 2 x LED, green
• Material: Aluminum
• Degree of Protection: IP20
• Ambient Temperature: -10…60°C
• Dimensions: 134 x 120 x 118.5 mm

The IFM AC 1209 As-Interface Power Supply ensures reliable operation with a 2% output voltage tolerance, minimal ripple, and robust protection features. Its compact size and durable aluminum housing make it suitable for various industrial environments where stability and performance are essential.
