IFM AC 2005 AS-Interface Module

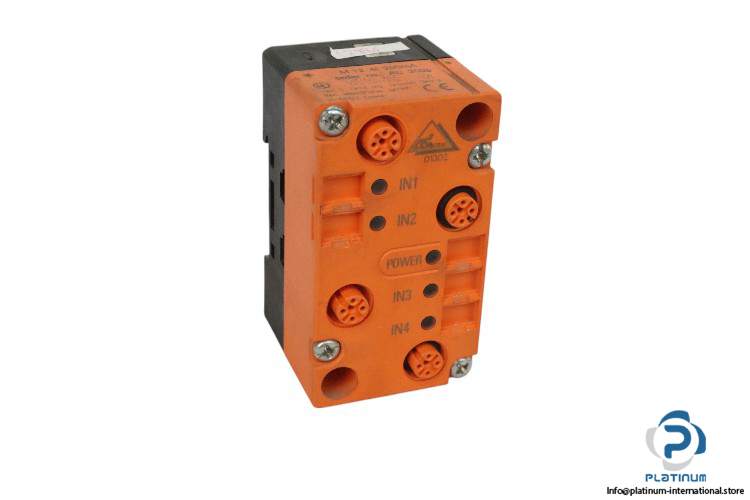

ifm AC 2005 As-Interface Module

The ifm AC 2005 As-Interface Module is a high-quality industrial module designed for seamless integration with automation systems. This module operates with a voltage range of 26.5 to 31.6 V DC and features 4 digital inputs with a PNP input circuit. The power supply input ranges from 20 to 30V, and the module is equipped with an M12 connector for reliable and secure connections. With an IP67 rating, the AC 2005 is protected against dust and water, making it suitable for demanding industrial environments. The module also boasts a wide operating temperature range of -25 to 85°C, ensuring reliable performance in various conditions.

• Manufacturer: ifm
• Type: As-Interface Module
• Model: AC 2005

Technical Specifications:

• Operating Voltage: 26.5 / 31.6 V DC
• Current Consumption: 235 mA
• Number of Digital Inputs: 4
• Input Circuit of Digital Inputs: PNP
• Power Supply Input: 20 / 30V
• Max. Total Current Rating of Inputs: 200 mA
• Connector: M12
• Housing: Rectangular
• Degree of Protection: IP67
• Materials: PBT
• Ambient Temperature: -25 / 85°C
• Dimensions: 80 x 45 x 27 mm

The ifm AC 2005 As-Interface Module is built to meet the demands of industrial applications, providing efficient input management with robust protection and reliable performance in harsh environments.
