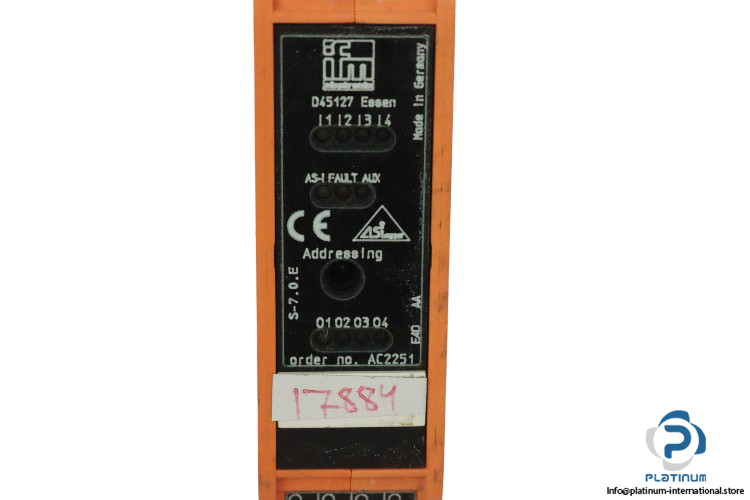

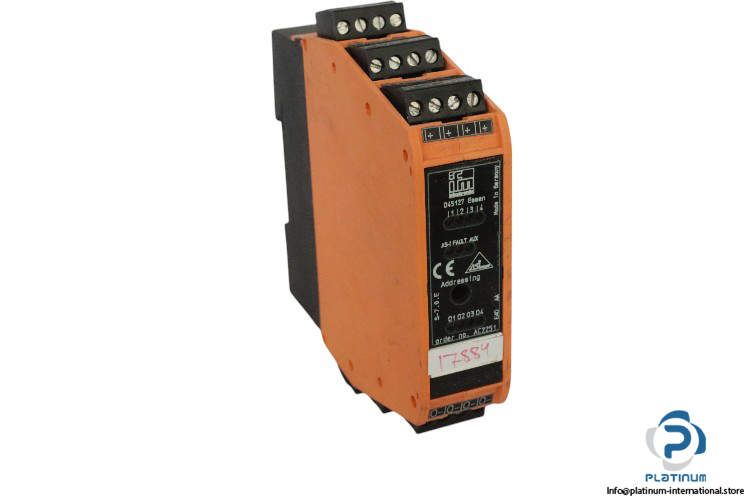

IFM AC2251 AS-Interface Control Cabinet Module

Ifm As-Interface Control Cabinet Module AC2251

Manufacturer: Ifm

Type: As-Interface Control Cabinet Module

Model: AC2251

The Ifm As-Interface Control Cabinet Module AC2251 is a high-quality control module designed for installation in control cabinets. It offers reliable AS-i connectivity and robust performance in industrial automation systems. With versatile power supply options and multiple digital inputs and outputs, this module ensures seamless integration on DIN rail mounting for efficient control and monitoring.

Technical Specifications

• Operating Voltage: 26.5…31.6 V DC
• Max. Current Consumption from AS-i: 250 mA
• Additional Voltage Supply: 20…30 V DC
• Max. Current Consumption from Additional Supply: 4000 mA
• Application: Installation in control cabinets
• Number of Digital Inputs: 4
• Number of Digital Outputs: 4
• Input Circuit of Digital Inputs: PNP
• Power Supply: 18…30 V DC
• Max. Total Current Rating of Inputs: 200 mA
• Pollution Degree: 2
• Housing: Housing for DIN rail mounting
• Type of Mounting: Mounting on DIN rail
• Degree of Protection: IP 20
• Ambient Temperature: -25…70°C
• Dimensions (HxWxD): 93 x 25.4 x 108 mm

This control cabinet module is engineered to deliver reliable performance and seamless integration, ensuring efficient communication within automation systems while maintaining robust durability even in challenging industrial environments.
