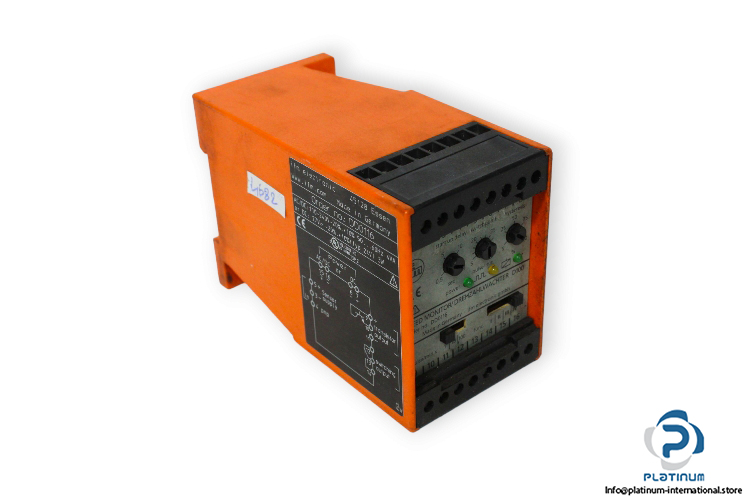

IFM DD 0116 Evaluation Unit FOR Speed Monitoring

Manufacture: Ifm
Type: Evaluation unit for speed monitoring
Series: D 100

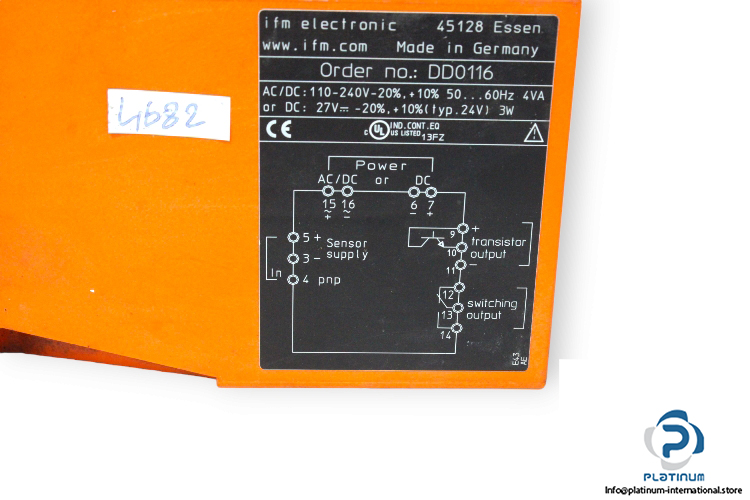

Order No.: DD 0116

Application: universal evaluation of pulse sequences with regard to overspeed and under speed; rotational speed monitoring
Power supply: 110 … 240 V AC/DC,27 V DC (typ. 24 V DC)
Power: 4 VA/3W
Frequency: 50 … 60 Hz
Number of digital outputs (DO): 1
Number of relay outputs: 1
Setting range: 5 … 5000 Imp/min

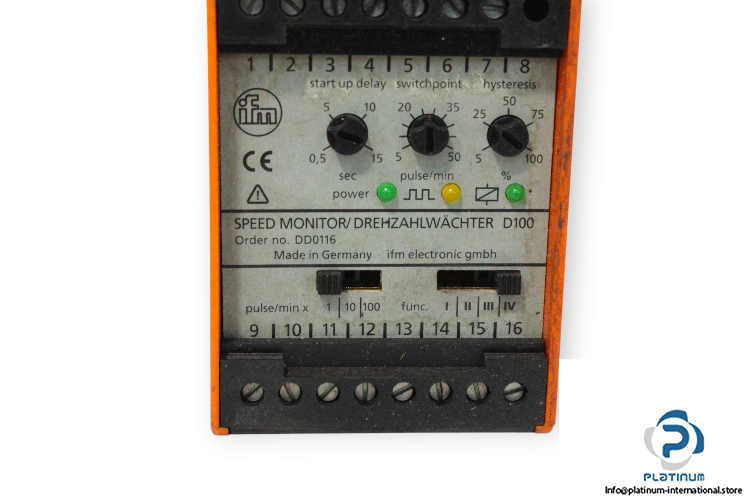

Response times Start-up delay: 0.5 … 15s
Contact rating: 6 A, 250 V AC
Output: 1 change over contact
Connection terminals: Up to 2.5 mm 2 ; AWG 14
Mounting: DIN rail mounting
Electrical signal: PNP
Ambient temperature: -20 … +70°C
Protection degree: Housing :IP 40,terminal: IP 20
Materials: plastics
Dimensions: 75 x 55 x 110 mm
