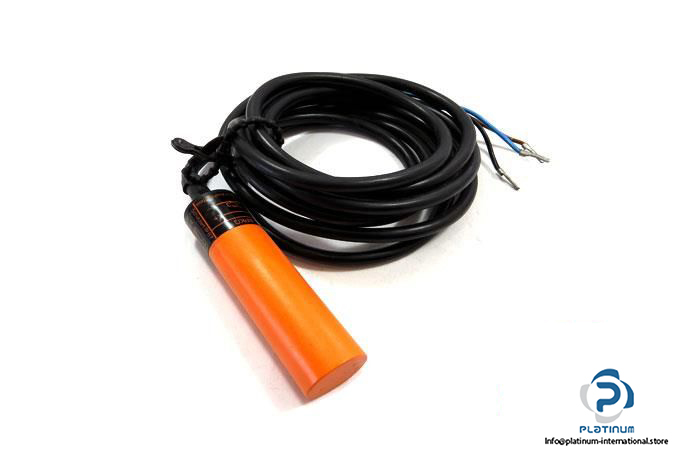

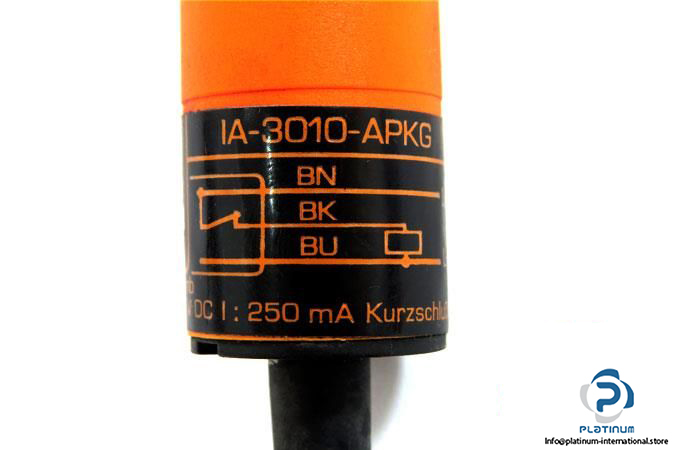

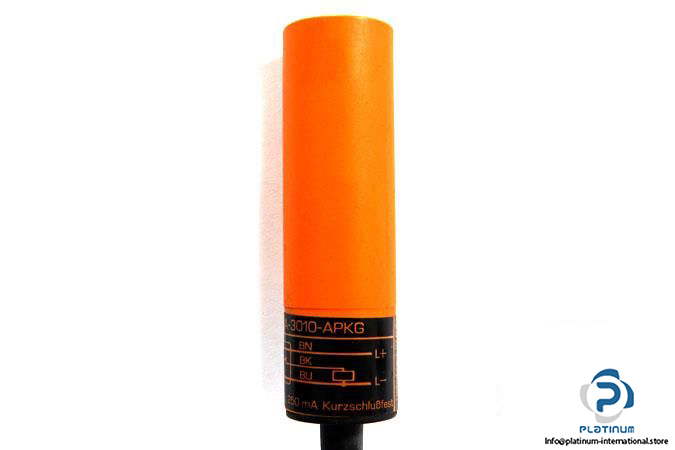

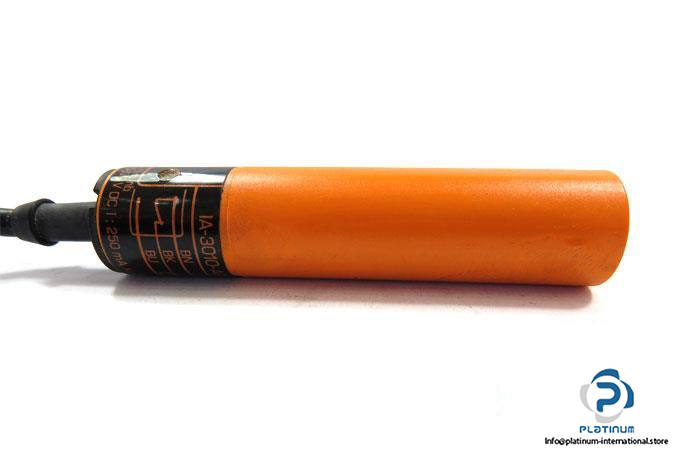

IFM IA5050 IA-3010-APKG Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IA5050

MRN: IA-3010-APKG

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 250 mA DC

Switching frequency: 300 Hz

Electrical Design: PNP

Output Function: Normally closed

Connector type, length: PVC cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing: Tubular

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 20 , 77 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 127.2 g
