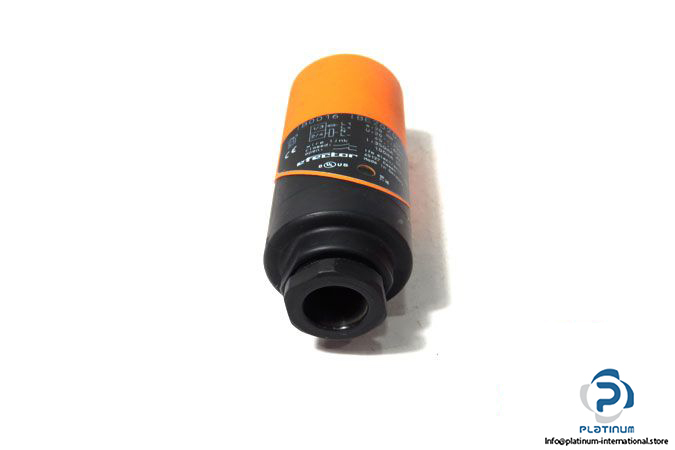

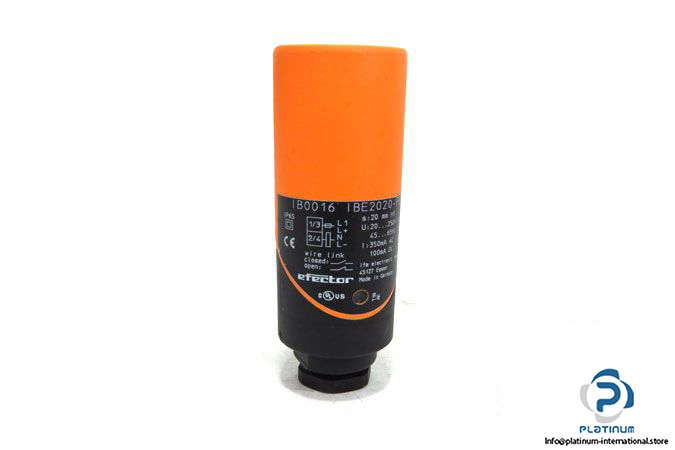

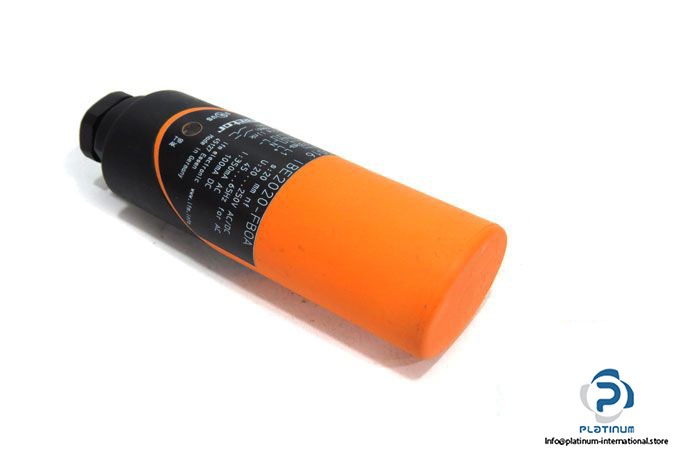

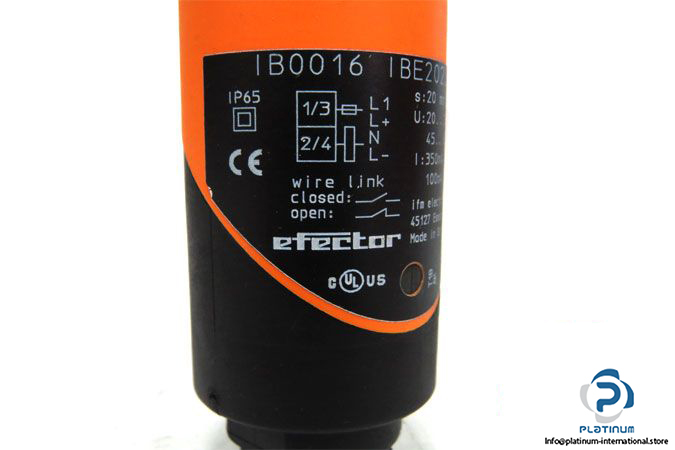

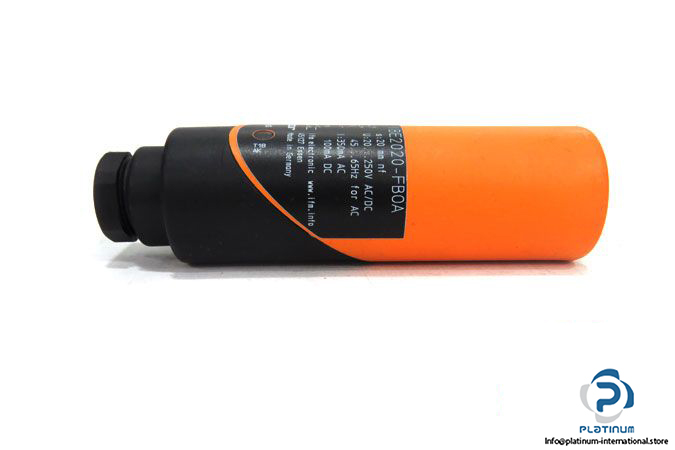

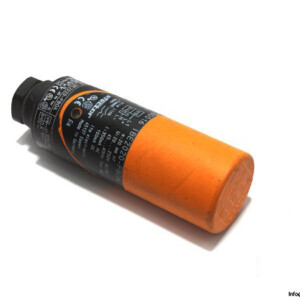

IFM IB0016 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IB0016

MRN: IBE2020-FBOA

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 20 … 250 V AC/DC

Switching output current: 350 mA AC ,100 mA DC

Switching frequency (AC, DC): 25 ,50 Hz

Output Function: Normally open/Normally closed (Selectable)

Connector type: Cable gland: M20 X 1.5

Protection Class: II

Enclosure rating: IP65

Housing: Cylindrical

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 34, 98 mm

Material: PBT; end cap: PC

Mounting: Non-flush mountable
