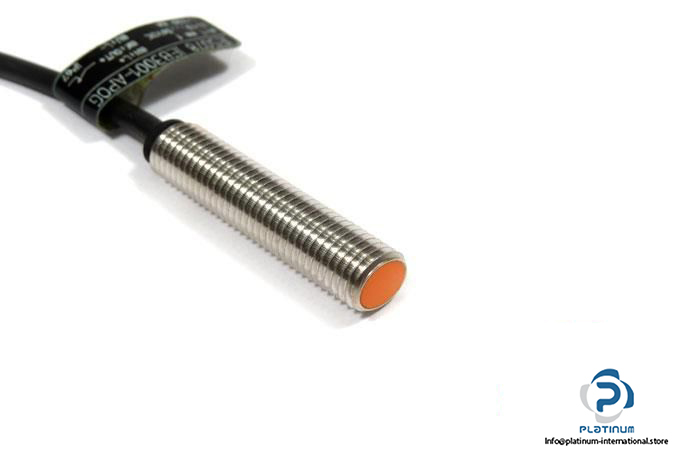

IFM IE5078 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

PART NO.: IE5078

MRN: IEB3001-APOG

Sensing Range: 1 mm

Real Sensing Range: 1 ± 10% mm

Operating Distance: 0 … 0.8 mm

Operating Voltage: 10 … 36 V DC

Switching frequency: 750 Hz

Switching output current: 200 mA DC

Electrical design: PNP

Output Function: Normally closed

Connector type, length: PVC Cable, 2 m

Protection Class: III

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 8, 35mm

Material: Brass white bronze coated; PBT

Mounting: Flush mountable

Weight: 51.1 g

Condition: New
