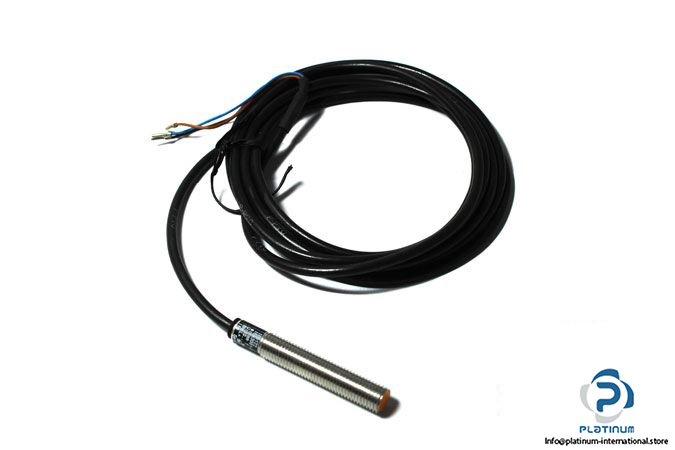

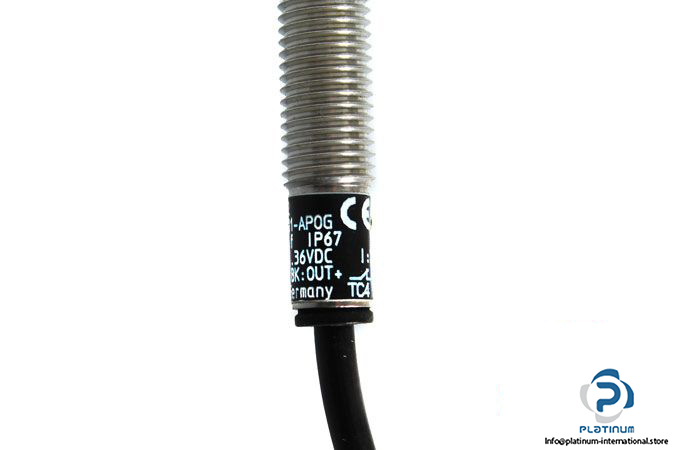

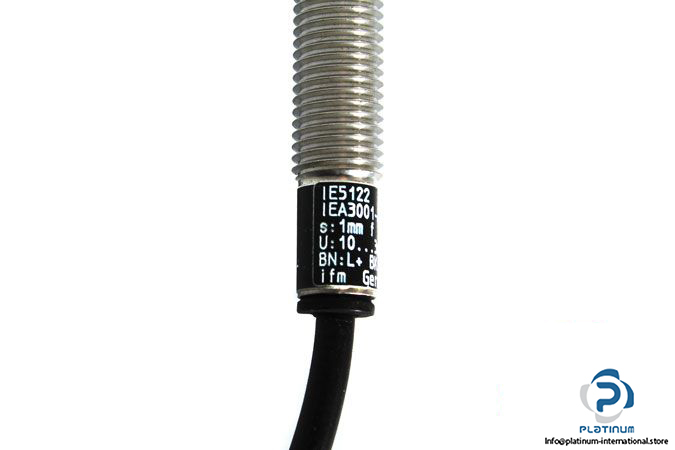

IFM IE5122 Inductive Proximity Switch

Manufacturer: IFM

Type: Inductive Proximity Switch

Model: IE5122

MRN: IEA3001-APOG

Sensing Range: 1 mm

Operating Voltage: 10 … 36 V DC

Operating Current: 15 mA

Switching Output: Normally Closed

Electrical Design: PNP

Mounting: Flush Mountable

Switching Frequency: 750 Hz

Protection Class: III

Protection: IP67

Material: Brass White Bronze Coated; PBT

Diameter, Housing Length: 8, 50 mm

Ambient Temperature: -25 … 80 °C

Housing: Threaded Type

Weight: 0.09 kg
