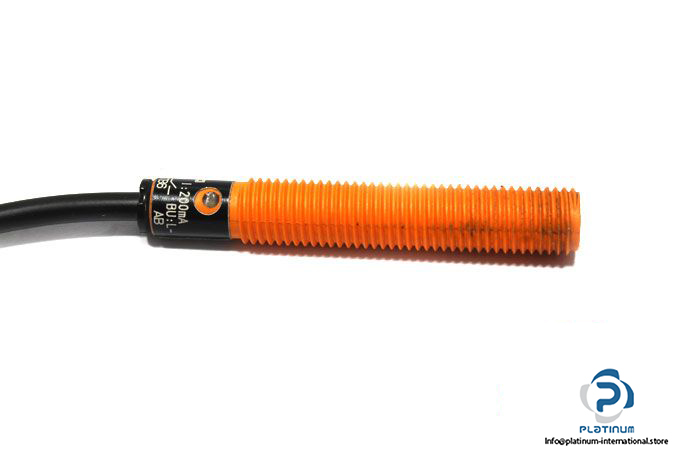

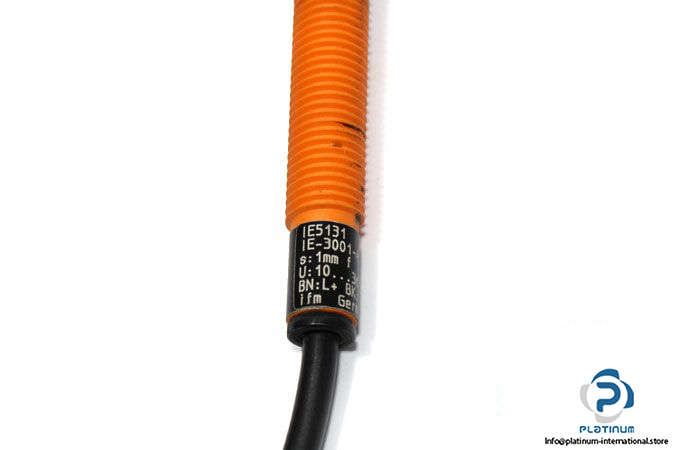

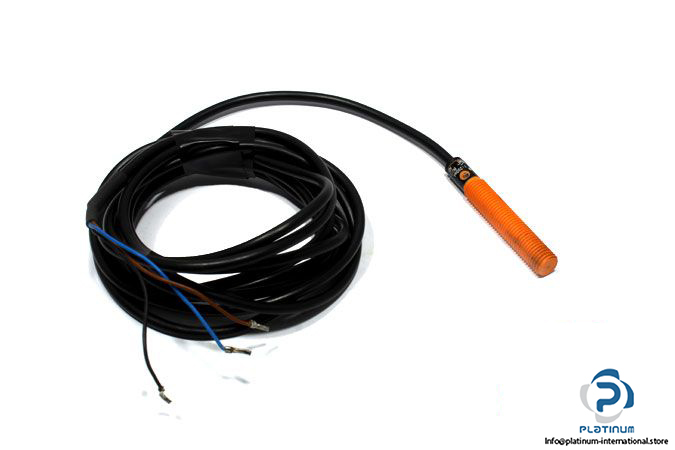

IFM IE5131 IE-3001-ANOG Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IE5131

MRN:  IE-3001-ANOG

Sensing Range: 1 mm

Real Sensing Range: 1 ± 10 % mm

Operating Distance: 0 … 0.8 mm

Operating Voltage:  (10 …36 V DC)

Voltage Drop: 1 V DC

Switching output current: 200 mA DC

Current consumption: 15 mA

Switching frequency: 1000 Hz DC

Electrical Design: NPN

Output Function: Normally open

Connector type, length: Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing:  Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 8, 50 mm

Material: PBT

Mounting: Flush mountable

Weight: 45 g
