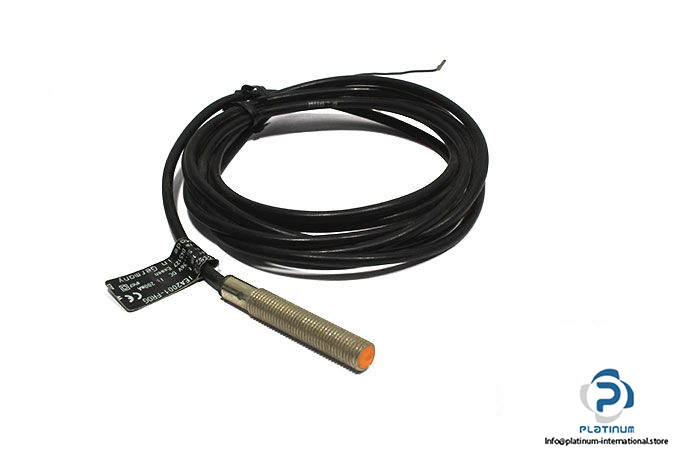

IFM IE5222 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No.: IE5222

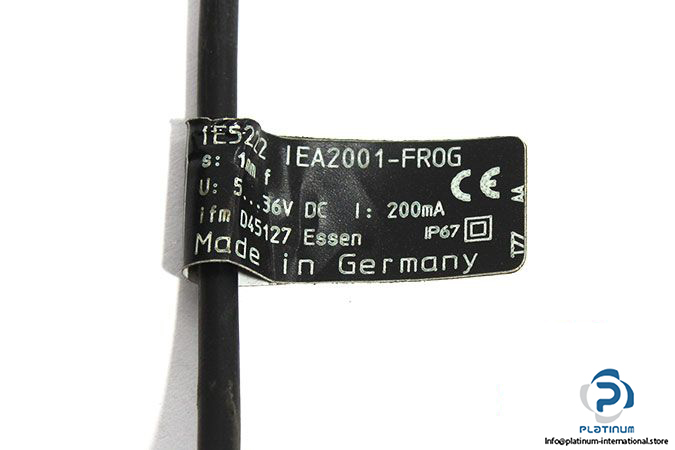

MRN: IEA2001-FROG

Sensing Range: 1 mm

Operating Distance: 0 … 0.81 mm

Operating Voltage: 5 … 36 V DC

Voltage Drop Max.: 4.6 V

Switching Current: 200 mA

Switching Frequency DC: 2000 Hz

Minimum Load Current: 4 mA

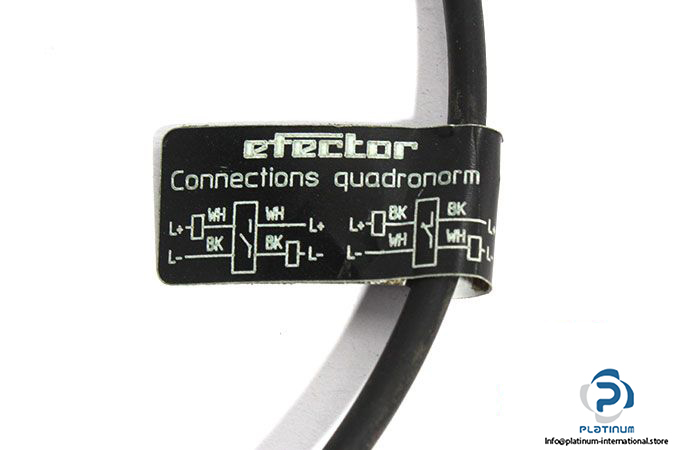

Electrical Design: PNP/NPN

Output Function: Normally Open and Normally Closed; (Selectable)

Housing:  Threaded Type

Protection Class: III

Enclosure Rating: IP67

Electrical Connection: Cable: 2 m, 2 Wire

Diameter, Housing Length: 8, 50 mm

Ambient Temperature: -25 … 80 °C

Material: Brass White Bronze Coated; Sensing Face: PBT; Lock Nuts: Brass

Mounting: Flush Mountable

Supplied Accessories: Lock Nuts: 2

Weight: 0.035 kg
