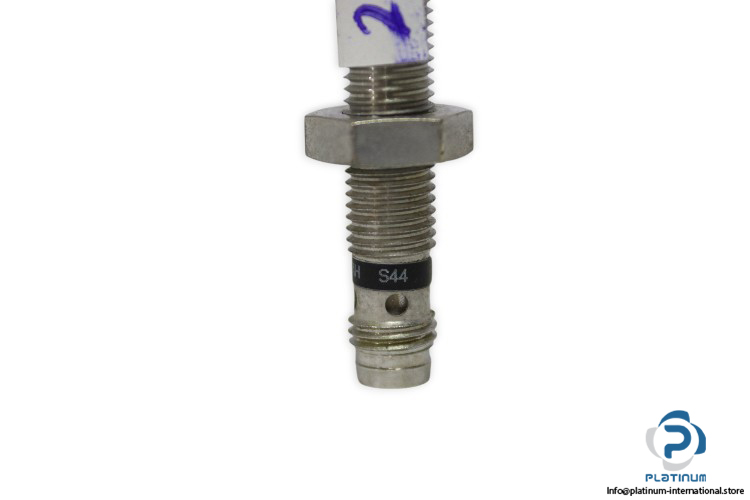

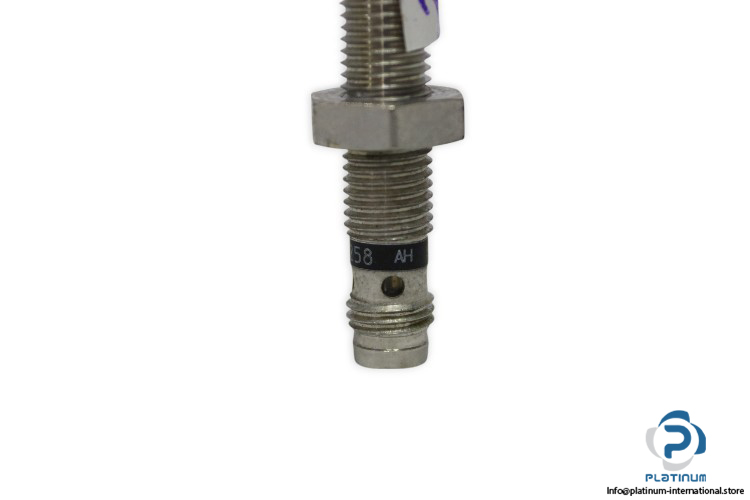

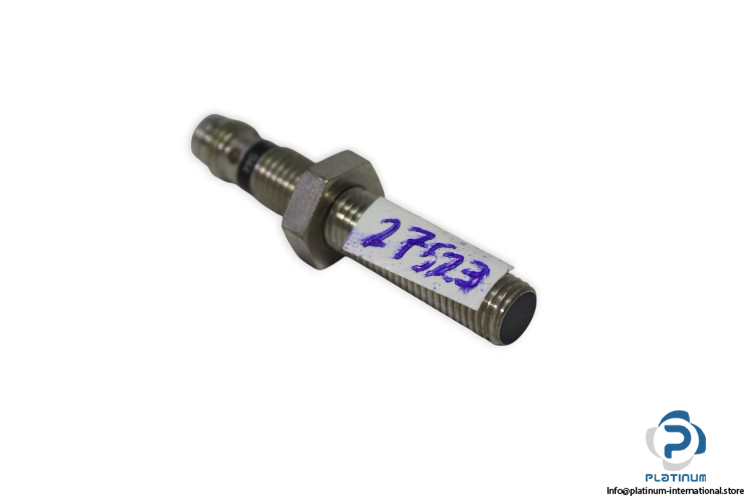

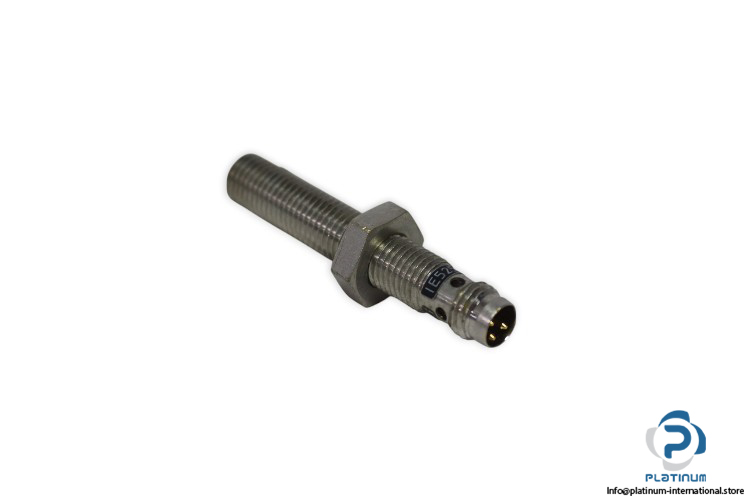

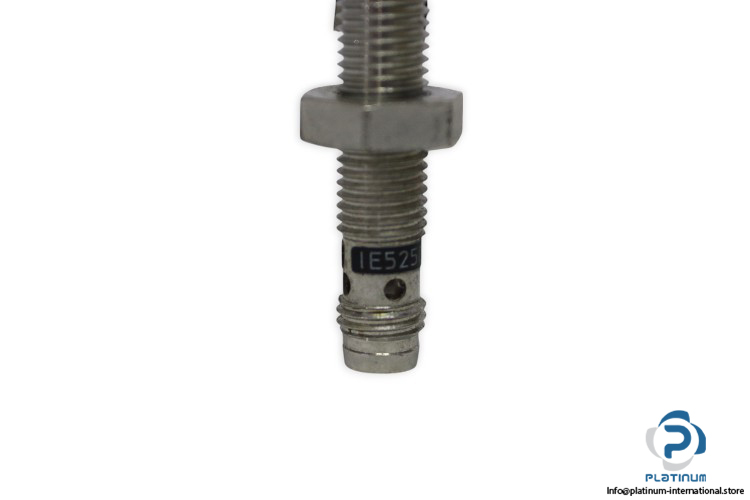

IFM IE5258 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Model: IE5258

Part No.: AH S44

The IFM inductive sensor IE5258 is designed for high-performance proximity detection in industrial environments. With an increased sensing range and compact threaded housing, it ensures precise operation even in demanding conditions. Ideal for applications requiring rapid switching and reliable feedback, this sensor supports PNP output with a normally closed function. Built with rugged housing and certified protection against dust and moisture, it’s well-suited for harsh automation systems.

• Operating Voltage: 10…30 V DC
• Current Consumption: 10 mA
• Special Feature: Increased Sensing Range
• Electrical Design: PNP
• Output Function: Normally Closed
• Sensing Range: 1 mm
• Housing: Threaded Type
• Max. Voltage Drop (Switching Output): 2.5 V DC
• Permanent Current Rating: 100 mA
• Switching Frequency: 2000 Hz
• Dimensions: M8 x 1 / L = 50 mm
• Degree of Protection: IP65, IP67
• Ambient Temperature: -25…80 °C
