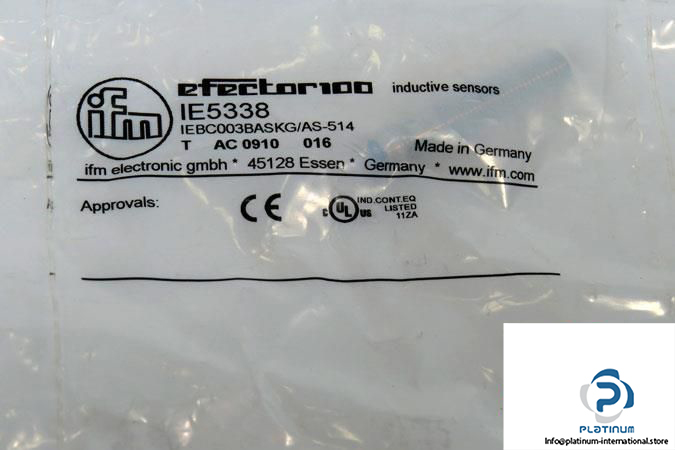

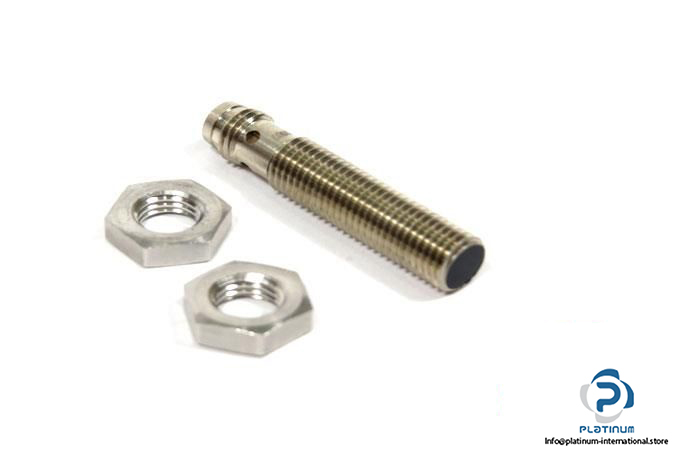

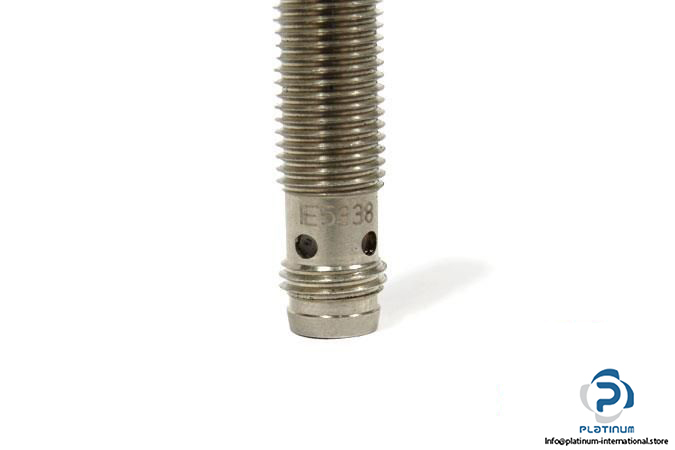

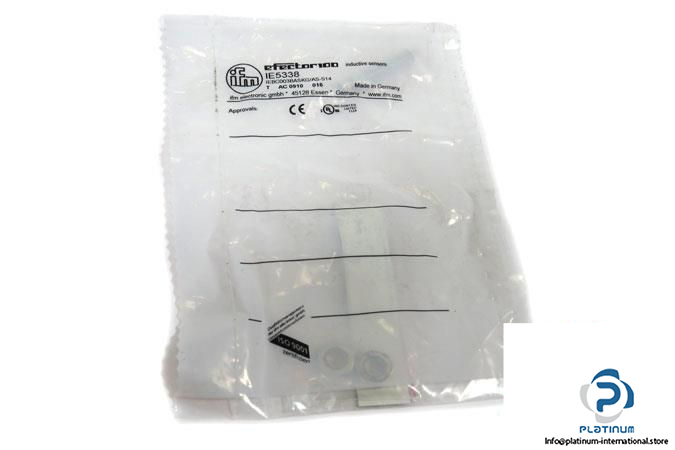

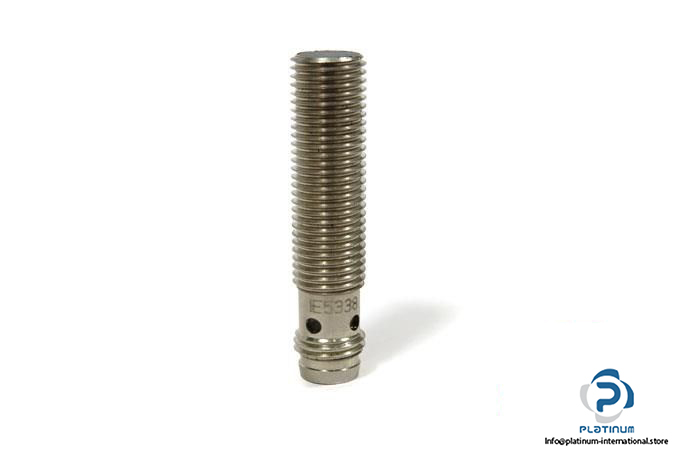

IFM IE5338 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IE5338

MRN: IEBC003BASKG/AS

Sensing Range: 3 mm

Operating Distance: 0 … 2.4 mm

Operating Voltage: 10 … 30 V DC

Switching output current: 100 mA DC

Switching frequency: 800 Hz

Output Function: Normally open

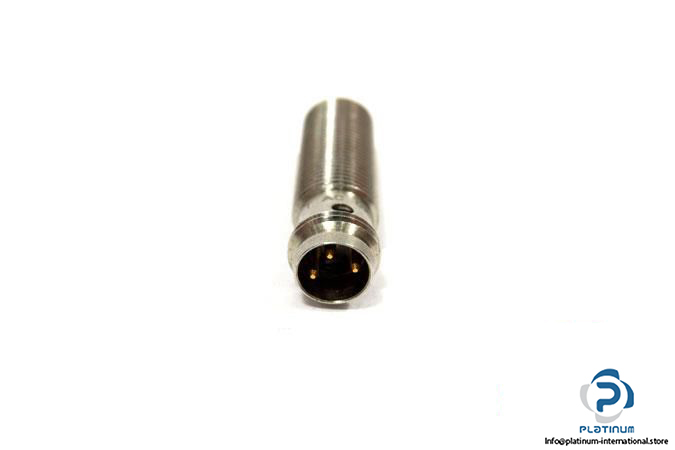

Connector type: M8 Connector

Protection Class: III

Enclosure rating: IP65, IP67

Housing: 10 … 30

Ambient Operating temperature: 0 … 60°C

Diameter, Housing length: 8, 40 mm

Material: brass special coating; sensing face: LCP orange

Mounting: Flush mountable

Weight: 16.7g

Condition: New
