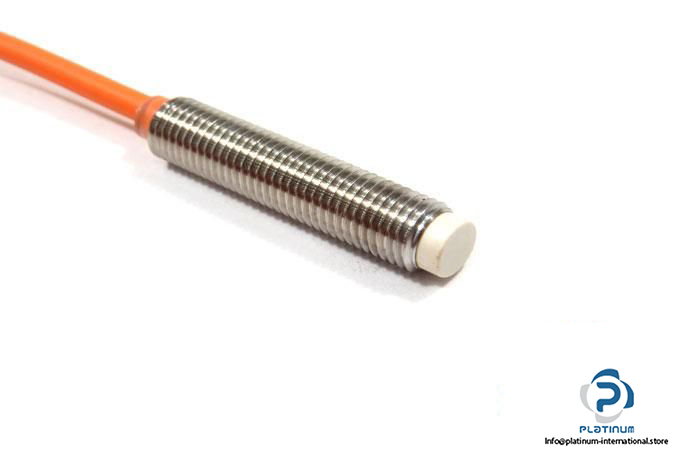

IFM IE5409 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IE5409

MRN: IEB3003-BPKG/US

Sensing Range: 3 mm

Real Sensing Range: 3 ± 10% mm

Operating Distance: 0 … 2.4 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 100 mA DC

Electrical Design: PNP

Output Function: Normally open

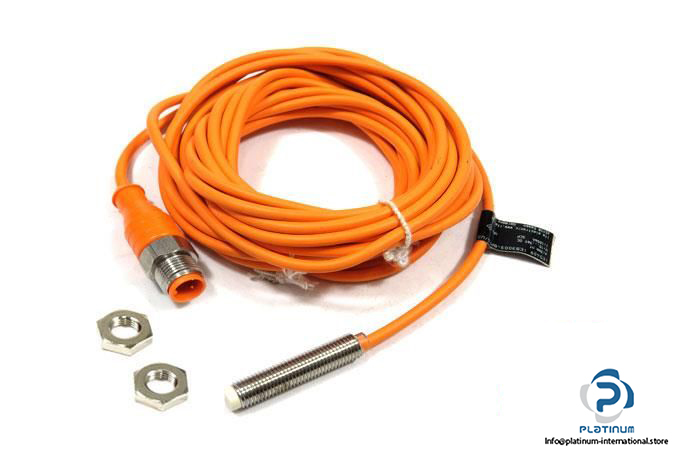

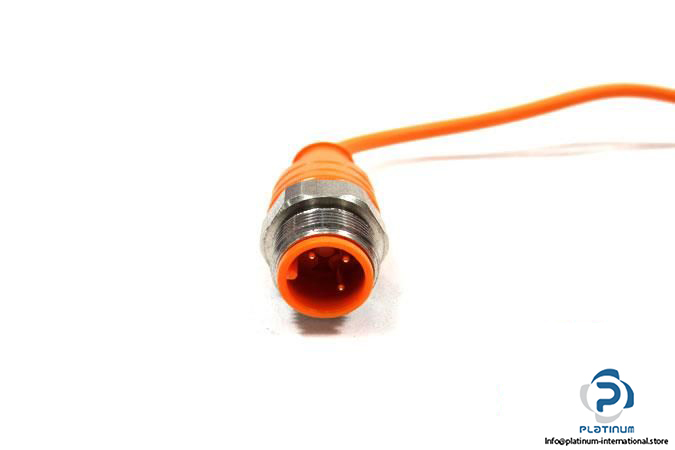

Connector type: Cable; 6m , with 3-pin connector

Protection Class: III

Enclosure rating: IP67

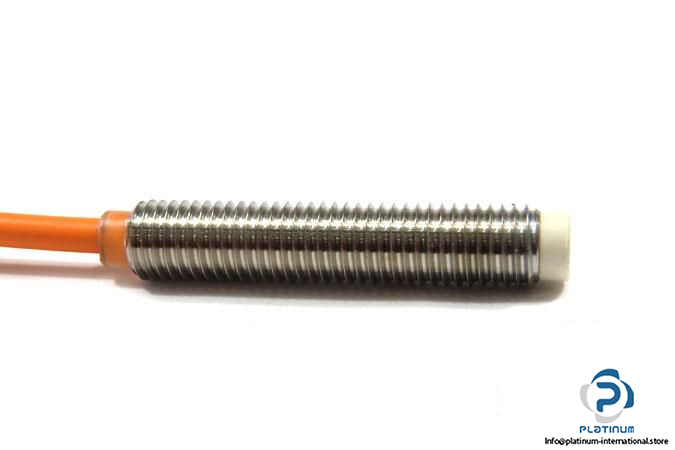

Housing: Threaded type

Diameter, Housing length: 8 , 40 mm

Material: Stainless steel

Condition: New
