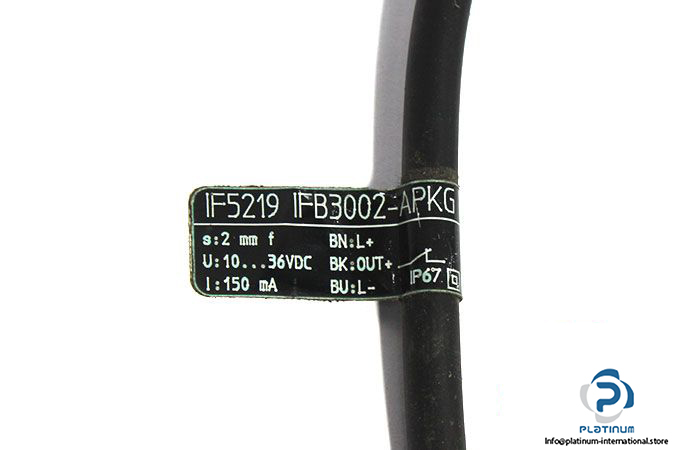

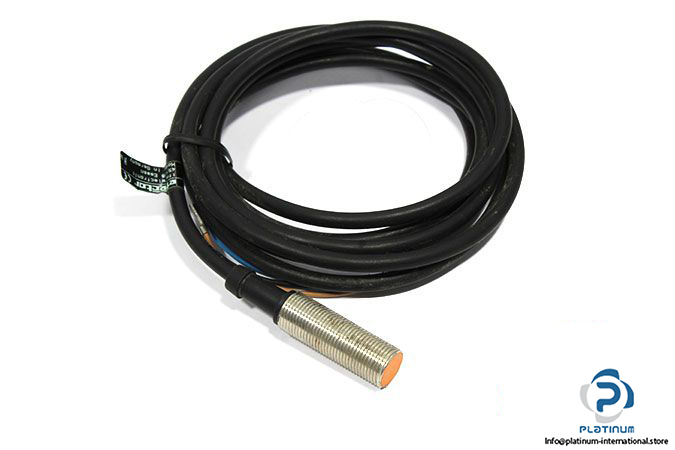

IFM IF5219 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No.: IF5219

MRN: IFB3002-APKG

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10 %

Operating Distance: 0 … 1.6 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop Max.: 2.5 V

Switching Current: 150 mA

Switching Frequency DC: 1500 Hz

Current Consumption: 15 mA

Electrical Design: PNP

Output Function: Normally Closed

Housing:  Threaded Type

Protection Class: III

Enclosure Rating: IP67

Electrical Connection: Cable: 2 m, 3 Wire

Diameter, Housing Length: 12, 35 mm

Ambient Temperature: -25 … 80 °C

Material: Brass White Bronze Coated; PC

Mounting: Flush Mountable

Supplied Accessories: Lock Nuts: 2
