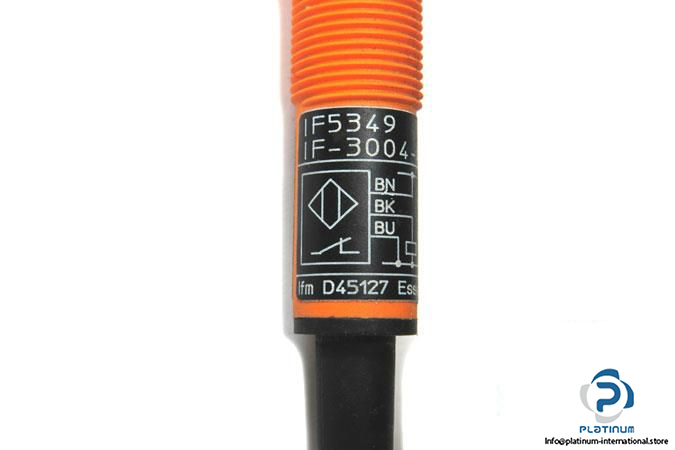

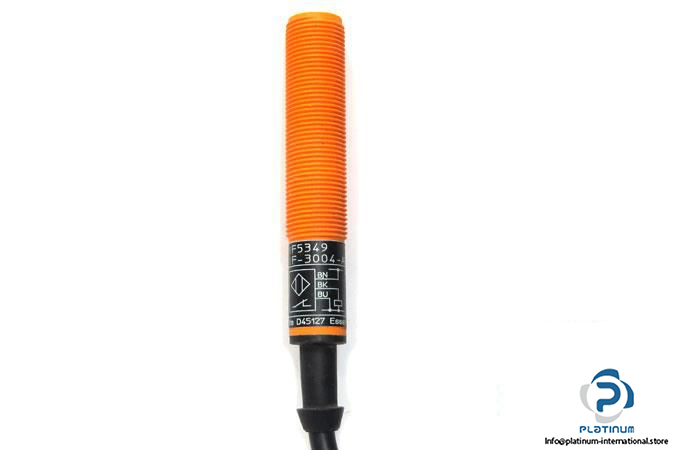

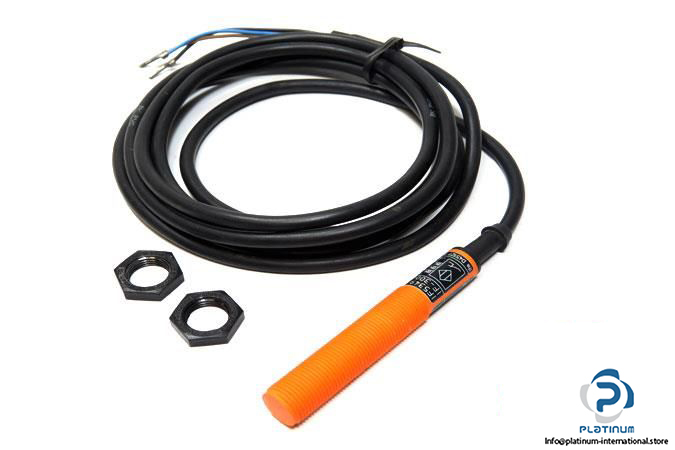

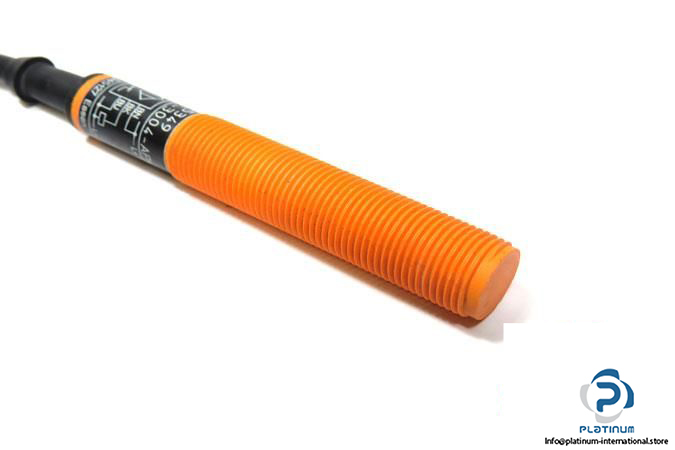

IFM IF5349 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5349

MRN: IF-3004-APKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10 % mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 250 mA DC

Switching frequency: 400 Hz DC

Electrical Design: PNP

Output Function: Normally closed

Connector type, length: PVC Cable,2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12, 71 mm

Material: PBT

Mounting: Non-flush mountable

Supplied accessories: 2 lock nuts

Weight: 87.3 g

Condition: Used
