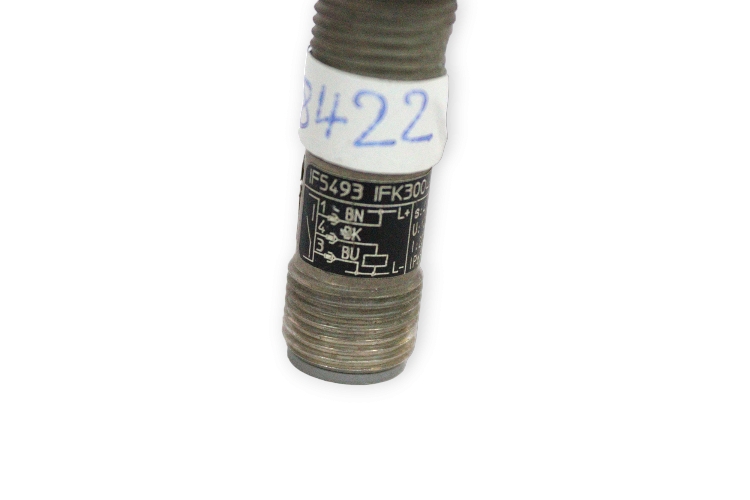

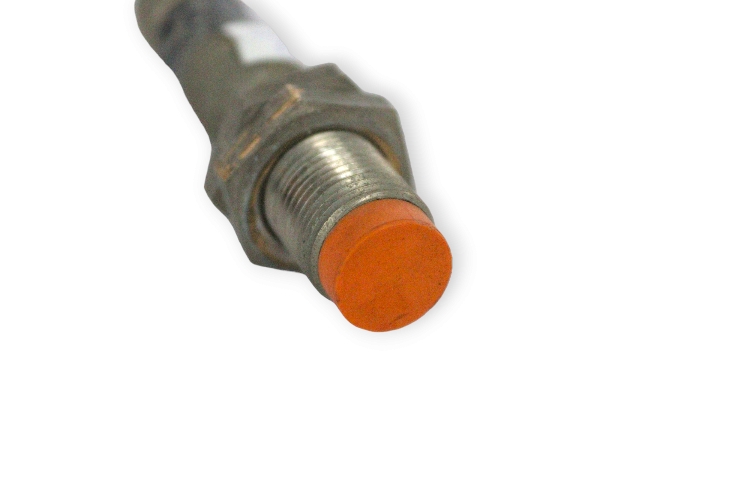

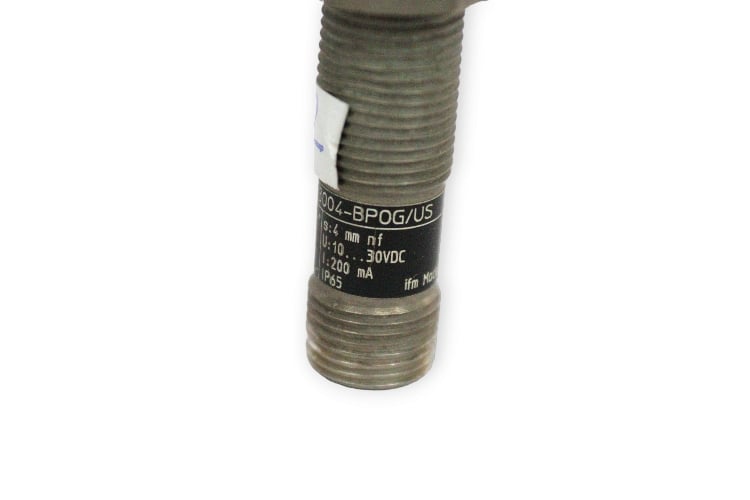

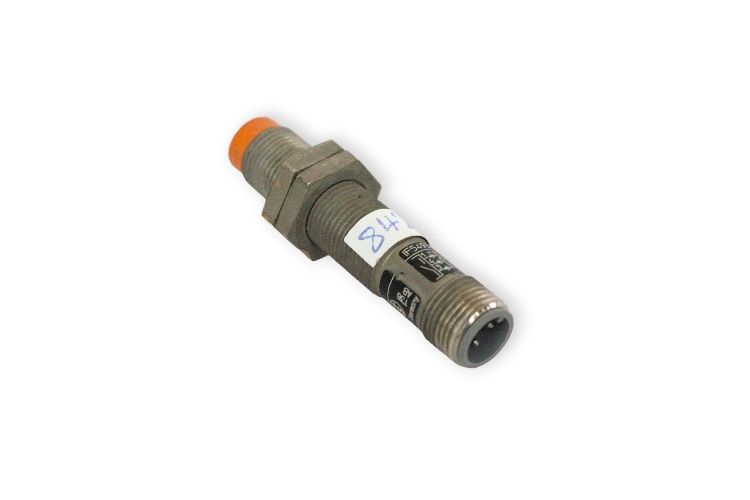

IFM IF5493 Inductive Sensor
New
In stock2 unitsReady to ship
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: IFM
Type: INDUCTIVE SENSOR
Part No.: IF5493
MRN: IFK3004-BPOG/US
Sensing range: 4 mm
Real sensing range: 4 ± 10 % mm
Operating Distance: 0 … 3.24 mm
Operating Voltage: 10 … 36 VDC
Switching output current: 200 mA DC
Current Consumption: 10 mA
Switching frequency: 300 Hz DC
Electrical Design: PNP
Output Function: Normally Open
Connection type: M12
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature: -25 … 80 °C
Diameter, Housing length: 12, 59 mm
Material: Brass white bronze coated; sensing face: PBT orange
Mounting: non-flush mountable
Supplied accessories: 2 lock nuts
Weight: 26.6 g
Condition: New
