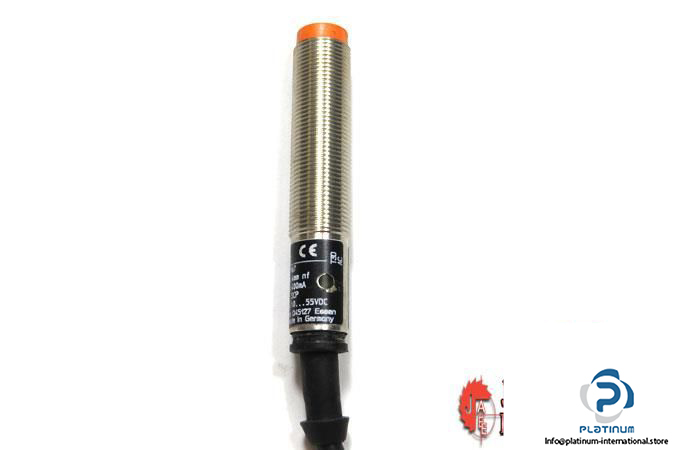

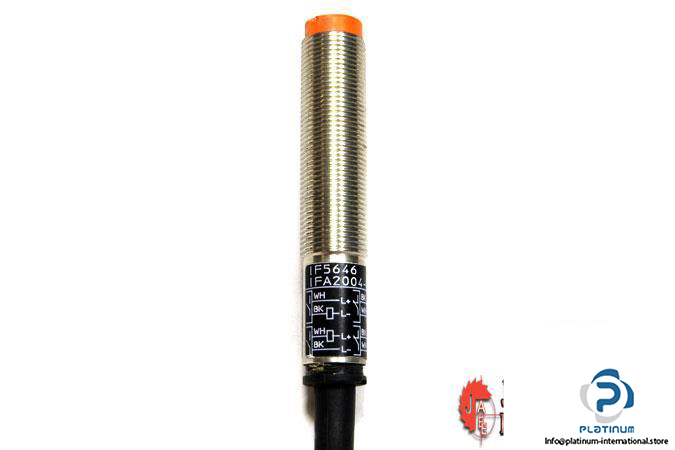

IFM IF5646 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

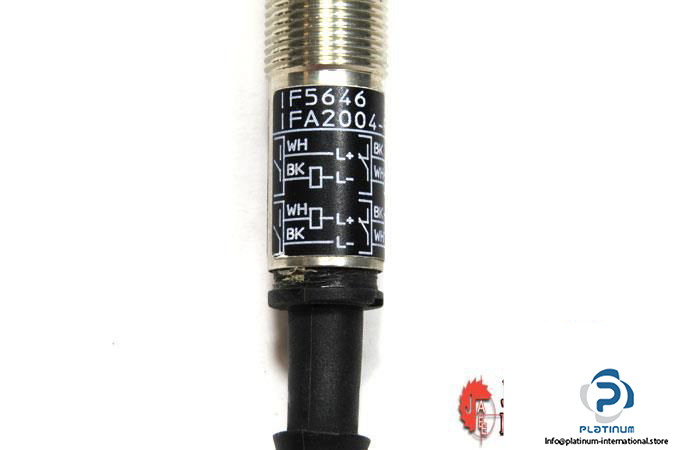

Part No.: IF5646

MRN: IFA2004-FRKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10 % mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop: 4.6  V DC

Switching output current: 400 mA DC

Load Current max.: 4 mA

Switching frequency: 1500 Hz DC

Electrical Design: PNP/NPN

Output Function: normally open / normally closed; (selectable)

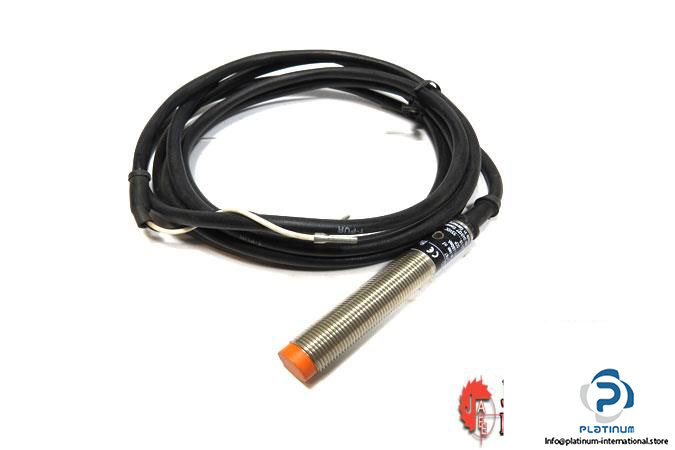

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

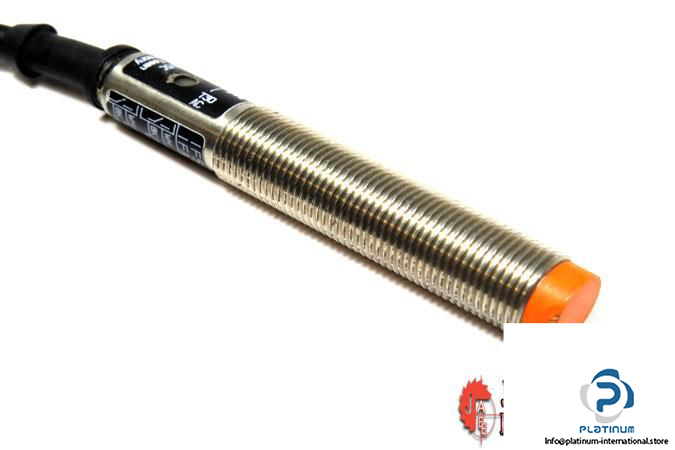

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 12, 71 mm

Material: Brass white bronze coated; sensing face: PC

Mounting: non-flush mountable

Weight: 90.7 g

Condition: Used
