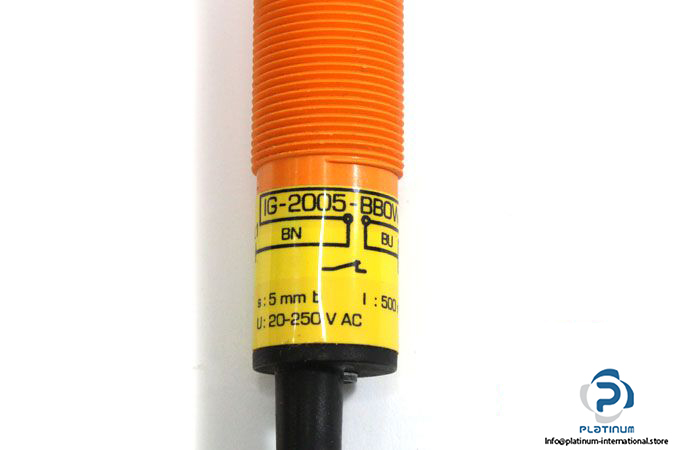

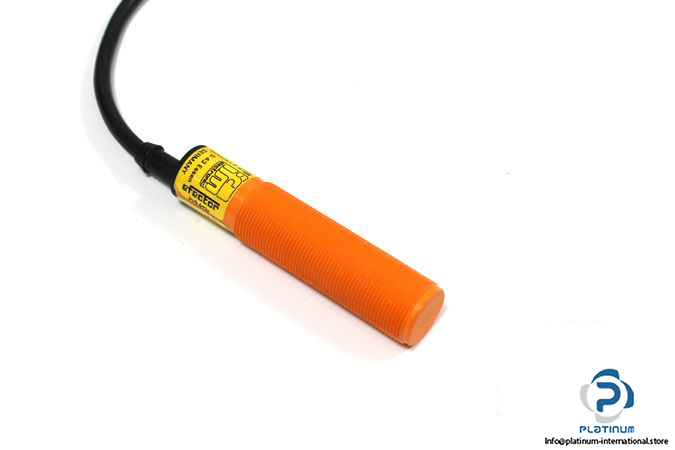

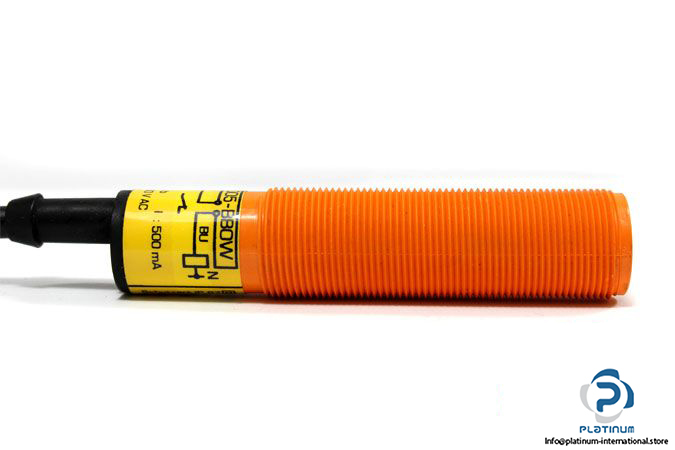

IFM IG-2005-BBOW Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IG0002

MRN: IG-2005-BBOW

Sensing Range: 5 mm

Operating distance: 0 … 4.05 mm

Operating Voltage: 20 … 250 V AC at 47 … 63 Hz

Operating Current: 500 mA

Switching Output: Normally closed

Connector Type: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 18 , 80 mm

Weight: 140 g

Material: PBT

Mounting: Flush-mountable

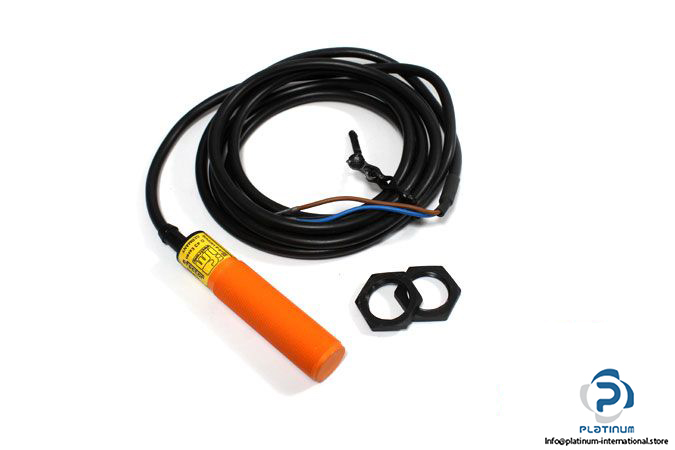

Supplied items: 2 lock nuts
