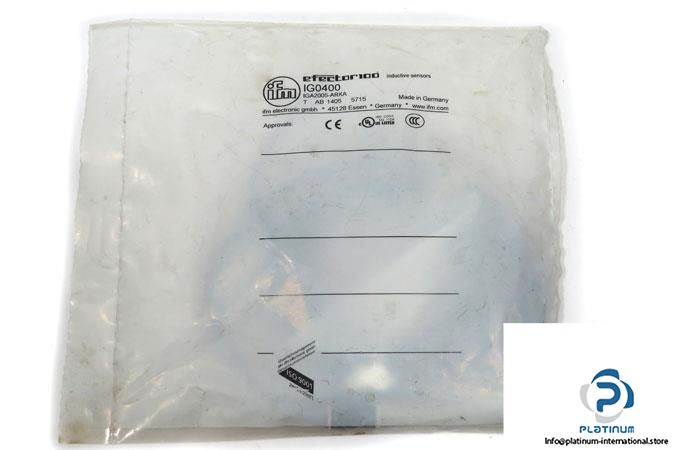

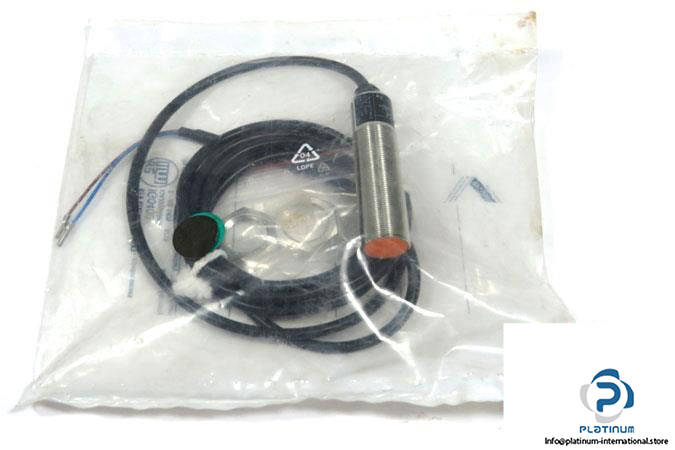

IFM IG0400 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IG0400

MRN: IGA2005-ARKA

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10% mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 75…250 AC / 20…250 DC

Switching output current (AC, DC): 100 mA AC / 100 mA DC

Switching frequency (AC, DC): 25, 50 Hz

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 18, 82 mm

Material: Brass white bronze coated; sensing face: PBT

Mounting: Flush mountable

Weight: 129 g

Condition: New
