IFM IG5397 Inductive Sensor
New
In stock11 unitsReady to ship
49,99$
Inductive Sensor
The IFM IG5397 inductive sensor provides precise metal detection with 5 mm range, PNP output, and IP67 protection for reliable use in industrial automation systems.5FlushifmIG5397IGA3005-BPKGInductiveIndustrialIP67mmmountPNPProximityRangeSensingSensorSwitchThreadedType
Used
In stock 39,99$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

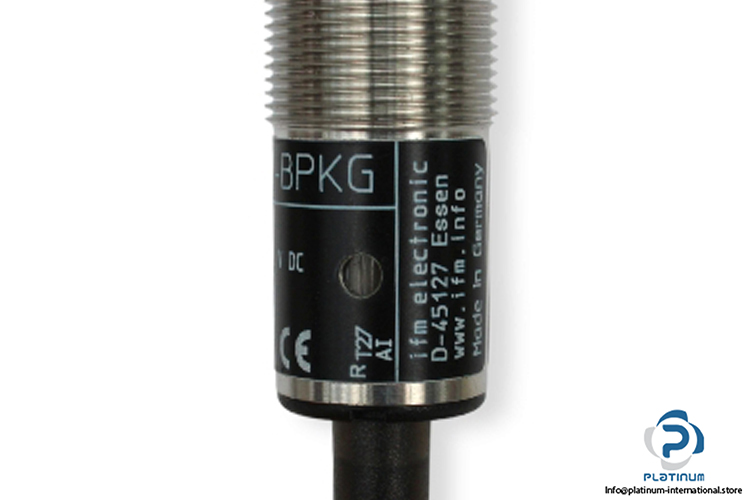

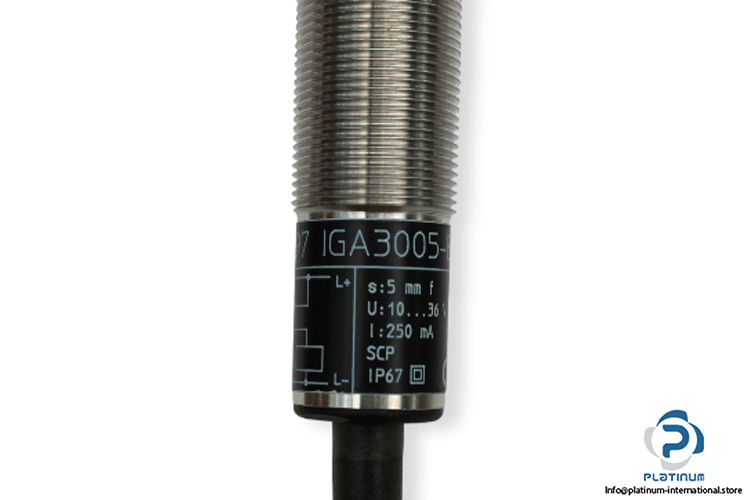

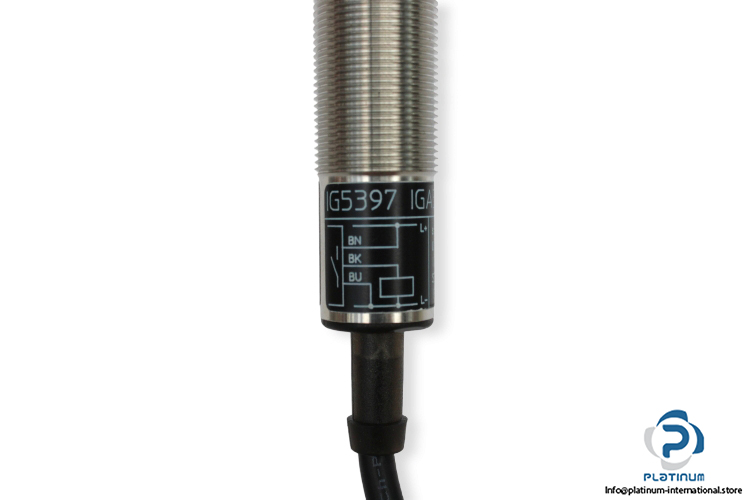

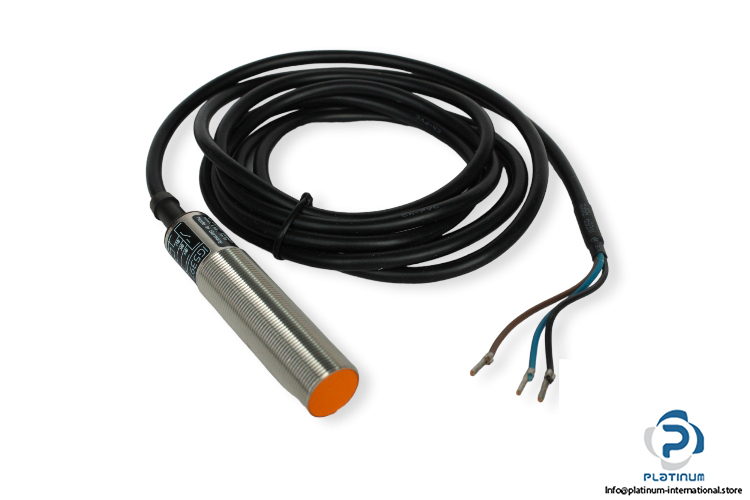

IFM IG5397 Inductive Sensor
The IFM IG5397 Inductive Sensor (MRN: IGA3005-BPKG) is a high-performance proximity sensor designed for precise and reliable detection of metallic objects. Its robust construction, IP67 protection, and wide voltage range make it suitable for demanding industrial environments.
Manufacturer: IFM
Type: Inductive Sensor
Part No.: IG5397
MRN: IGA3005-BPKG
| Sensing Range | 5 mm |
| Operating Voltage | 10 / 36 V DC |
| Voltage Drop Max. | 2.5 V DC |
| Switching Output Current | 250 mA DC |
| Current Consumption | 15 mA |
| Switching Frequency | 500 Hz DC |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Connector Type, Length | PVC Cable, 2 m |
| Protection Class | II |
| Enclosure Rating | IP67 |
| Housing | Threaded Type |
| Ambient Operating Temperature | -25 / 80 °C |
| Diameter, Length | 18, 80 mm |
| Mounting | Flush-Mountable |
| Material | Brass White Bronze Coated; Sensing Face: PC |
| Supplied Accessories | 2 Lock Nuts |
