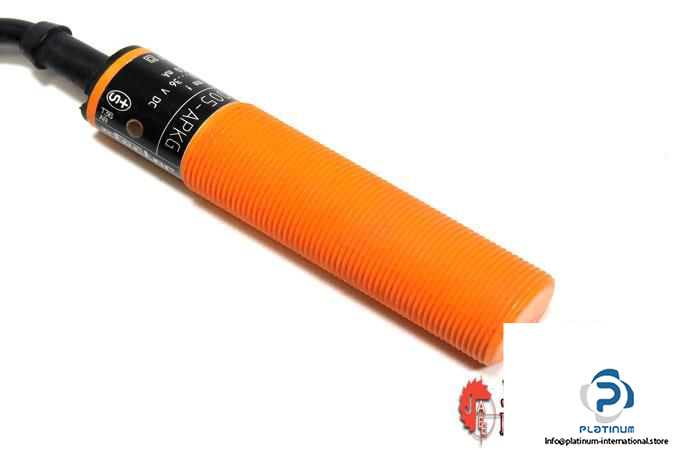

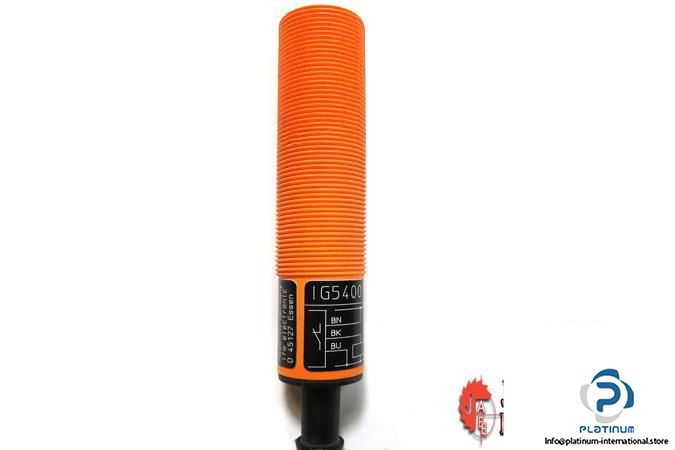

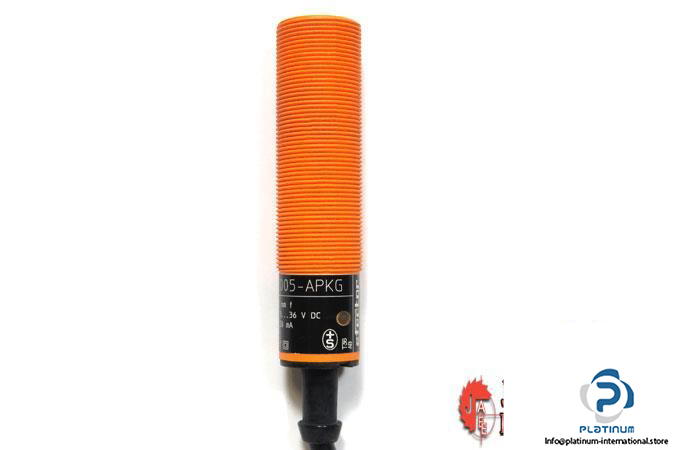

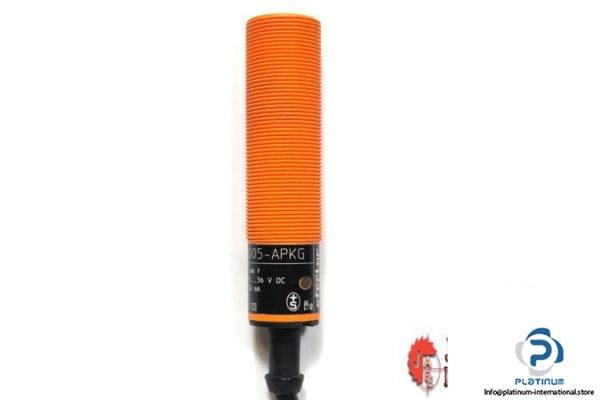

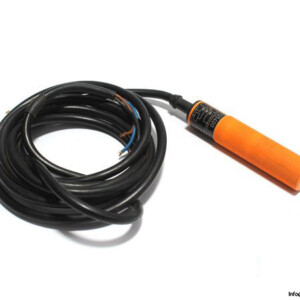

IFM IG5400 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5400

MRN: IG-3005-APKG

Sensing Range:  5 mm

Real Sensing Range: 5 ± 10 % mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop: 2.5 V DC

Switching output current: 250 mA DC

Current consumption: 15 mA

Switching frequency: 500 Hz DC

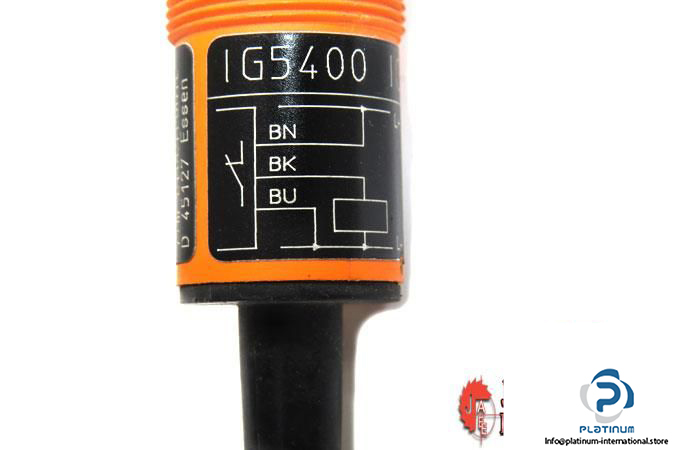

Electrical Design: PNP

Output: normally closed

Connector type, length: PVC Cable , 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 18, 80 mm

Material: PBT

Mounting: Flush mountable

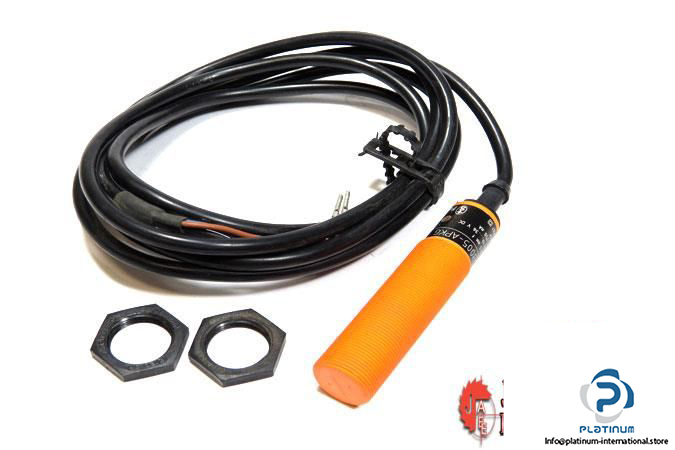

Supplied Accessories:  2 lock nuts

Weight: 125.9 g
