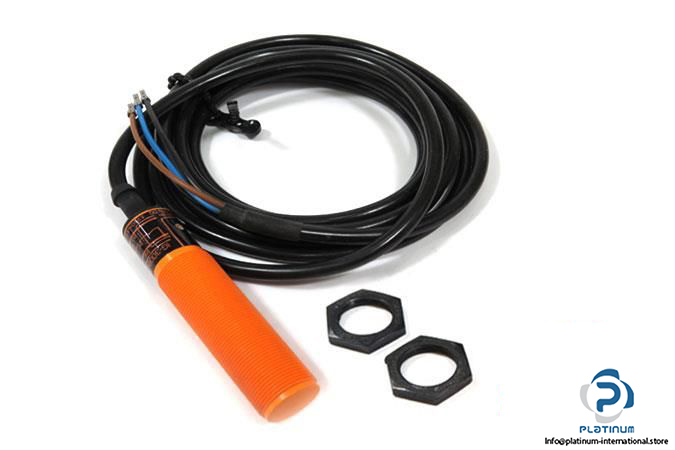

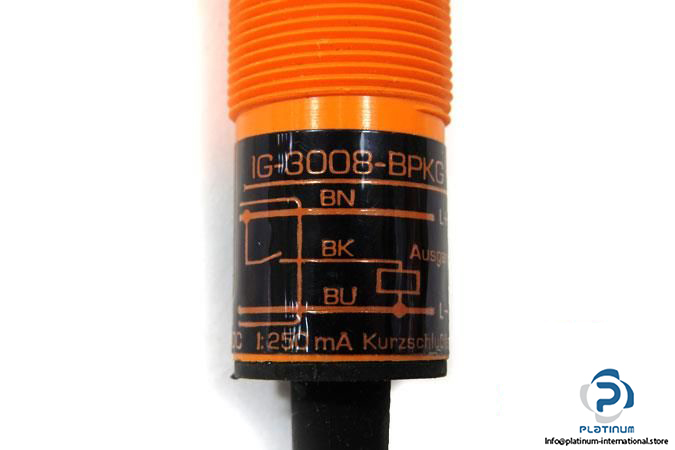

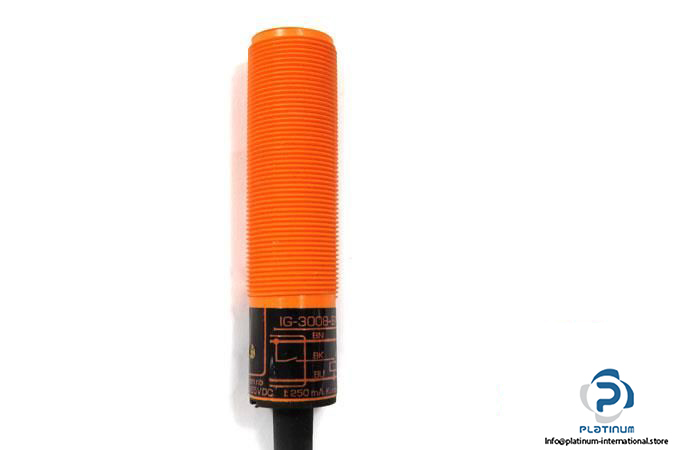

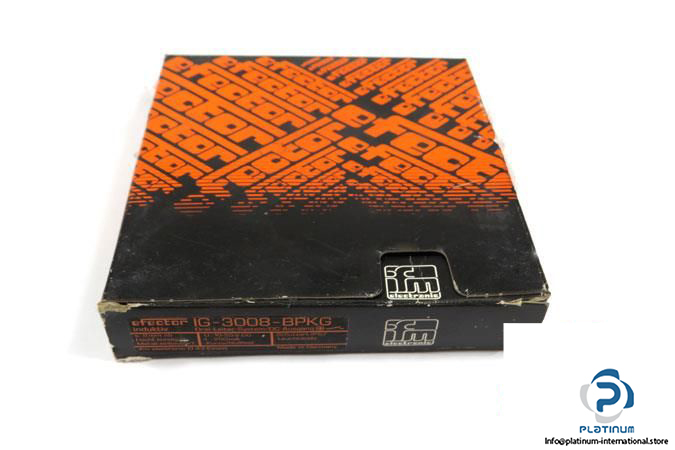

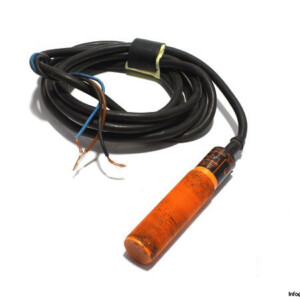

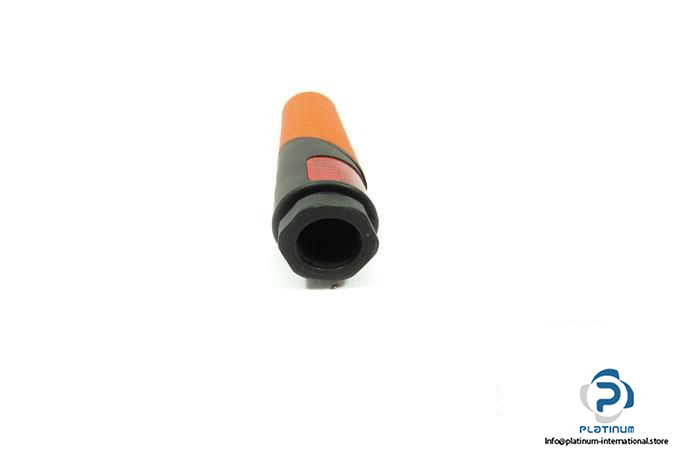

IFM IG5401 IG-3008-BPKG Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IG5401

MRN: IG-3008-BPKG

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10% mm

Operating Distance: 0 … 6.5 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 250 mA DC

Switching frequency: 300 Hz

Electrical Design: PNP

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 18, 80 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 126.1 g
