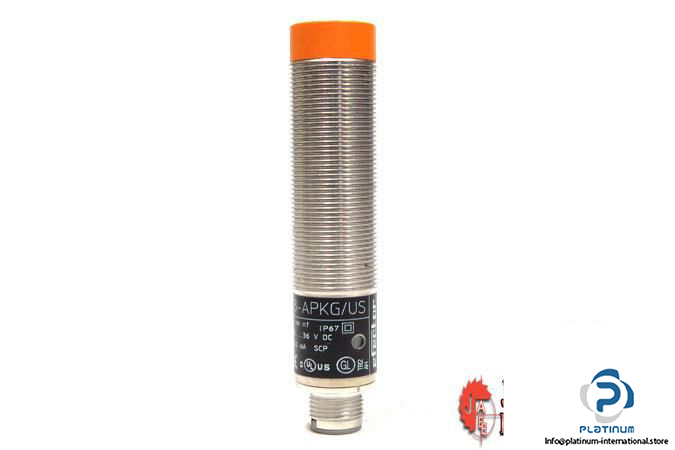

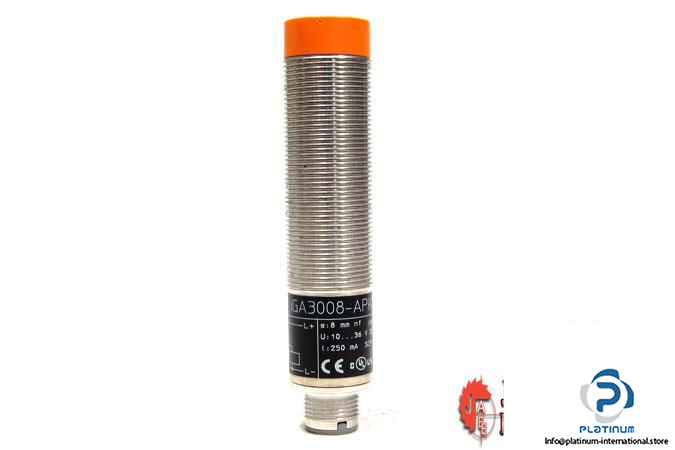

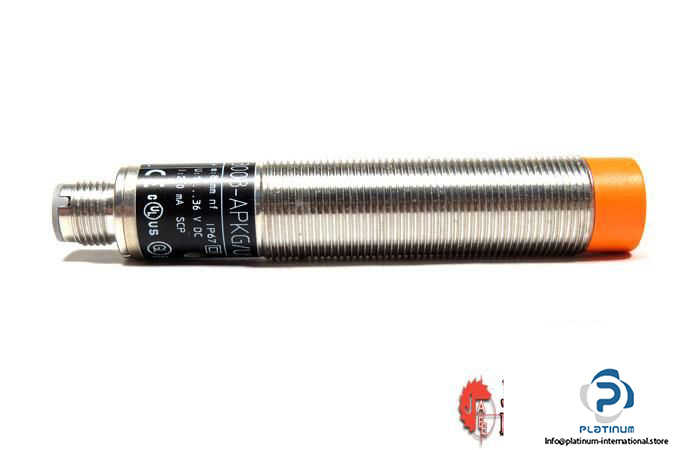

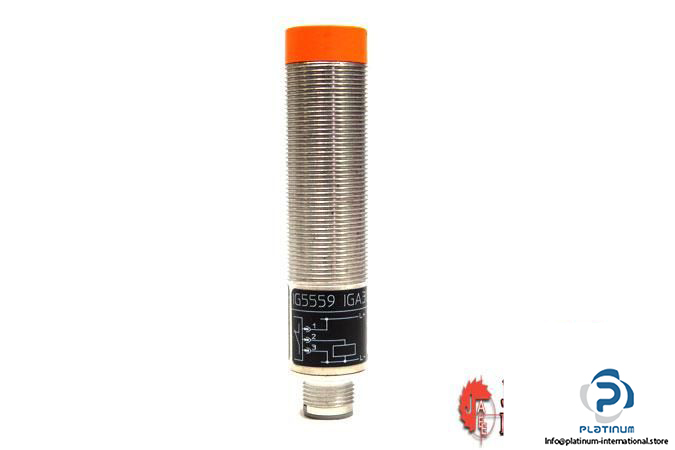

IFM IG5559 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5559

MRN: IGA3008-APKG/US

Sensing range: 8 mm

Real sensing range: 8 ± 10 % mm

Operating Distance: 0 … 6.48 mm

Operating Voltage: 10 … 30 V DC

Switching output current: 200 mA DC

Switching Frequency: 300 Hz

Electrical Design: PNP

Output function: Normally closed

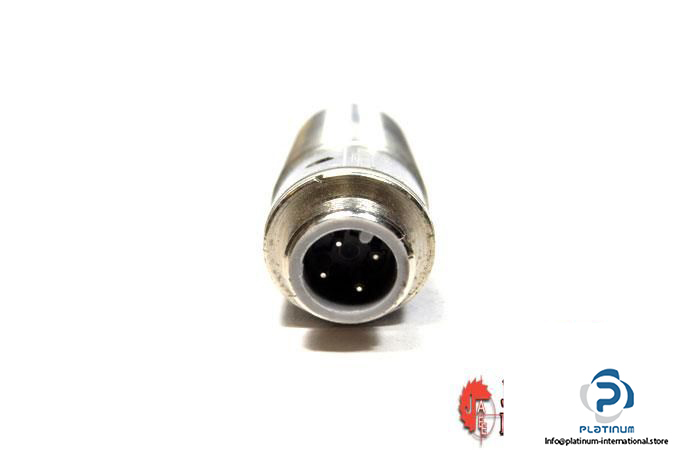

Connection: M12 Connector

Protection Class: II

Enclosure rating: IP67

Ambient operating temperature: -25 … 70°C

Housing: Threaded type

Diameter, Housing length: 18, 80 mm

Material: Brass white bronze coated; sensing face: PBT orange

Mounting: Non-flush mountable

Supplies accessories: 2 Lock nuts

Weight: 67.4 g
