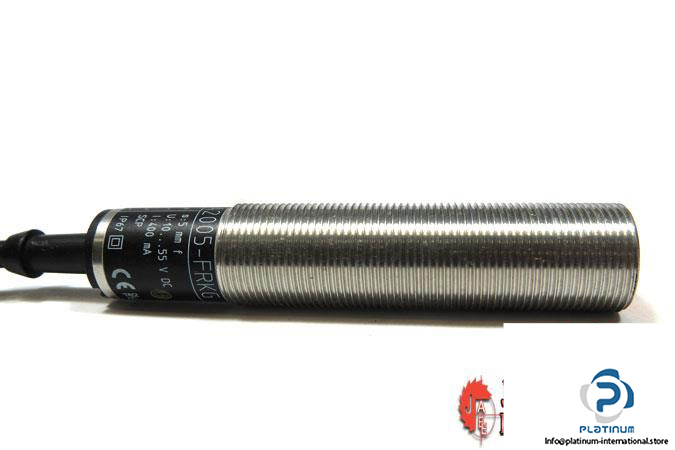

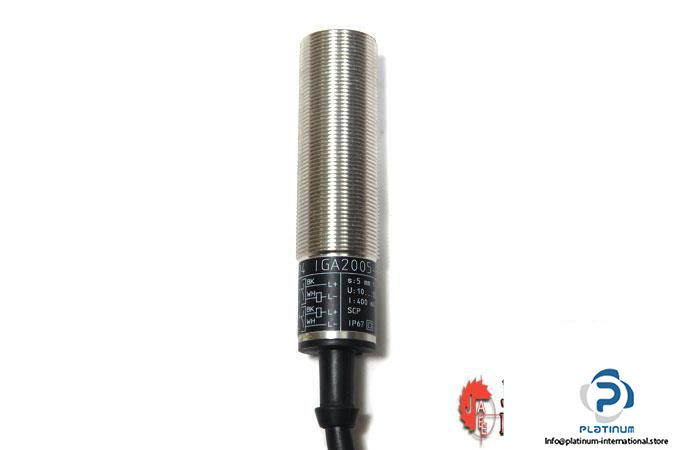

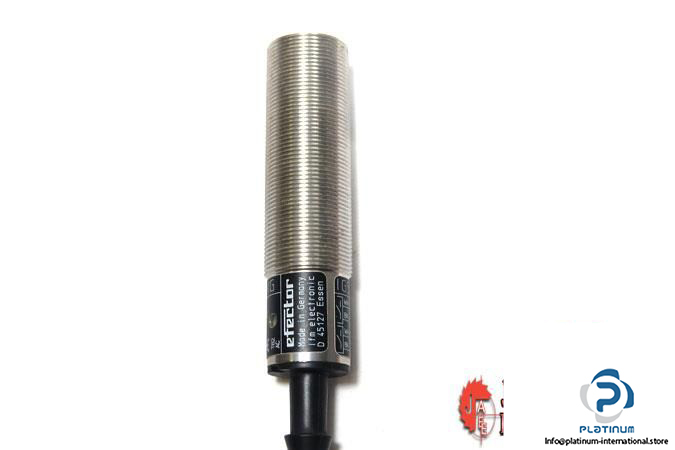

IFM IG5594 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5594

MRN: IGA2005-FRKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10 % mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop: 4.6 V DC

Switching output current: 400 mA

Minimum load current: 4 mA DC

Switching frequency: 700 Hz DC

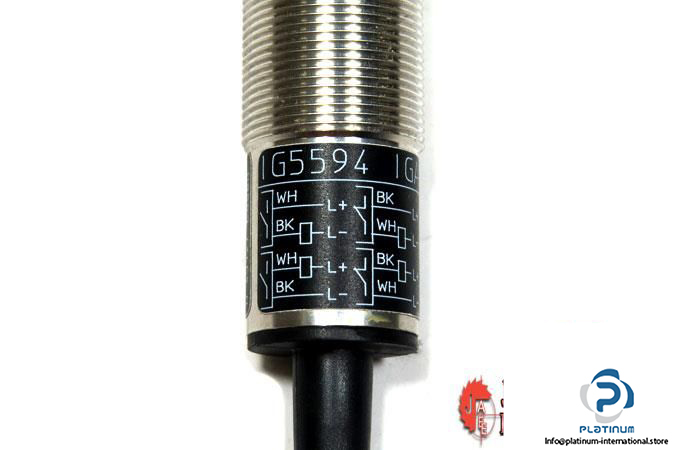

Electrical Design: PNP/NPN

Output Function: normally open / normally closed; (selectable)

Connector type, length: Cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing:  Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 18, 80 mm

Material: Brass white bronze coated; sensing face: PC

Mounting: Flush mountable

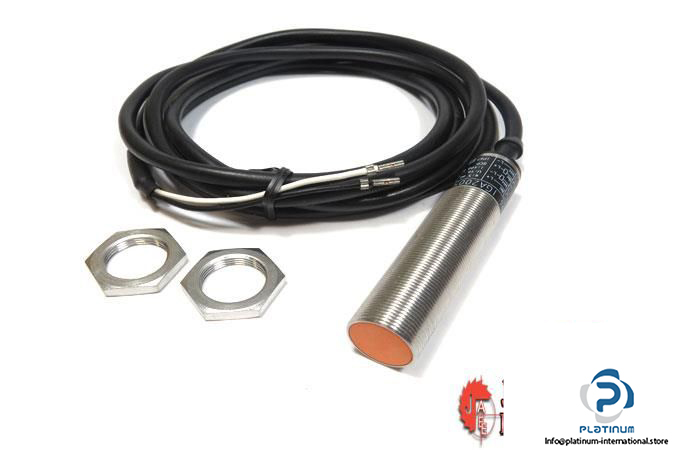

Supplied accessories: 2 lock nuts

Weight: 143.2 g

Condition: New
