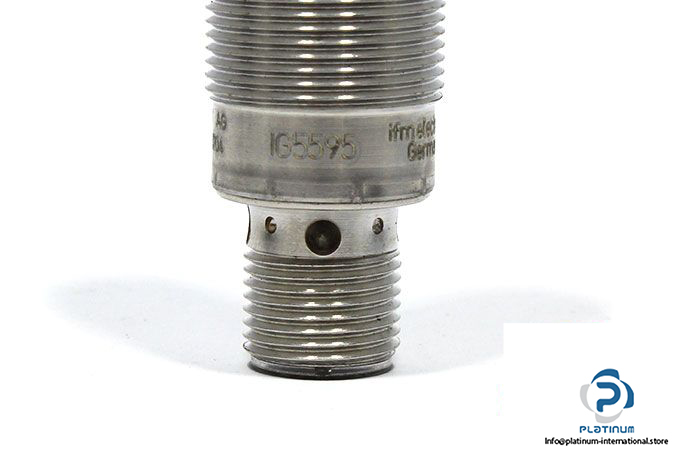

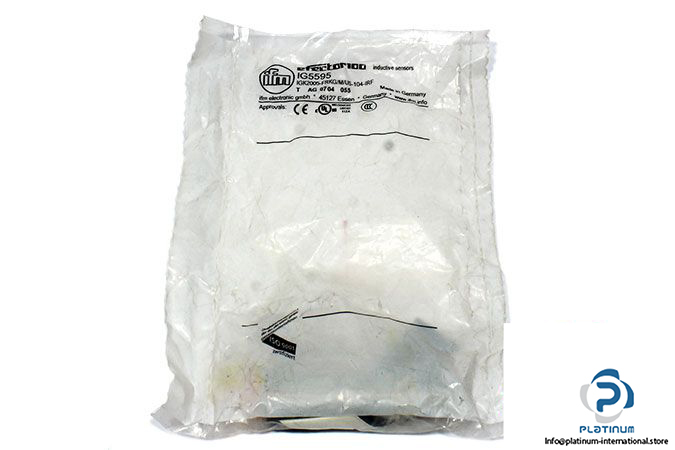

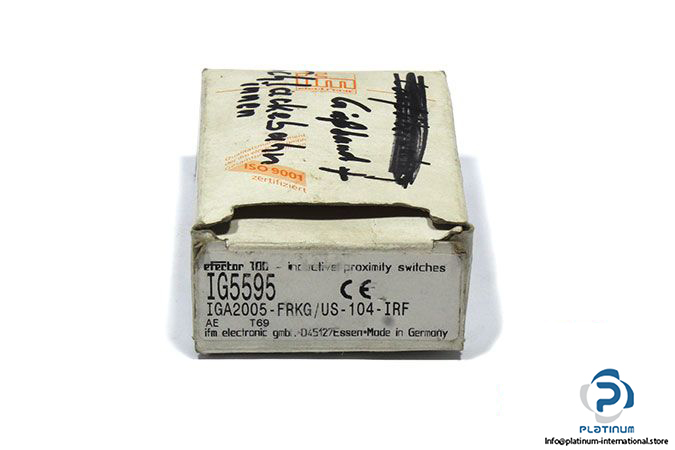

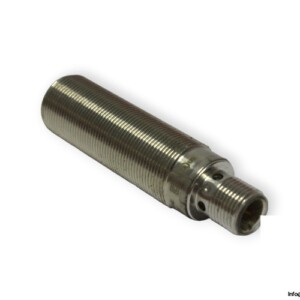

IFM IG5595 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No.: IG5595

MRN: IGA2005-FRKG/US

Sensing Range: 5 mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop: 2.5 V DC

Switching Output Current: 400 mA DC

Current Consumption: 10 mA

Switching Frequency: 700 Hz DC

Electrical Design: PNP/NPN

Output Function: Normally Open / Normally Closed; (Selectable)

Connection Type: M12 Connector, Gold Plated Contacts

Protection Class: II

Enclosure rating: IP67

Housing:  Threaded Type

Ambient Operating Temperature: -25 … 70 °C

Diameter, Housing Length: 18, 70 mm

Material: Brass White Bronze Coated; Sensing Face: PBT

Mounting: Flush Mountable

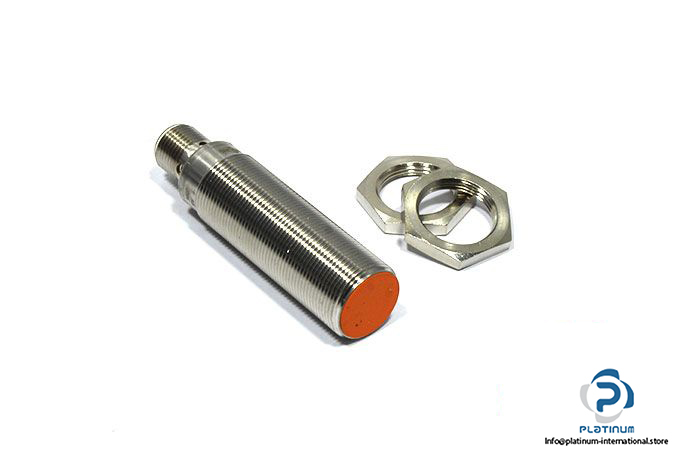

Supplied Accessories: 2 Lock Nuts

Weight: 0.06 kg
