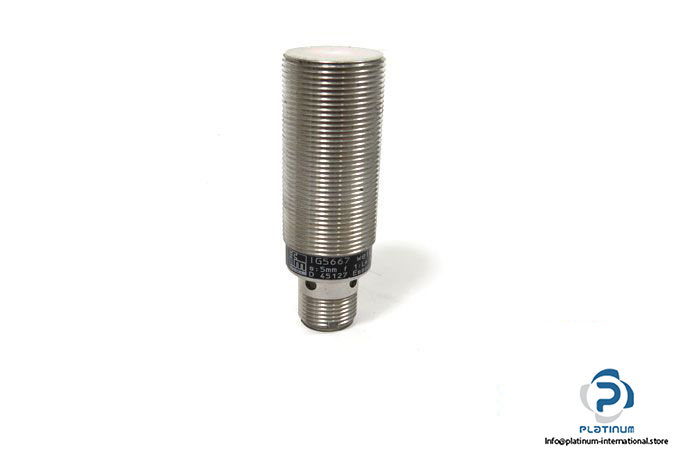

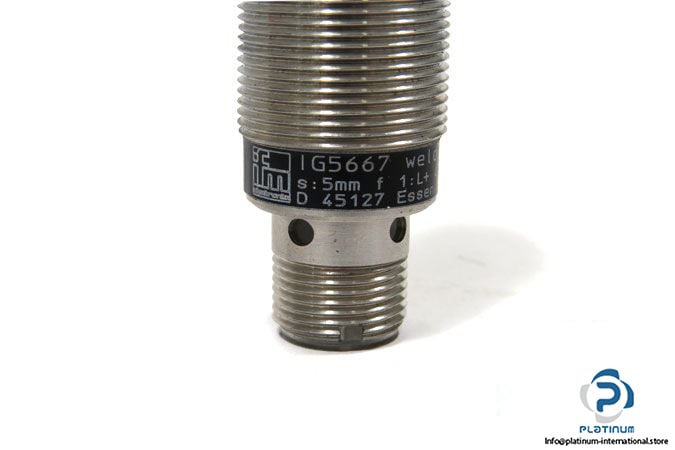

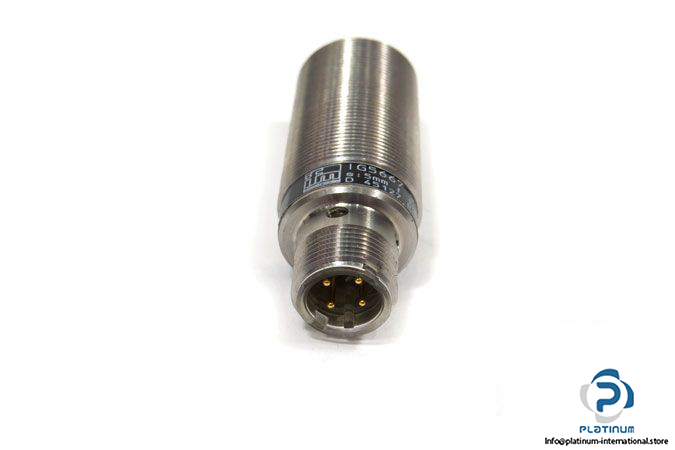

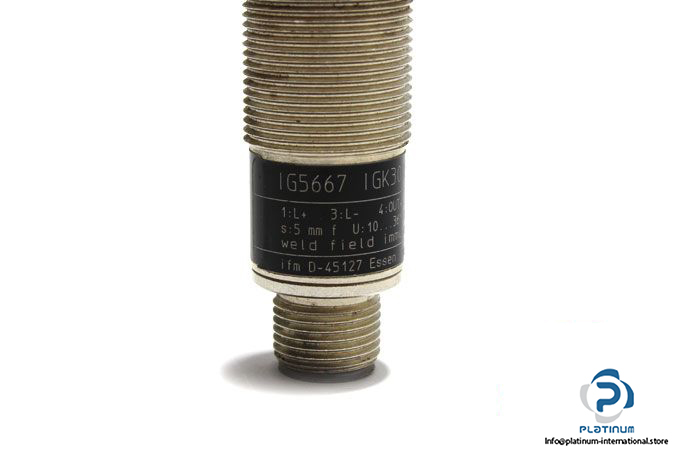

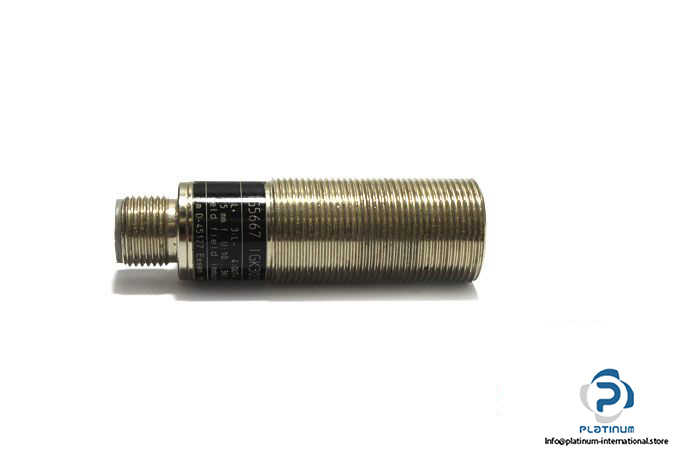

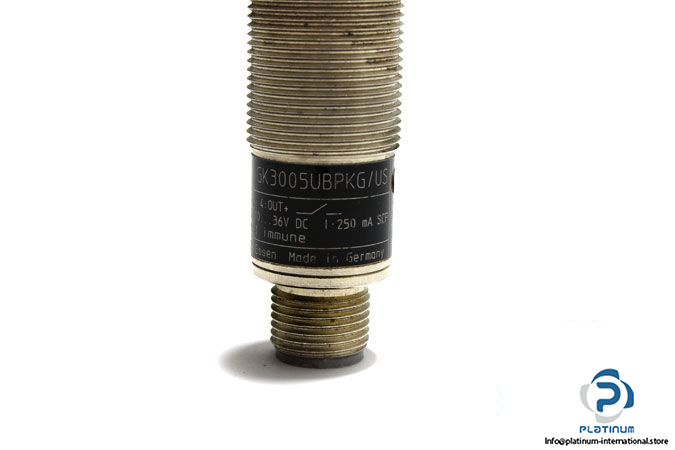

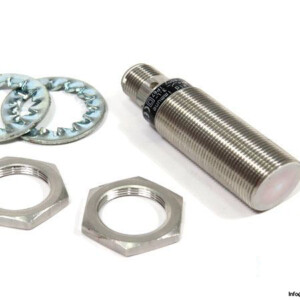

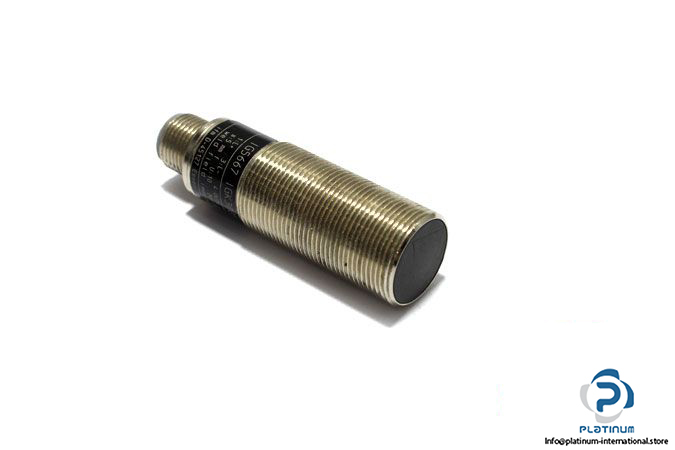

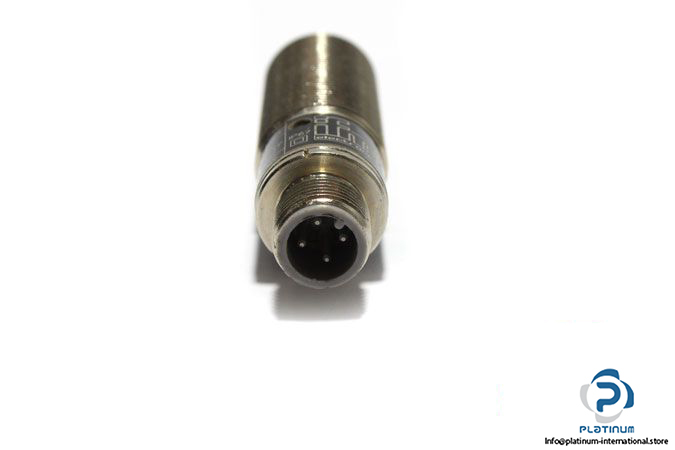

IFM IG5667 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IG5667

MRN: IGK3005UBPKG/US

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10% mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Switching frequency: 700 Hz

Electrical design: PNP

Output Function: Normally open

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 18, 60 mm

Material: brass white bronze coated; sensing face: plastics PTFE

Mounting: Flush mountable

Weight: 40 g
