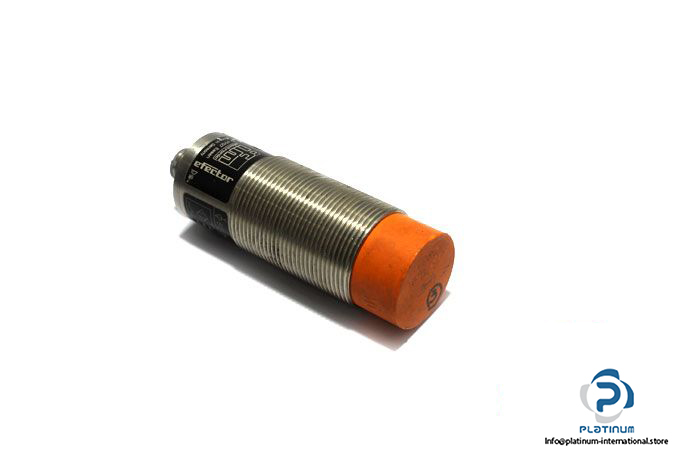

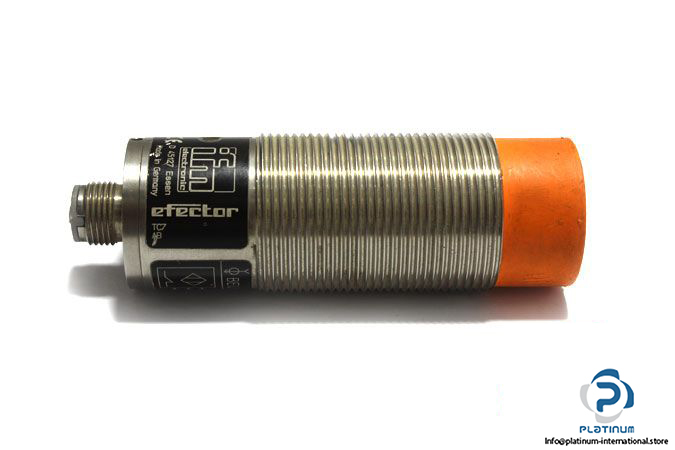

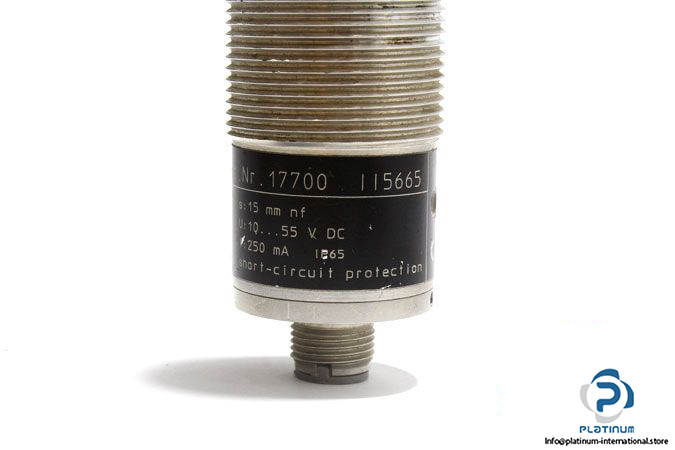

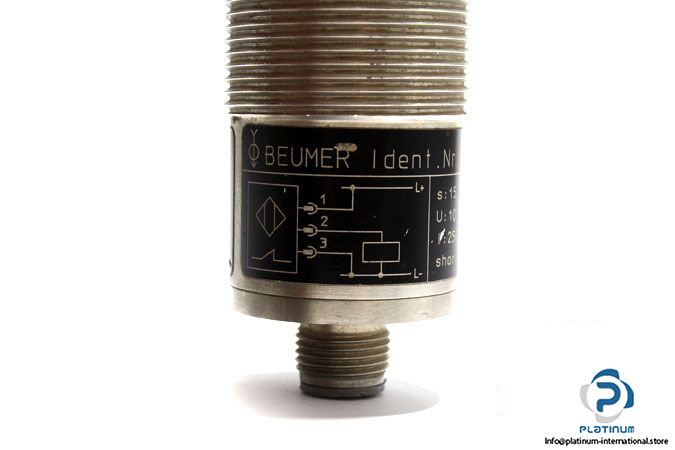

IFM II5665 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5665

Ident Nr.: 17700

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.15 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 200 mA DC

Switching frequency: 200 Hz

Electrical Design: PNP

Output Function: Normally closed

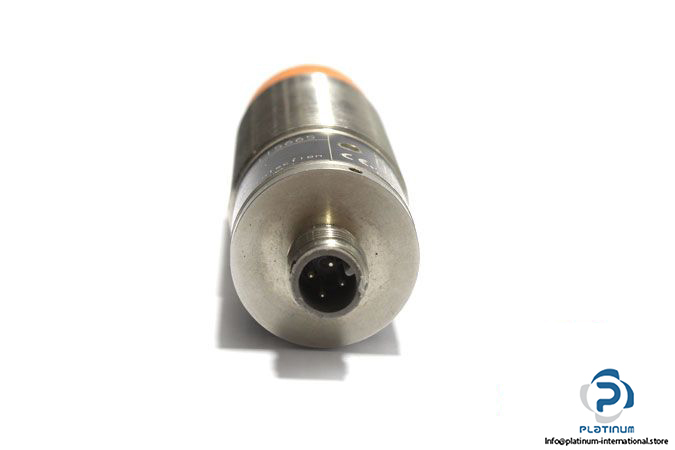

Connector type: M12 Connector

Protection Class: III

Enclosure rating: IP56

Housing: Threaded type

Ambient Operating temperature: -25 …80°C

Diameter: 30 mm

Material: Stainless steel; sensing face: PBT

Mounting: Non-flush mountable

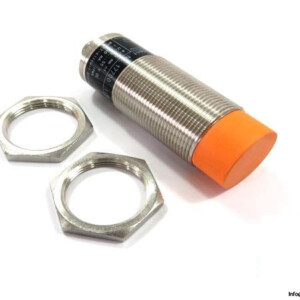

Supplied accessories:  2 lock nuts

Weight: 130 g
