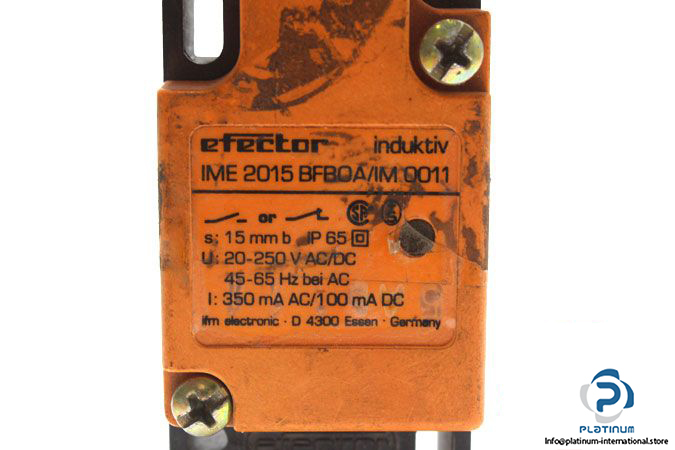

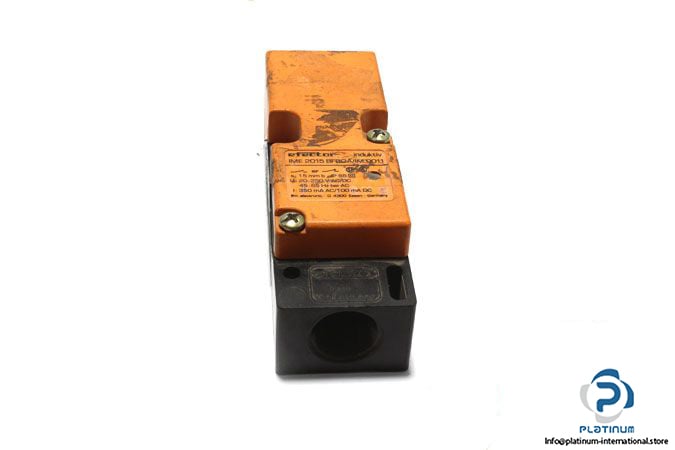

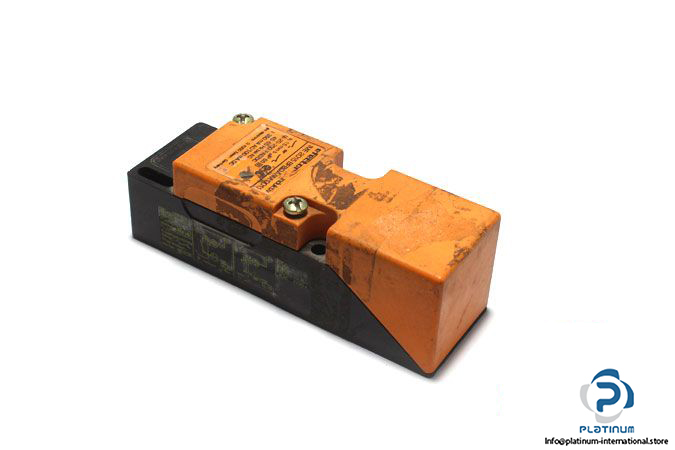

IFM IM0011 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM0011

MRN: IME2015BFBOA

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage ( AC, DC):20 … 250 V AC/DC,45 … 65 Hz for AC

Voltage Drop Max. ( AC, DC):  6.5 ,6 V AC/DC

Switching Output Current ( AC, DC):  mA DC

Switching Frequency ( AC, DC): 20 ,55 Hz

Output Function: Normally open, Normally Closed

Connector Type: Cable Gland: M20 X 1.5

Protection Class: II

Enclosure Rating: IP65

Housing: Rectangular

Ambient Operating Temperature: -25 … 80°C

Dimensions: 40 x 40 x 120 mm

Material: PPE

Mounting: Flush Mountable

Weight: 188.5 g
