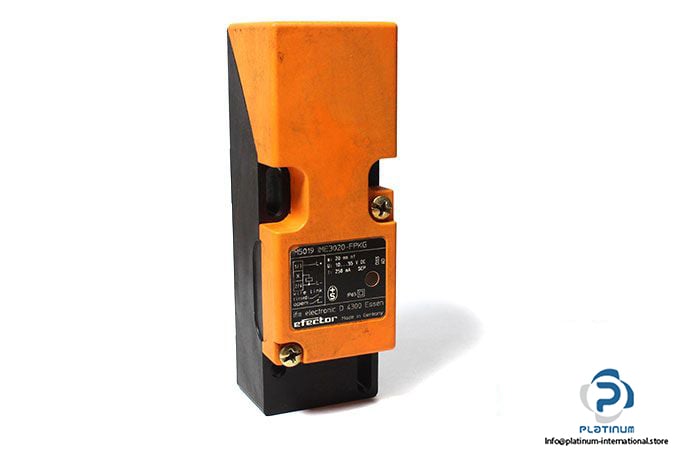

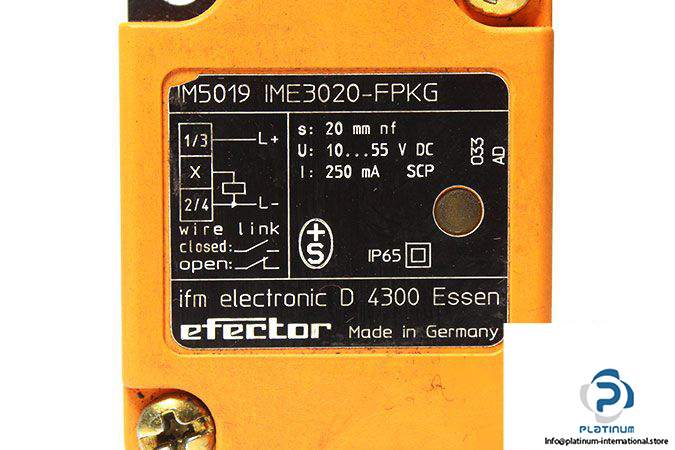

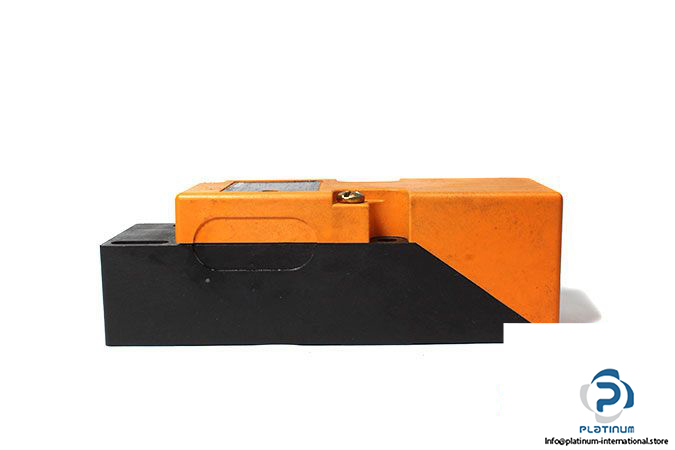

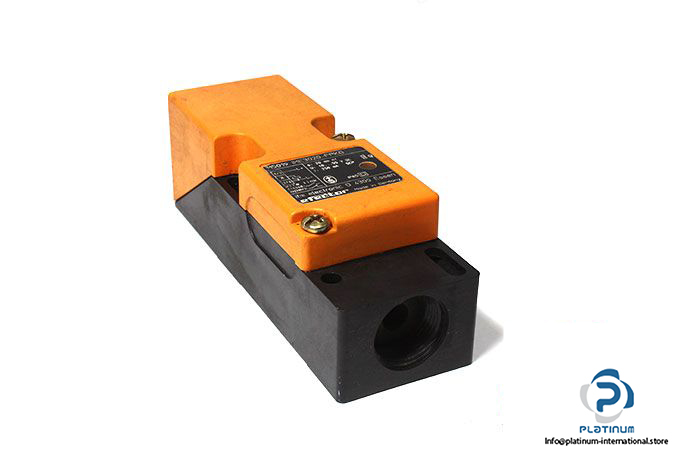

IFM IM5019 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IM5019

MRN: IME3020-FPKG

Sensing Range: 20 mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 36 V DC

Switching Output Current: 250 mA

Current Consumption: 15 mA

Electrical Design: PNP

Output Function: Normally Open, Normally Closed (Selectable)

Switching Frequency DC: 300 Hz

Housing: Rectangular

Protection Class: II

Enclosure Rating: IP65

Dimensions: 40 x 40 x 120 mm

Ambient Temperature: -25 … 80 °C

Materials: PPE

Weight: 0.16 kg
