IFM IM5022 Inductive Sensor
Used
In stock1 unitReady to ship
Inductive Sensor
The IFM IM5022 inductive sensor offers a 15 mm sensing range, PNP electrical design, and dual output (NO/NC). Designed with a rugged PPE housing and IP65 rating for demanding industrial environments.15AutomationDetectionDualElectronicifmInductiveIndustrialIP65mmNon-ContactOutputPNPRectangularSensingSensor
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

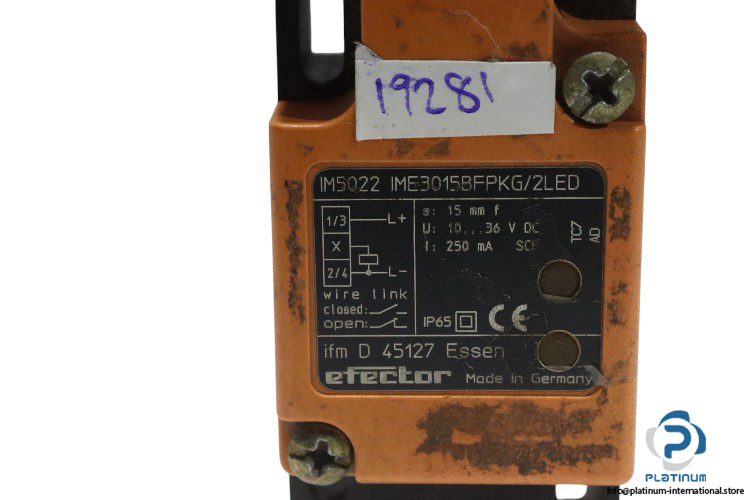

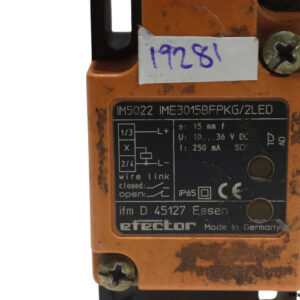

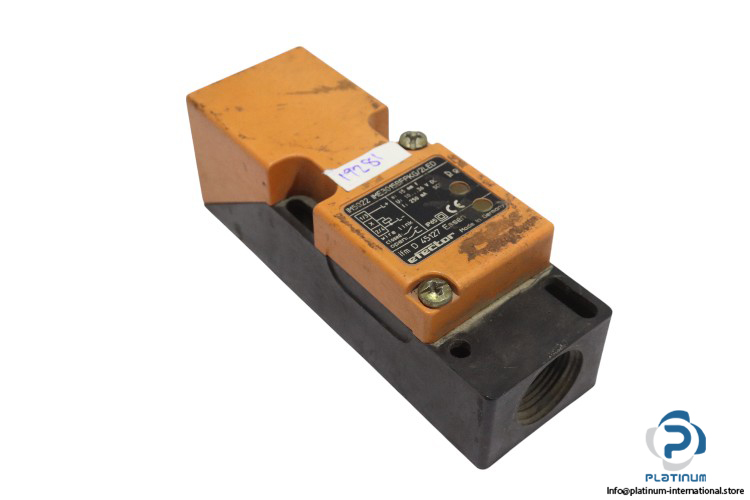

IFM IM5022 Inductive Sensor
The IFM IM5022 is a robust and high-performance inductive sensor ideal for non-contact object detection in industrial environments. With a long 15 mm sensing range and dual output function, it provides flexibility, reliability, and durable operation in harsh conditions.
Manufacturer: IFM
Type: Inductive Sensor
Model: IM5022
MNR: IME3015BFPKG/2LED
Technical Data:
- Sensing Range: 15 mm
- Operating Voltage: 10 to 36 V DC
- Current Consumption: 15 mA
- Output Function: Normally open / Normally closed
- Max. Voltage Drop Switching Output DC: 2.5 V
- Permanent Current Rating of Switching Output DC: 250 mA
- Switching Frequency: 250 Hz
- Electrical Design: PNP
- Enclosure Rating: IP65
- Housing: Rectangular
- Ambient Operating Temperature: -25 to 80 °C
- Dimensions: 40 x 40 x 120 mm
- Material: PPE
