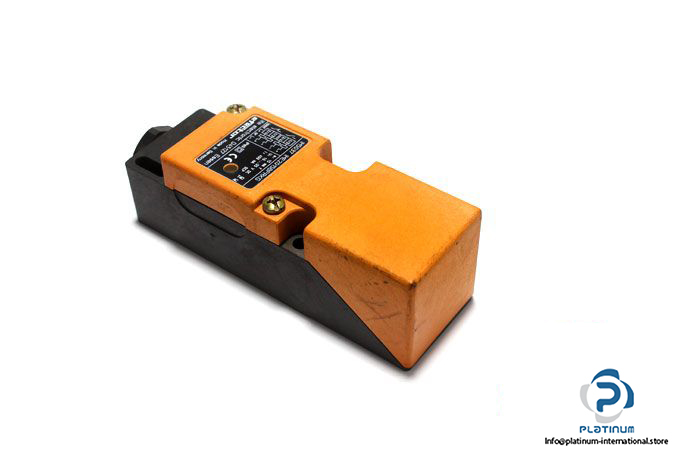

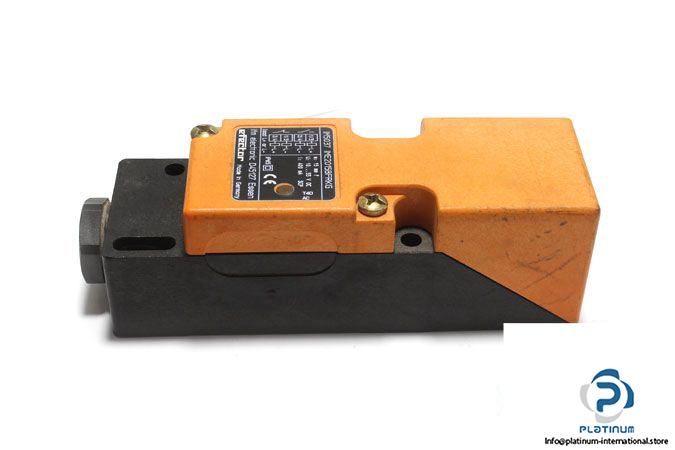

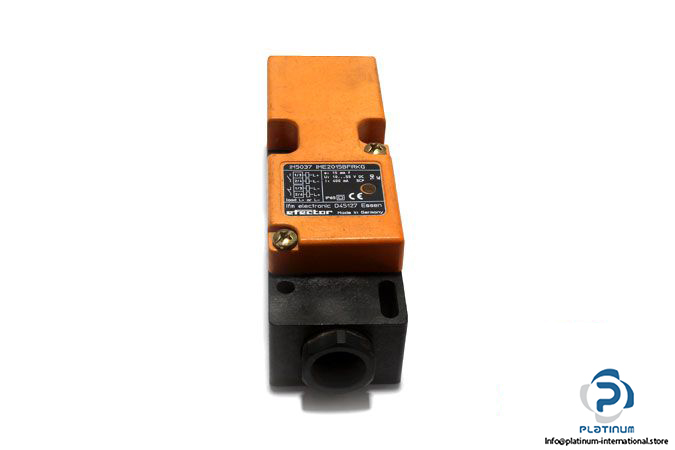

IFM IM5037 Inductive Sensor
Used
In stock3 unitsReady to ship
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: ifm
Type: INDUCTIVE SENSOR

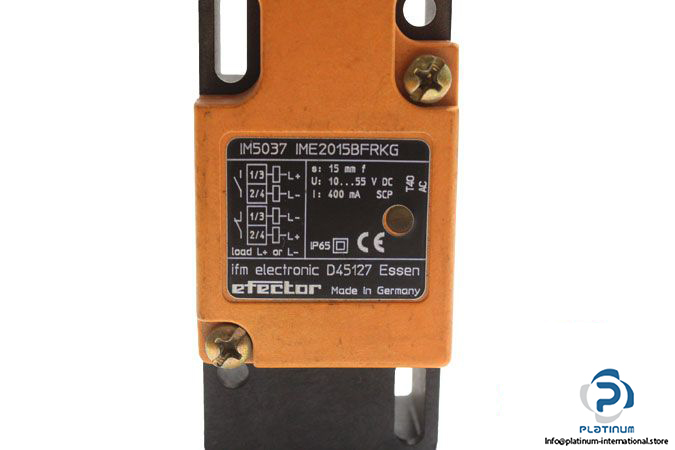

Part No.: IM5037
MRN: IME2015BFRKG
Sensing Range: 15 mm
Real Sensing Range: 15 ± 10% mm
Operating Distance: 0 … 12.1 mm
Operating Voltage: 10 … 55 V DC
Voltage Drop max.: 4.6 V
Switching output current: 400 mA DC
Switching frequency: 250 Hz
Electrical Design: PNP/NPN
Output Function: Normally open, normally closed (selectable)
Connector type: Cable gland: M20 X 1.5
Protection Class: II
Enclosure rating: IP65
Housing: Rectangular
Ambient Operating temperature: -25 … 80 °C
Dimensions: 40 x 40 x 120 mm
Material: PPE
Mounting: Flush mountable
Weight: 189 g
