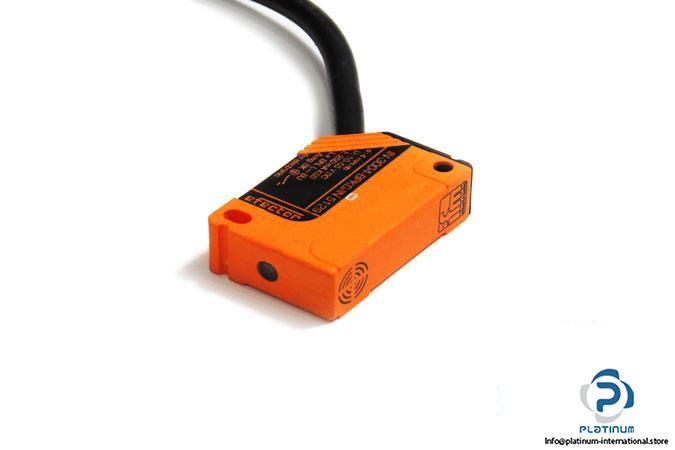

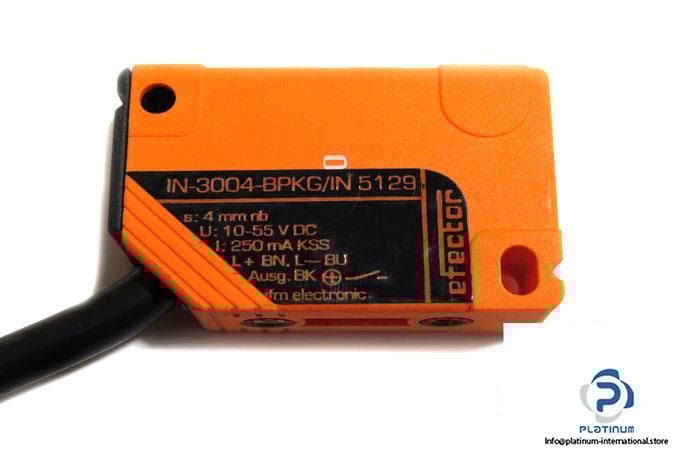

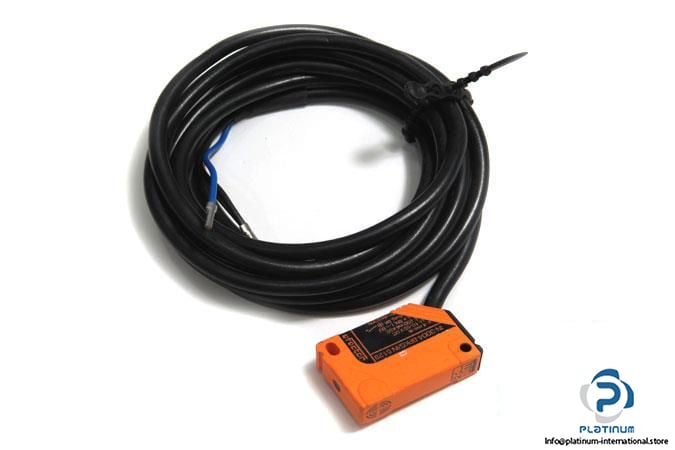

IFM IN5129 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IN5129

MRN:IN-3004-BPKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 …3.25 mm

Operating Voltage: 10…55 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency: 1300 Hz

Electrical Design: PNP

Output Function: Normally Open

Connector type, Length: PVC cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature:  -25…80°C

Dimension: 40 x 12 x 26 mm

Material: PBT
