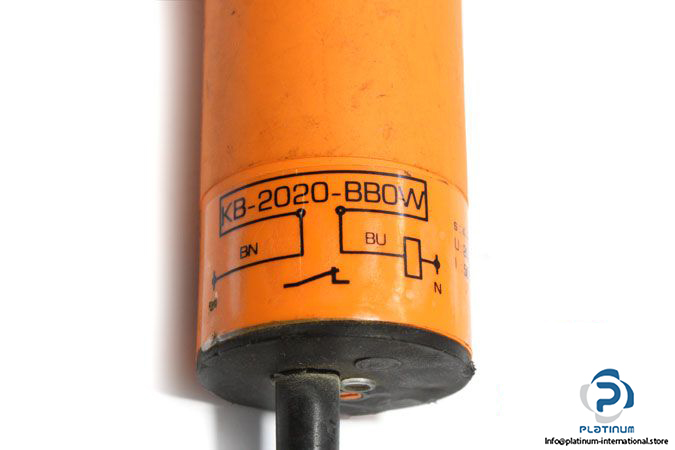

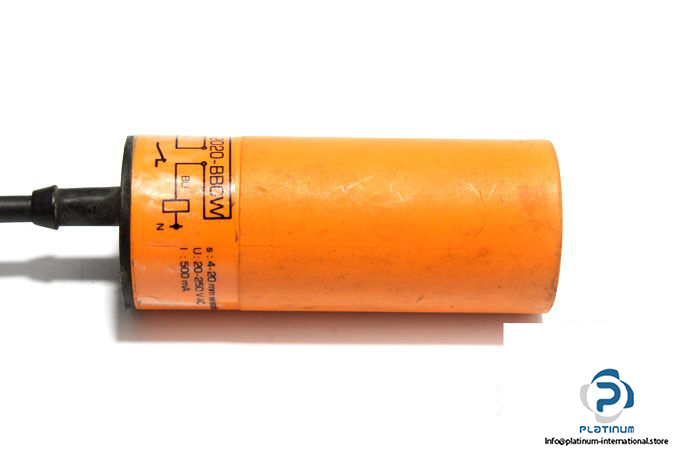

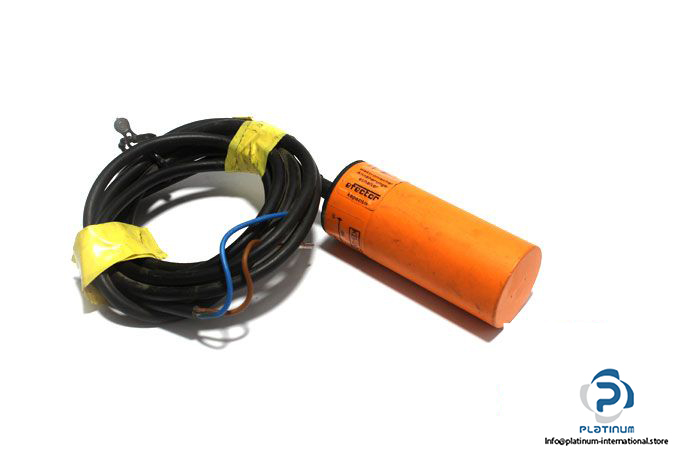

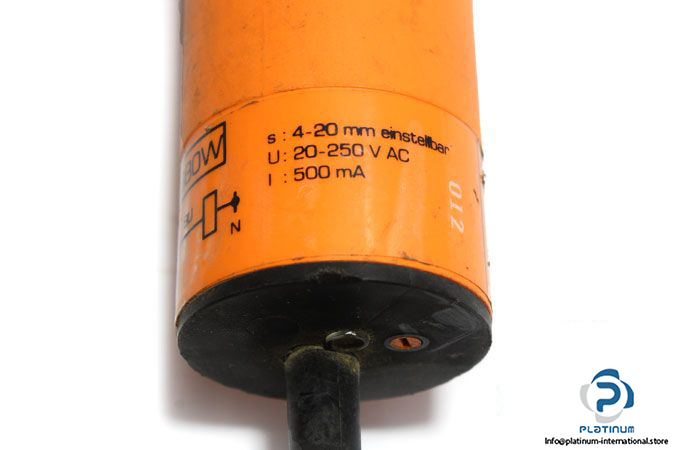

IFM KB-2020-BBOW Capacitive Sensor

Manufacturer: IFM

Type: CAPACITIVE SENSOR

MRN: KB-2020-BBOW

Sensing Range: 2 … 20 mm

Real Sensing Range: 20 ± 10 % mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 20 … 250 V AC

Switching output current: 500 mA

Switching frequency: 20 Hz AC

Output Function: Normally closed

Connector type, length: Cable, 2m

Protection Class: II

Enclosure rating: IP65

Housing: Tubular

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 34,81 mm

Material: PBT

Weight: 0.2 Kg
