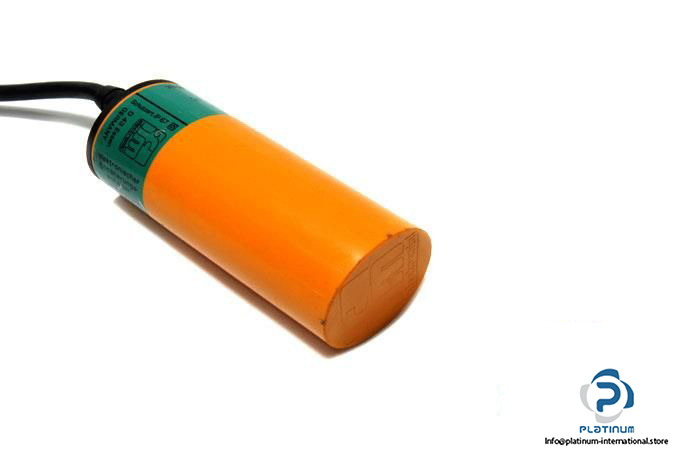

IFM KB-3020-BNKG Capacitive Sensor

Manufacturer: ifm

Type: CAPACITIVE SENSOR

Part No.: KB5203

MRN: KB-3020-BNKG

Sensing Range: 2 … 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency:  40 Hz

Electrical Design: NPN

Output Function: Normally closed

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Tubular

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 34, 81 mm

Material: PBT

Mounting: Non-flush mountable

Condition: New
