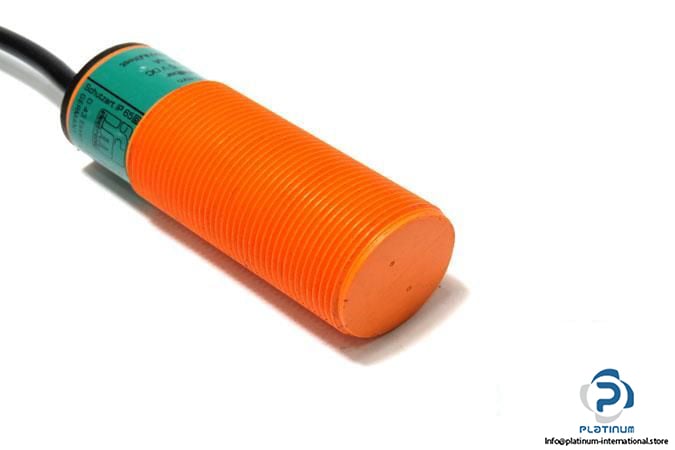

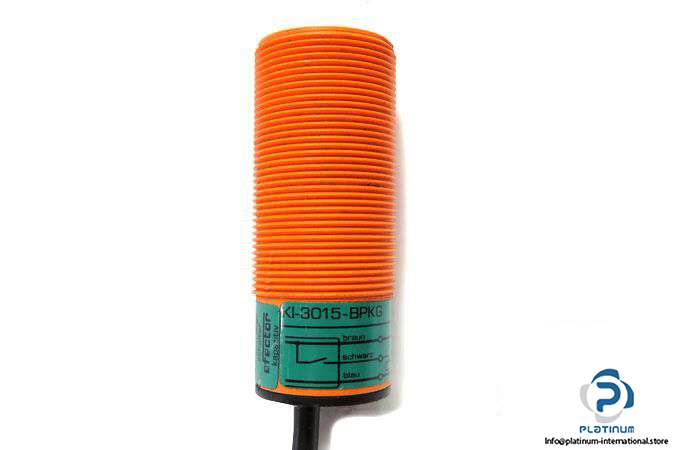

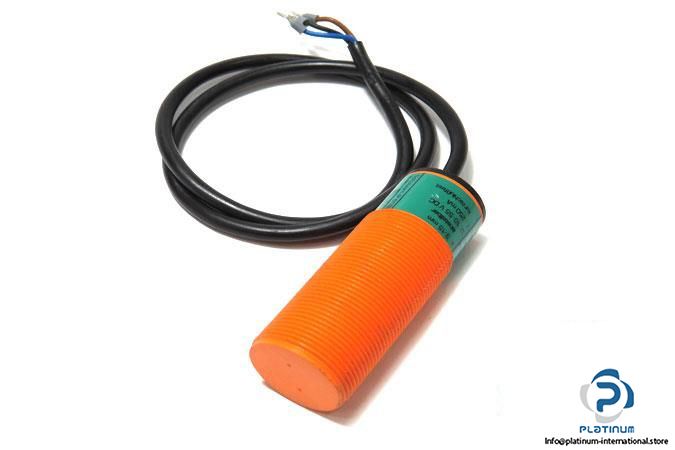

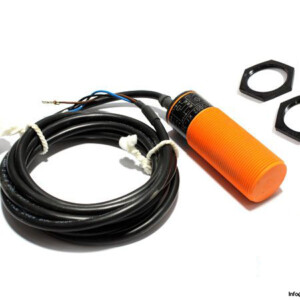

IFM KI-3015-BPKG Capacitive Sensor

Manufacturer: ifm
Type: Capacitive Sensor
MRN: KI-3015-BPKG

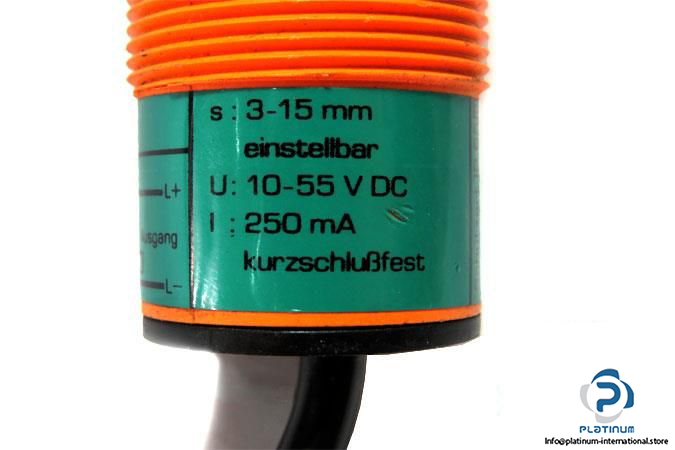

Sensing Range: 3 … 15 mm
Real Sensing Range: 15± 10% mm
Operating Voltage: 10 … 55 V DC
Voltage Drop max.: 2.5 V DC
Switching output current: 250 mA DC
Current consumption: 13 mA
Switching frequency: 40 Hz

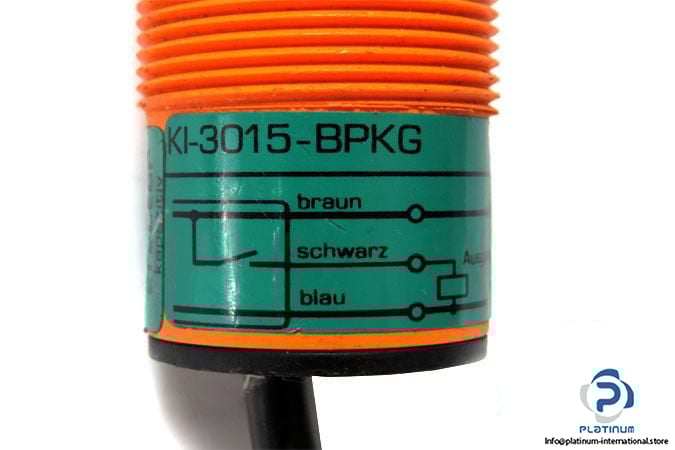

Electrical Design: PNP
Output Function: Normally open
Connector type: PVC Cable
Protection Class: II
Enclosure rating: IP65
Housing: Threaded type
Ambient Operating temperature: -25 … 70°C
Diameter, Housing length: 30, 81 mm
Material: PBT
Mounting: Non-flush mountable
