IFM O5D100 Distance Sensor
New
In stock1 unitReady to ship
Distance Sensor With Background Suppression
IFM O5D100 industrial distance sensor with 0.03“2 m sensing range, PNP complementary outputs, M12 connector, and IP67 protection for reliable automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

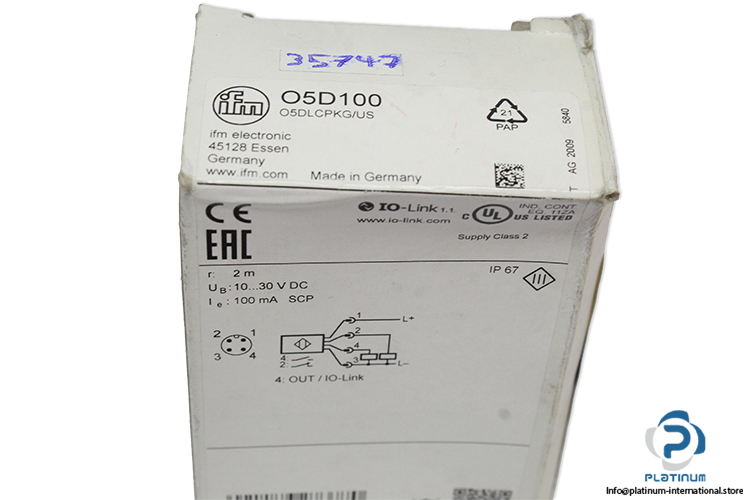

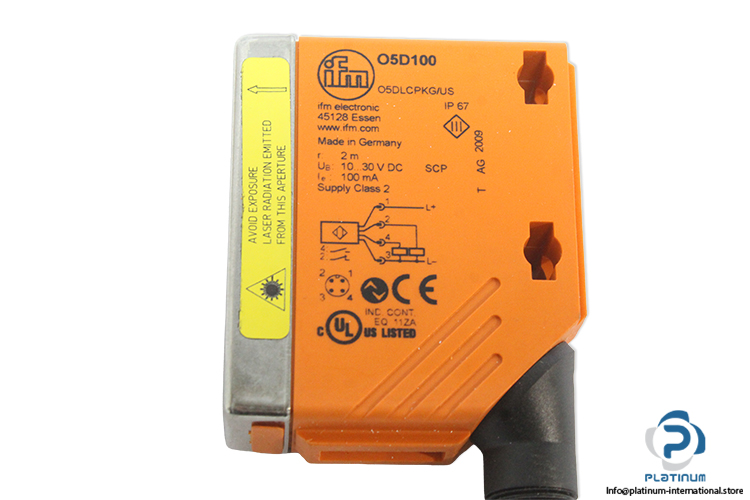

IFM O5D100 Distance Sensor With Background Suppression
The IFM O5D100 distance sensor is designed for precise object detection and reliable measurement in industrial automation environments. Featuring background suppression technology and red light emission, it ensures stable switching performance even in challenging applications.
Manufacturer: IFM
Type: Distance Sensor With Background Suppression
Model: O5D100
Alternative Model: O5DLCPKG/US
Part No.: 111717
Series: 26K
| Sensing Range | 0.03 ... 2 m |
| Light Type | Red Light |
| Wave Length | 650 nm |
| Light Spot Diameter | 5 mm |
| Rated Operating Voltage | 10 / 30 V DC |
| Rated Current Consumption | 100 mA |
| Digital Outputs (DO) | 2 |
| Contact Type | PNP Normally Open (NO) / Normally Closed (NC) (Complementary) |

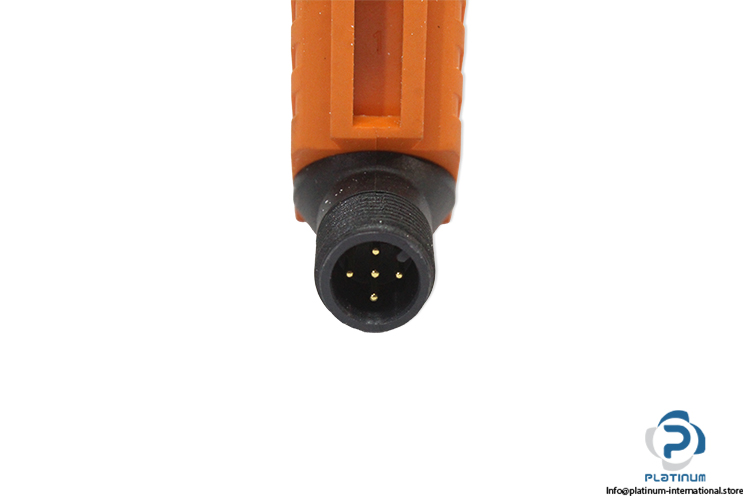

| Connection | Connector, M12x1 Coding A |
| Housing Material | PA |
| Protection Class | IP67 |
| Ambient Temperature | -25 ... 60 °C |
| Dimensions | 56 x 18.2 x 46.8 mm |
