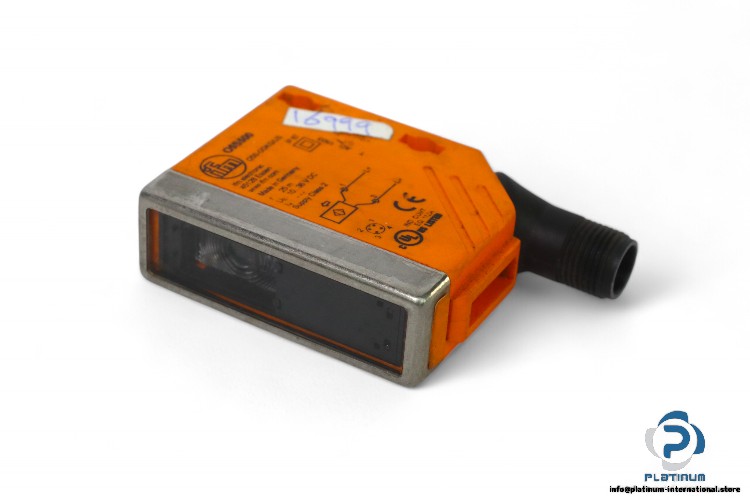

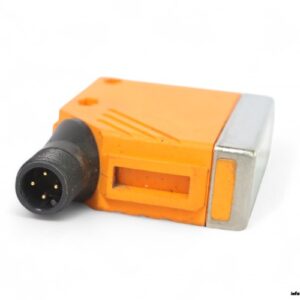

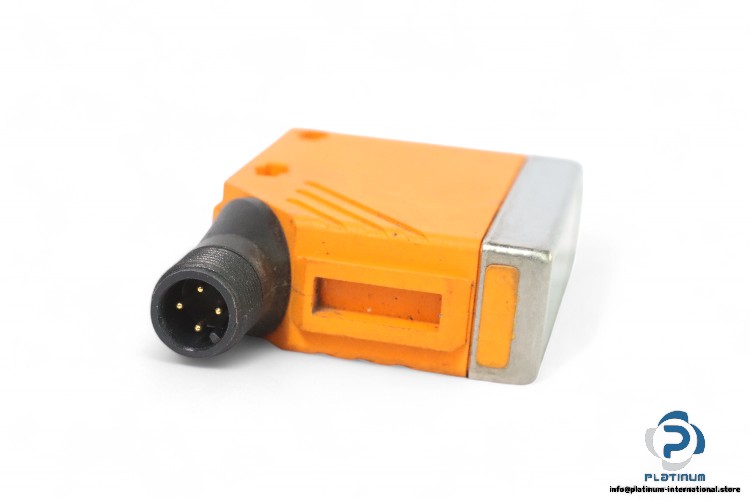

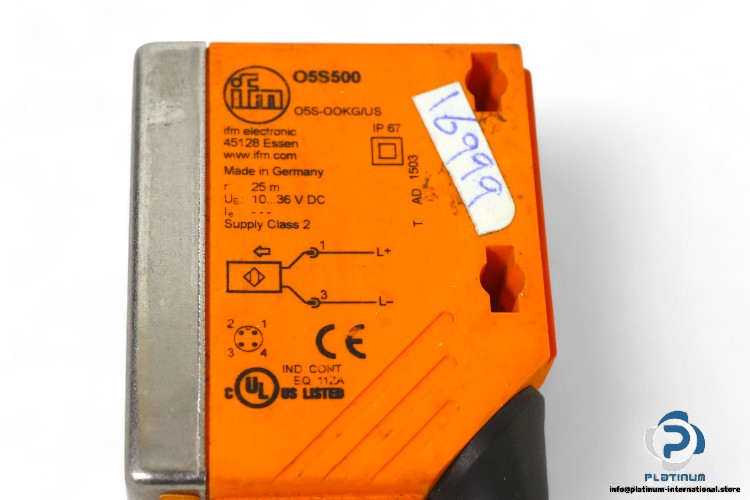

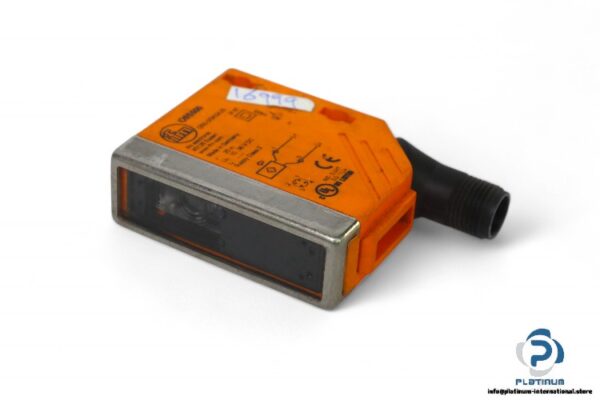

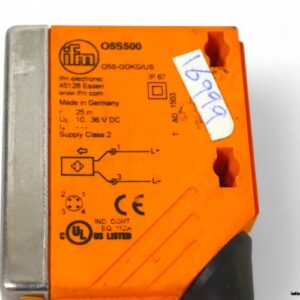

IFM O5S500 Through-Beam Sensor Transmitter

Manufacturer: IFM
Type: Through-beam sensor transmitter
Model: O5S500
Part No.: O5S-OOKG/US

Operating voltage: 10…36V DC
Current consumption: 20 mA
Wave length: 624 nm
Transmitter / receiver: transmitter
Range: 25 m
Max. light spot diameter: 625 mm
Ambient temperature: -25…60 °C
Protection: IP 67
Type of light: red light
Housing: rectangular
Dimensions: 56 x 18.2 x 46.8 mm
Materials:
housing: PA; bezel: stainless steel; operator interface: TPU
Lens: PMMA
Lens alignment: side lens
Connector: 1 x M12, 4-PIN
