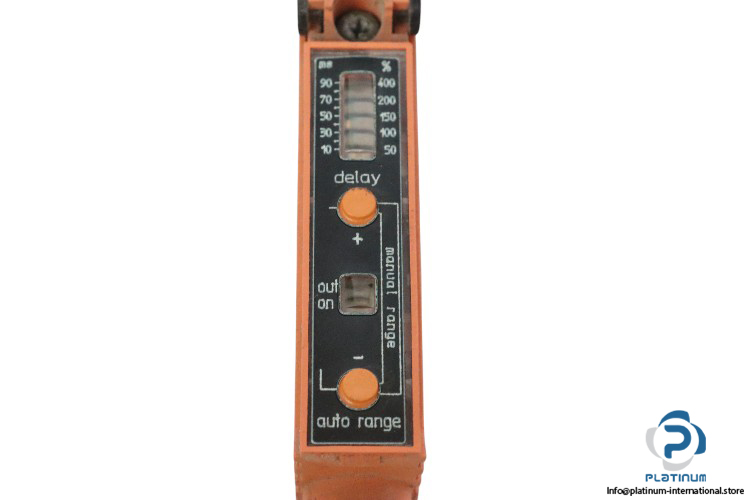

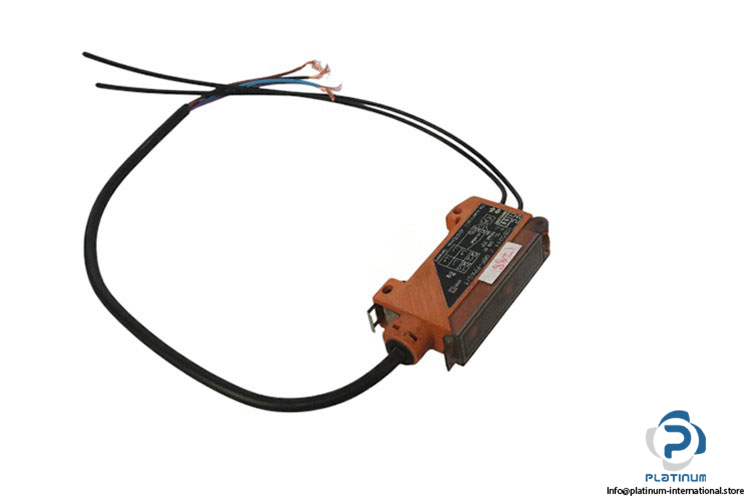

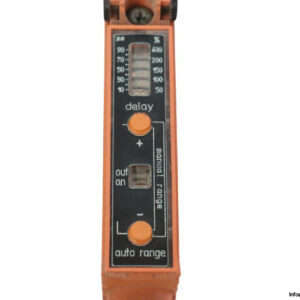

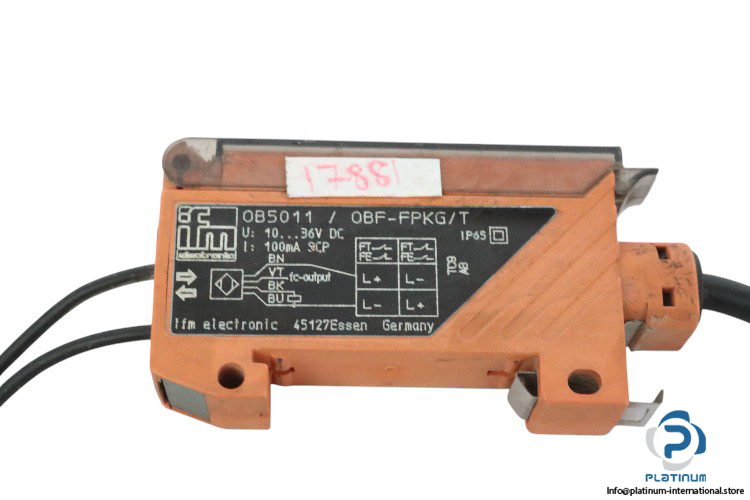

IFM OB5011/OBF-FPKG/T Fiber-Optic Amplifier
The IFM OB5011/OBF-FPKG/T Fiber-Optic Amplifier offers reliable red light detection with a 10-36V DC voltage range, configurable light-on/dark-on output, IP65 protection, and a compact rectangular housing, perfect for industrial applications.
IFM OB5011/OBF-FPKG/T Fiber-Optic Amplifier
The IFM OB5011/OBF-FPKG/T Fiber-Optic Amplifier is designed to provide precise light control and reliable operation in industrial applications. Offering flexible light-on/dark-on functionality and a compact, rectangular housing, this amplifier is built to perform in harsh environments, making it an ideal choice for a wide range of sensing applications.
- Manufacturer: IFM
- Type: Fiber-Optic Amplifier
- Model: OB5011/OBF-FPKG/T
Technical Specifications:
- Type of Light: Red light
- Housing: Rectangular
- System: Function check output
- Operating Voltage: 10…36 V DC
- Current Consumption: 35 mA (at 36 V)
- Protection Class: II
- Wavelength: 660 nm
- Electrical Design: PNP
- Output Function: Light-on/dark-on mode (configurable)
- Max. Voltage Drop Switching Output: 2.5 V DC
- Max. Voltage Drop of Function Check Output: 3.5 V
- Max. Current Load for Function Check Output: 10 mA
- Permanent Current Rating of Switching Output DC: 100 mA
- Time Function: 0.002…0.09 S
- Connection: Cable: 2 m, PVC; 4 x 0.34 mm²
- Degree of Protection: IP65
- Ambient Temperature: -25…60°C
- Dimensions: 36 x 15 x 60 mm
The IFM OB5011/OBF-FPKG/T Fiber-Optic Amplifier offers high reliability in industrial environments. It is capable of functioning in a wide range of temperatures and conditions, with a high degree of protection (IP65) and flexible output options for efficient system integration. Whether used in factory automation, material handling, or inspection applications, this amplifier ensures precise and dependable performance.
