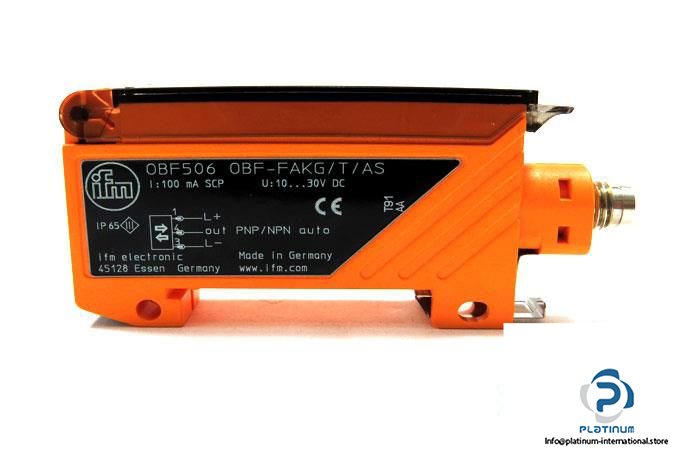

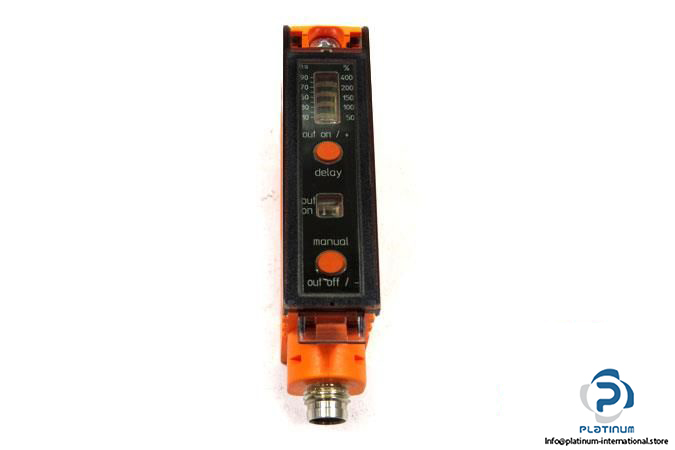

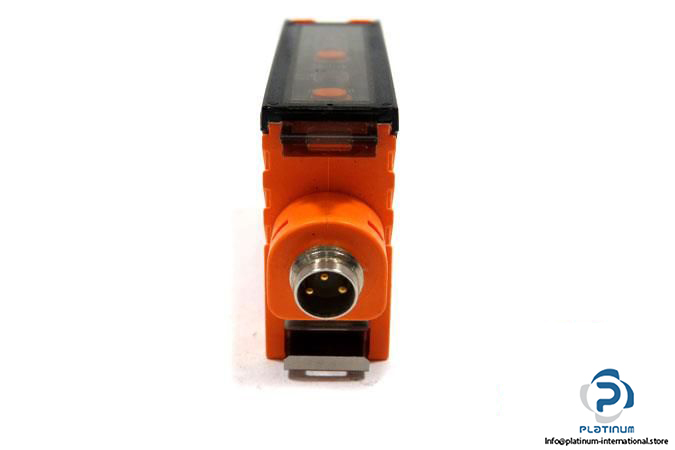

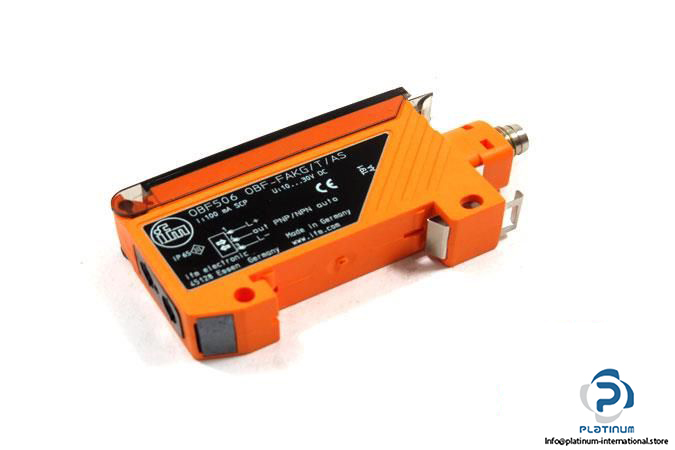

IFM OBF506 Fiber-Optic Sensor

Manufacturer: ifm

Type: FIBER-OPTIC SENSOR

Part No.: OBF506

MRN: OBF-FAKG/T/AS

Sensing Range: 0…0.4 m (Through-beam sensor), 0… 40 mm (Through-beam sensor)

Operating Voltage: 10 … 30 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 100 mA DC

Switching frequency: 500 Hz

Electrical Design: PNP/NPN

Output Function: light-on/dark-on mode; (programmable)

Connector type: M8 Connector

Protection Class: III

Enclosure rating: IP65

Housing: Rectangular

Ambient Operating temperature: -25 … 60°C

Dimensions: 36 x 15 x 60 mm

Material: PPE Modified

Weight: 67 g

Condition: New
