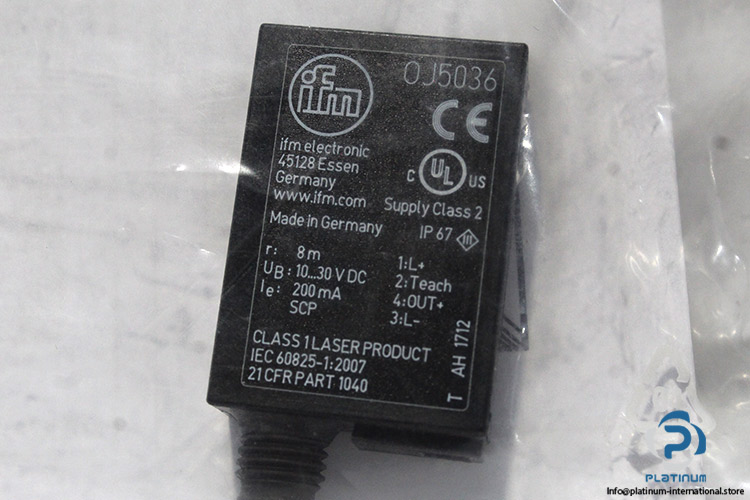

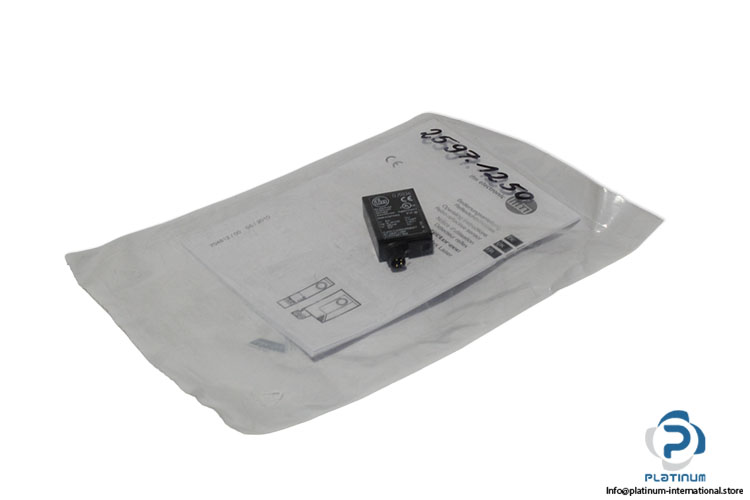

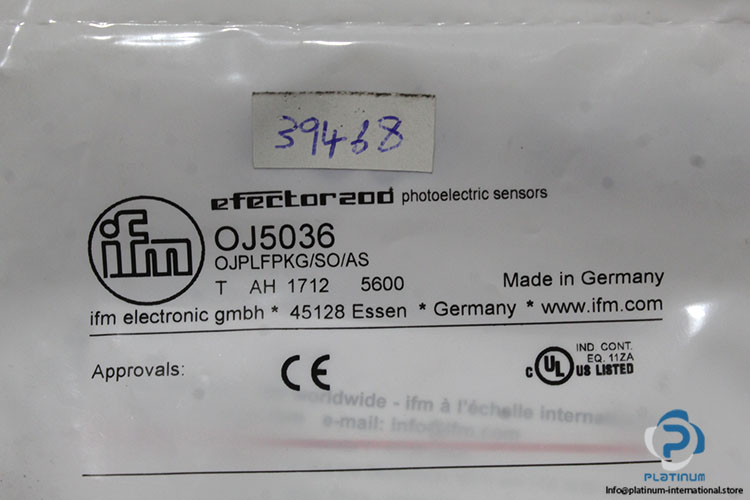

IFM OJ5036 Retro-Reflective Laser Sensor
New
In stock4 unitsReady to ship
Retro-Reflective Laser Sensor The IFM OJ5036 is a compact retro-reflective laser sensor with PNP output, 8 m sensing range, fast 2000 Hz switching, and IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | OJPLFPKG/SO/AS |
| Housing | rectangular |
| Special feature | polarisation filter |
| Function principle | Retro-reflective sensor |
| Application | For applications in robotics, assembly and handling technology |
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | 200 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 650 |
| Typ. lifetime[h] | 50000 |
| Outputs ,Electrical design | PNP |
| Laser protection class | 1 |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Range referred to prismatic reflector[m] | 8 |
| Diameter of the smallest detectable object[mm] | 2.5; (0,1 m; 2,5 m: 4; 5 m: 8) |
| Max. light spot diameter[mm] | 12 |
| Ambient temperature[°C] | -10...60 |
| Protection | IP 67 |
| Dimensions[mm] | 35 x 11 x 24 |
| Materials | housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |

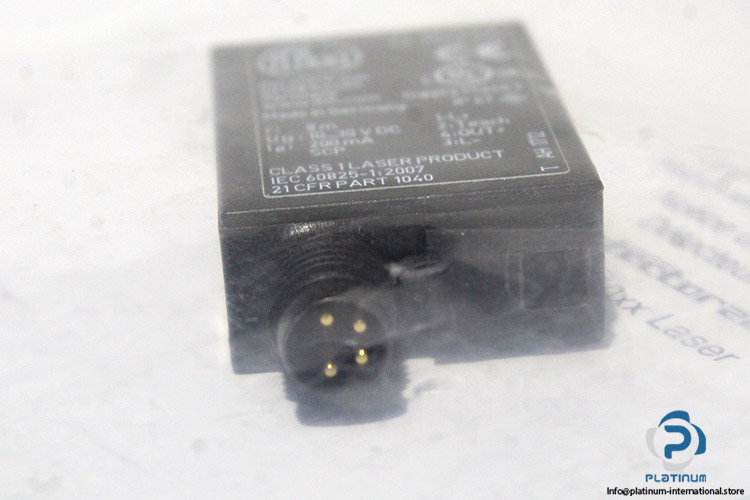

| Connector | 1 x M8; 4-pins |
| Standard | CLASS 1,IEC 60825-1:2007 |
| Stock key | EU002 |
| Condition | New |
| SKU | 1100889 |
| Weight | 0,04 |
