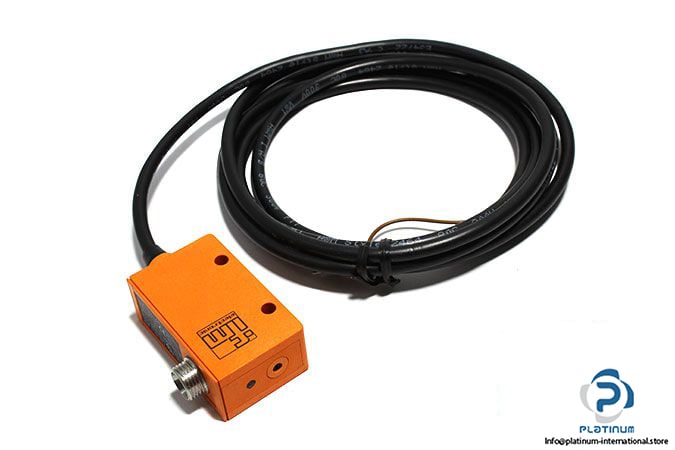

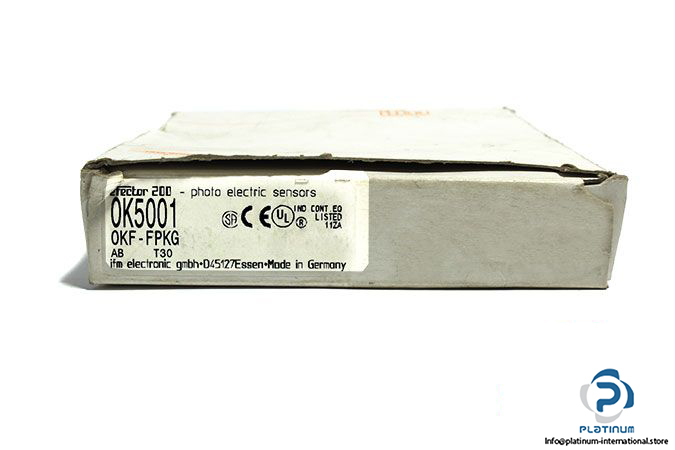

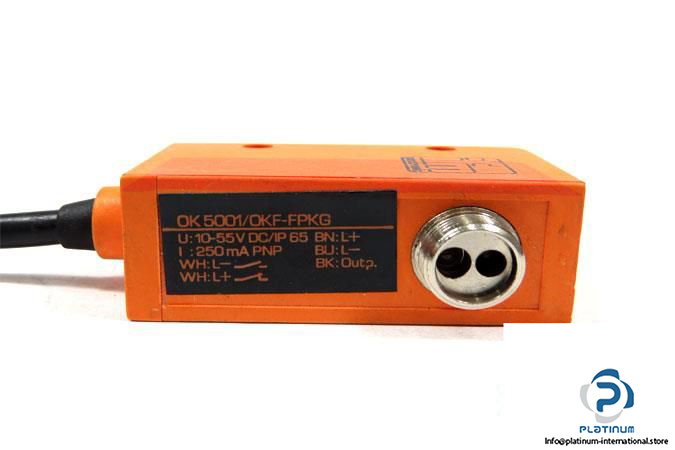

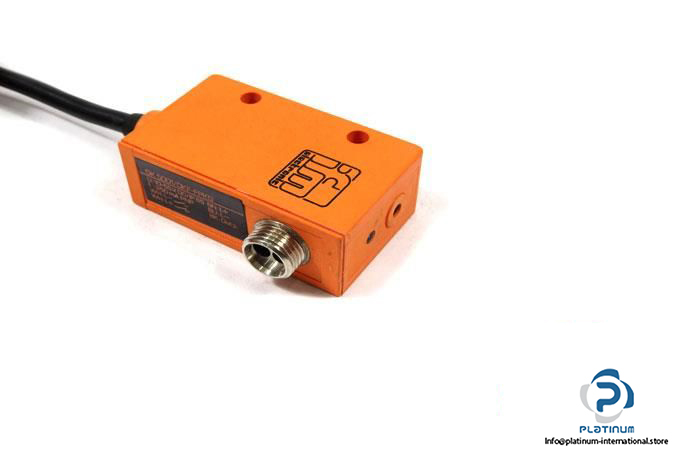

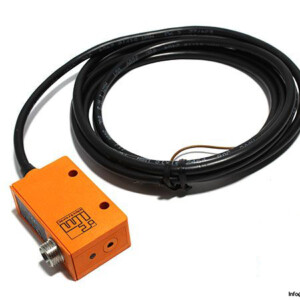

IFM OK5001 Photoelectric Fiber-Optic Sensor

Manufacturer: IFM

Type: PHOTOELECTRIC FIBER-OPTIC SENSOR

Part No.: OK5001

MRN: OKF-FPKG

Sensing Range: 0 … 0.12 mm; (Through-Beam Sensor), 0 … 40 mm; (Diffuse Reflection Sensor)

Operating Voltage: 10 … 55 V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 250 mA DC

Switching Frequency: 120 Hz

Electrical Design: PNP

Output Function: Light-On/Dark-On Mode; (Programmable)

Type of Light: Red Light

Wave Length: 660 nm

Connector Type, Length: PVC Cable, 2 m

Protection Class: III

Enclosure Rating: IP65

Housing: Rectangular

Ambient Operating Temperature: 10 … 60°C

Diameter, Housing Length: 50 x19 x35 mm

Material: PPO Modified

Weight: 0.16 kg
