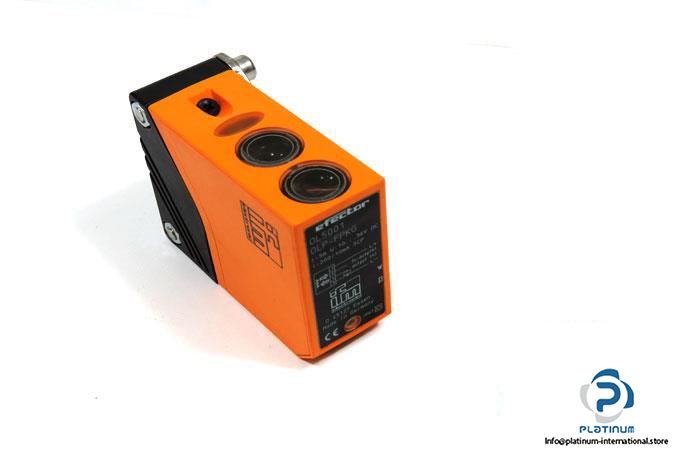

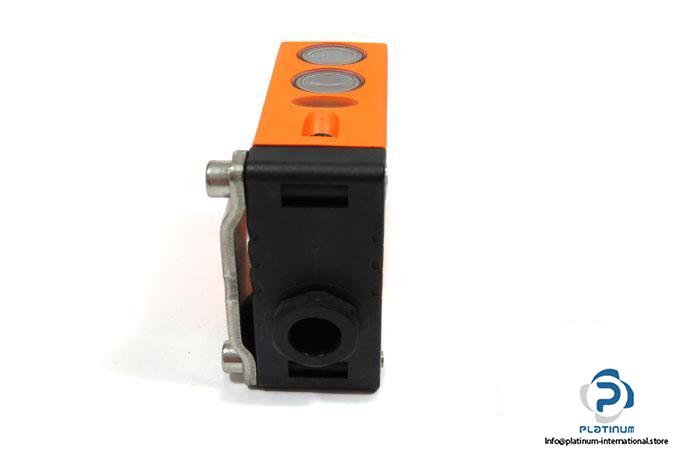

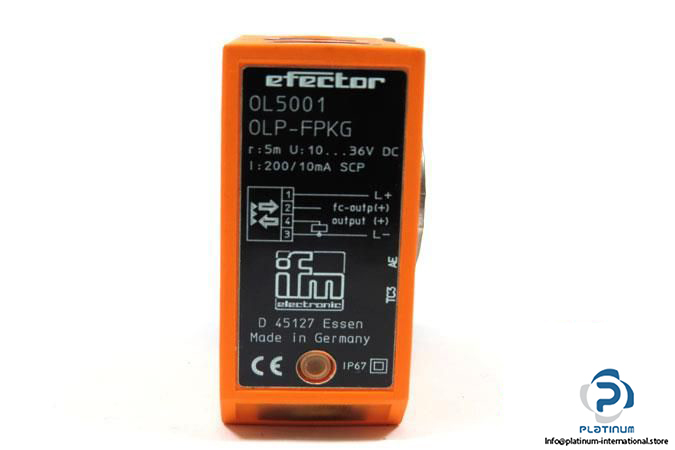

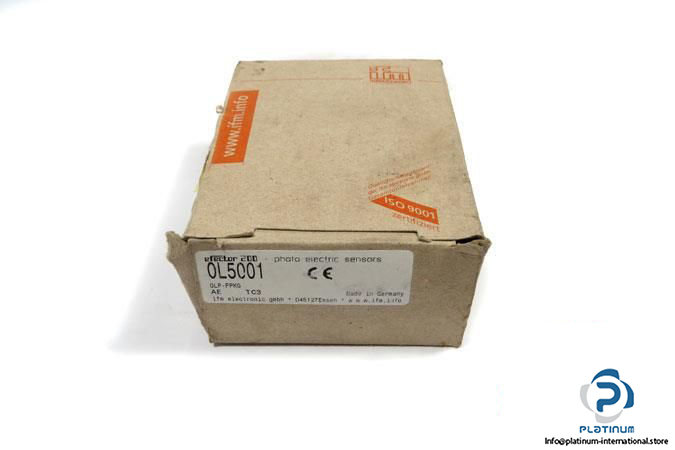

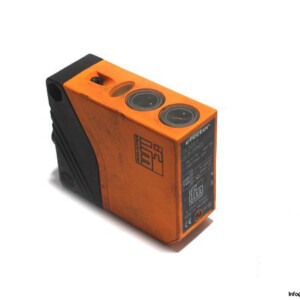

IFM OL5001 Retro-Reflective Sensor

Manufacturer: ifm

Type: RETRO REFLECTIVE SENSOR

Part No.: OL5001

MRN: OLP-FPKG

Sensing Range: 0.3 … 5 m

Operating Voltage: 10 … 36 V DC

Switching output current: 200 mA DC

Switching frequency: 500 Hz

Electrical design: PNP

Output Function: light-on/dark-on mode

Light spot diameter max.: 250 mm

Connector type: Cable gland M16 X 1.5

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 75 x 27 x 62 mm

Material: PA; PBT

Lens material: PMMA

Weight: 260 g
