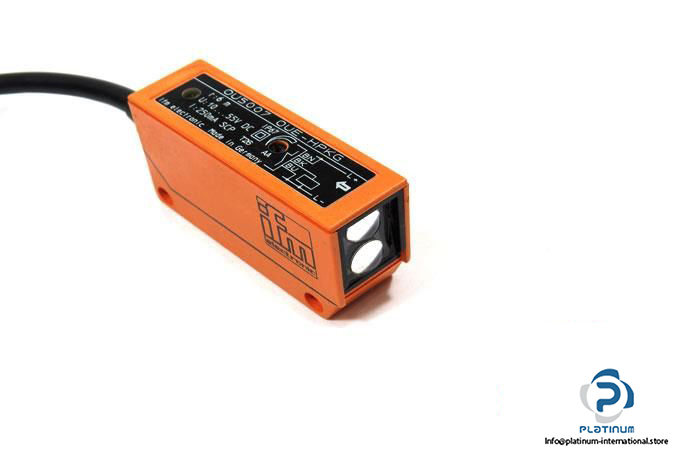

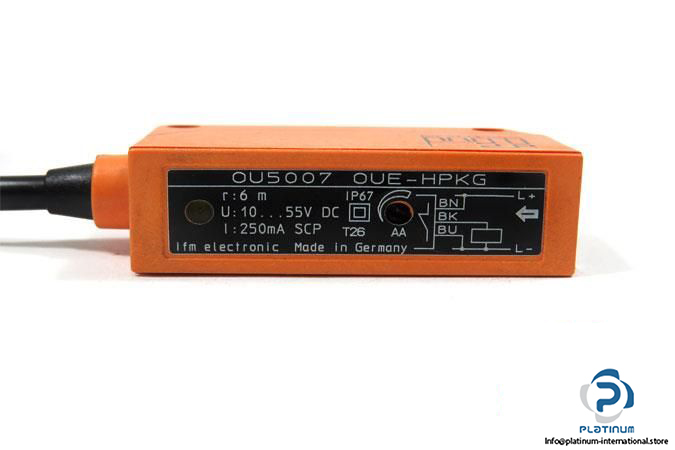

IFM OU5007 Through-Beam Photoelectric Sensor-Reciever

Manufacturer: ifm

Type: THROUGH BEAM PHOTOELECTRIC SENSOR- RECIEVER

Part No.: OU5007

MRN: OUE-HPKG

Sensing Range: 6 m

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Current Consumption: 20 mA

Switching frequency: 140 Hz

Electrical Design: PNP

Output Function: Light on mode

Type of light: Infrared light

Wave length: 880 nm

Connector type: PVC Cable

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 28 x 16 x 51 mm

Material: PPO modified

Lens material: Glass

Lens alignment: Side sensing

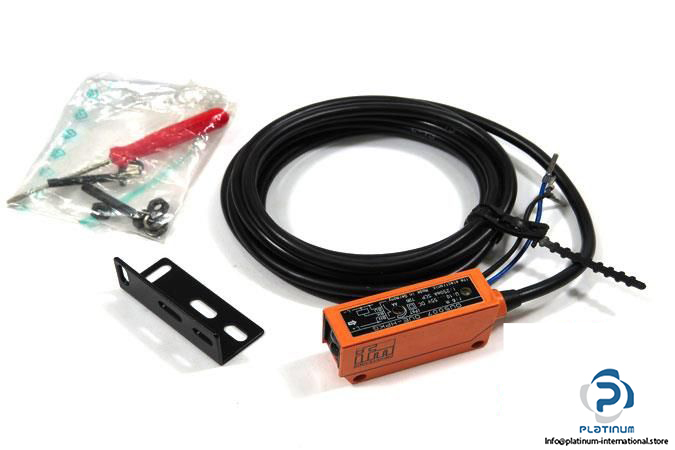

Supplied accessories: Angle bracket , screw driver

Weight: 150 g

Condition: New
