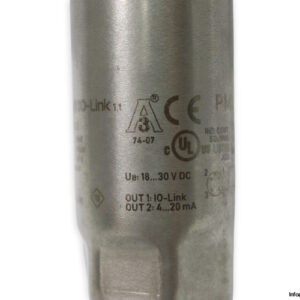

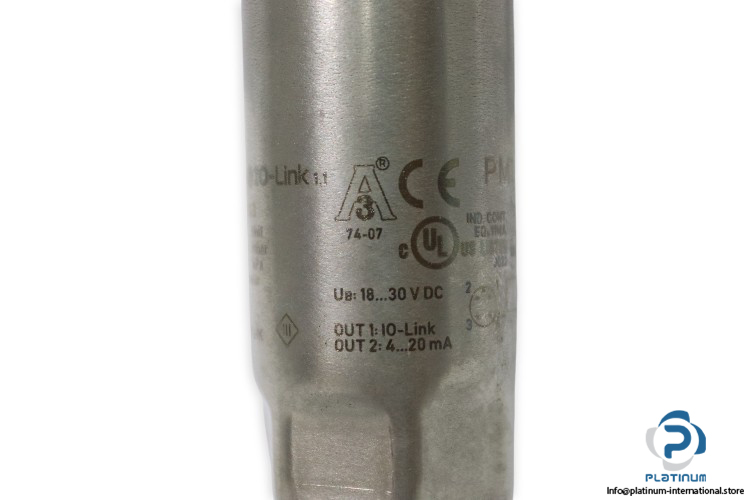

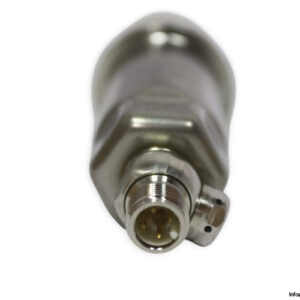

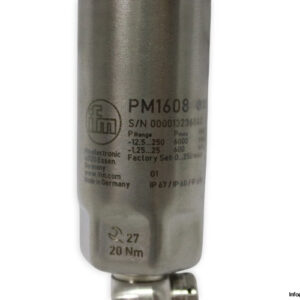

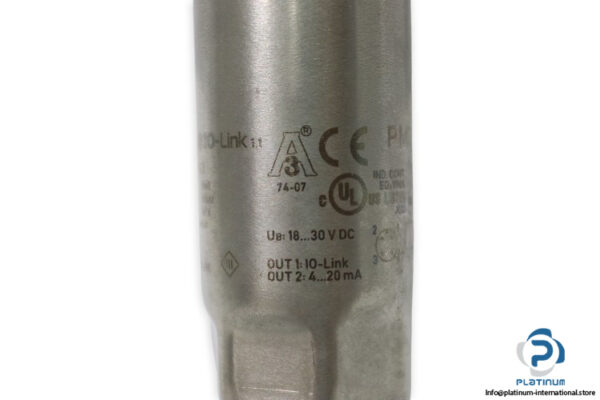

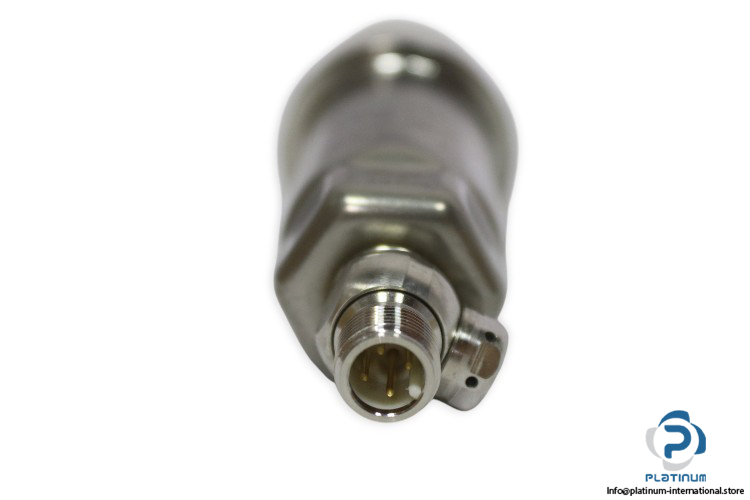

IFM PM1608 Flush Pressure Sensor
New
Available on request
Flush Pressure Sensor
The IFM PM1608 is a hygienic flush pressure sensor with IO-Link and analog output, offering precise measurement up to 250 mbar with robust stainless-steel housing and IP69K protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

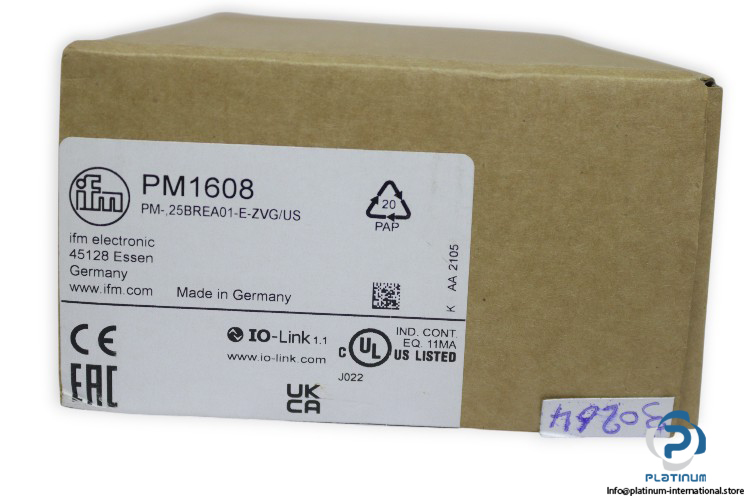

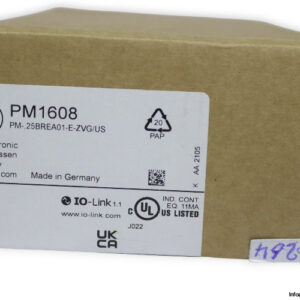

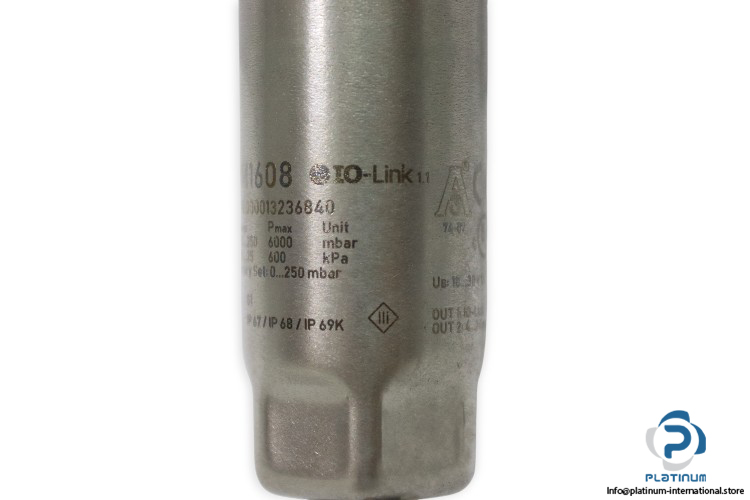

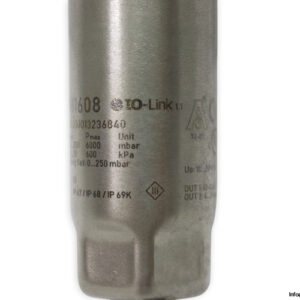

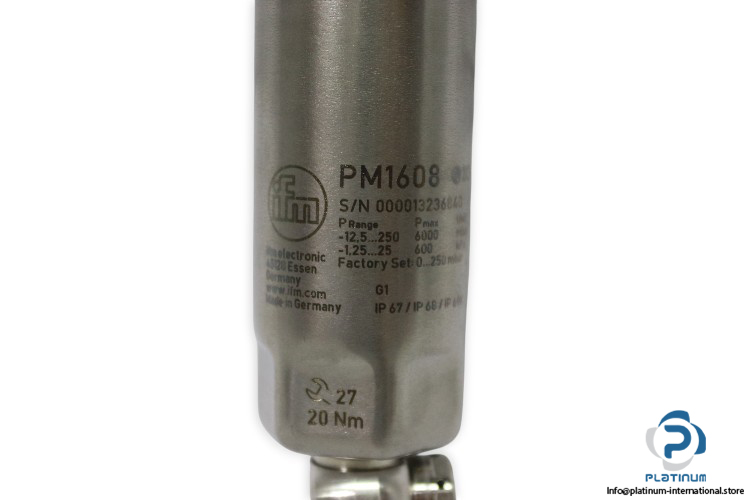

IFM Flush Pressure Sensor PM-,25BREA01-E-ZVG/US
The IFM PM1608 Flush Pressure Sensor is designed for hygienic applications requiring precise pressure measurement and durable construction. With robust stainless-steel housing, multiple output options, and wide ingress protection, it ensures reliable operation in demanding industrial environments.
Manufacturer: IFM
Type: Flush Pressure Sensor
Model: PM-,25BREA01-E-ZVG/US
Code: PM1608

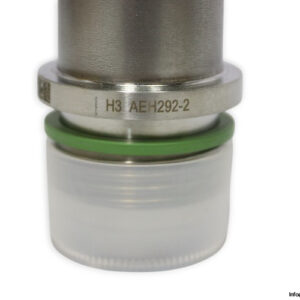

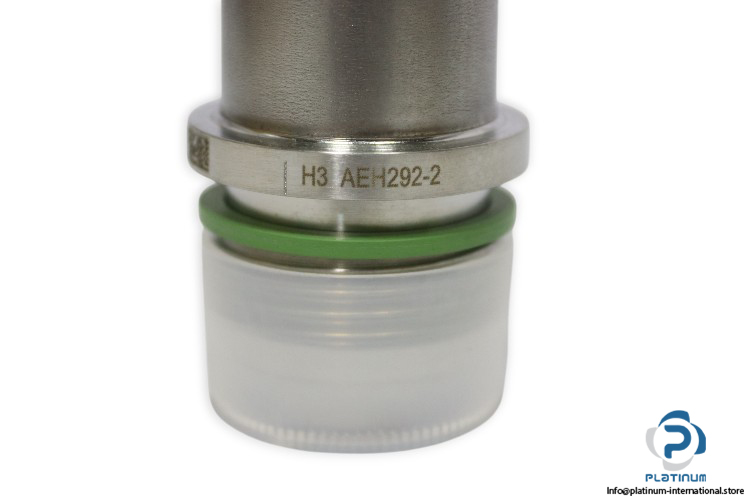

Ref. No.: H3 AEH292-2
Serial No.: 000013236840
| Number of Digital Outputs (DO) | 1 |
| Number of Analogue Outputs (AO) | 1 |
| Measuring Range | -12.5 to 250 mbar / -125 to 25 kPa |
| Pmax | 6000 mbar / 600 kPa |
| Factory Setting | 0 to 250 mbar |
| Supply Voltage (Ub) | 18 / 30 V DC |
| Output 1 | IO-Link 1.1 |
| Output 2 | 4 / 20 mA (analog) |
| Process Connection | G1 Thread |
| Housing Material | Stainless Steel, Hygienic Design |
| Ingress Protection | IP67 / IP68 / IP69K |
| Certifications | CE, UL Listed, EAC, UKCA |
| Torque | 20 Nm (Wrench Size 27 mm) |
