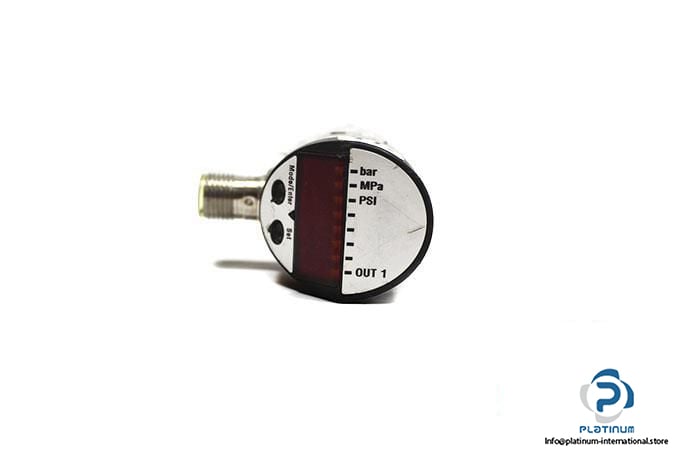

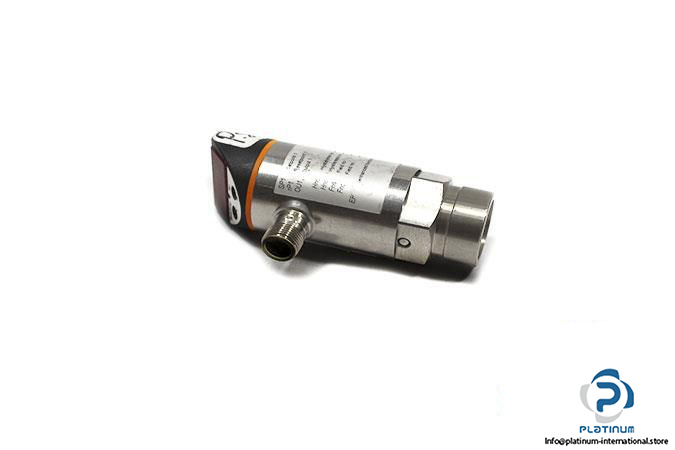

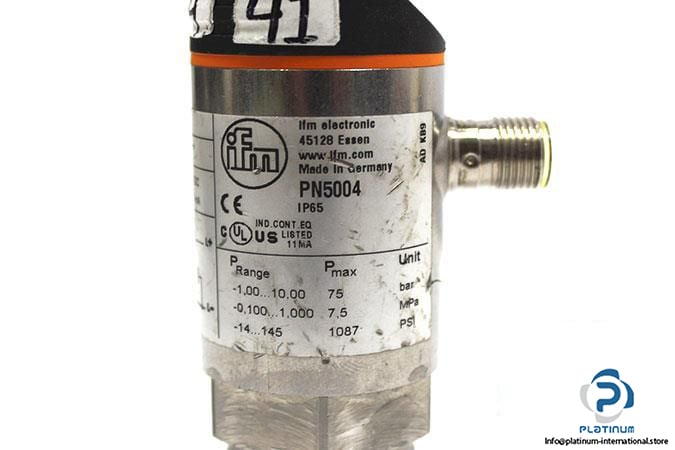

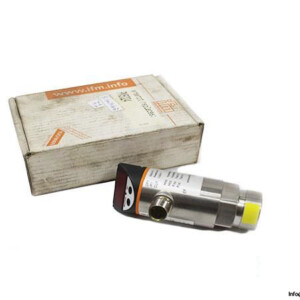

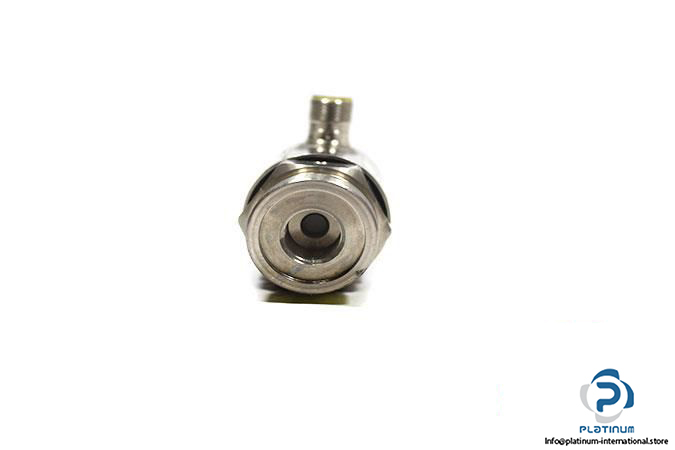

IFM PN5004 Pressure Sensor With Display

Manufacturer: IFM
Type: Pressure Sensor With Display
Model: PN5004
MNR: PN-010-RBR14-HFPKG/US
Successor: PN7094

Media: liquids and gases
Pressure Measuring Range: -1 … 10 bar,-14 … 145 Psi
Max. Pressure: 75 bar,7.5 MPa,1087 Psi
Connection: G 1/4
Electrical Connection: M12 Connector
Supply Voltage: 18 … 36 V DC
Permanent current rating of switching output DC: 250 mA
Number of inputs and outputs: 1
Electrical design: PNP
Output function: Normally open/Normally closed
Fluid Temperature Range: -25 … 80°C
