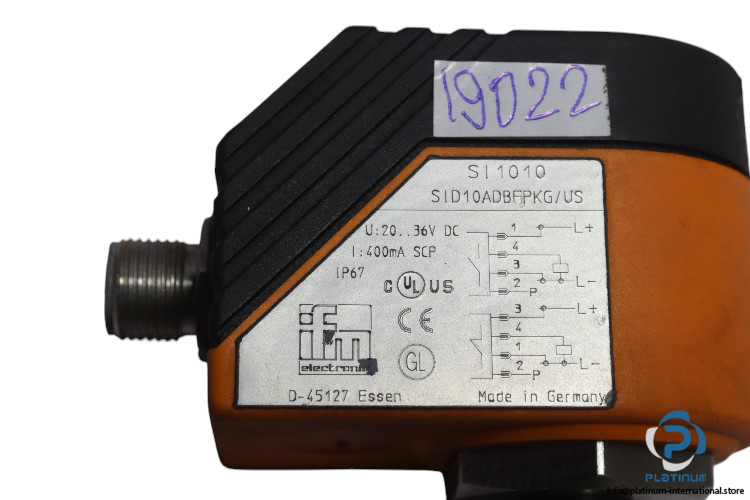

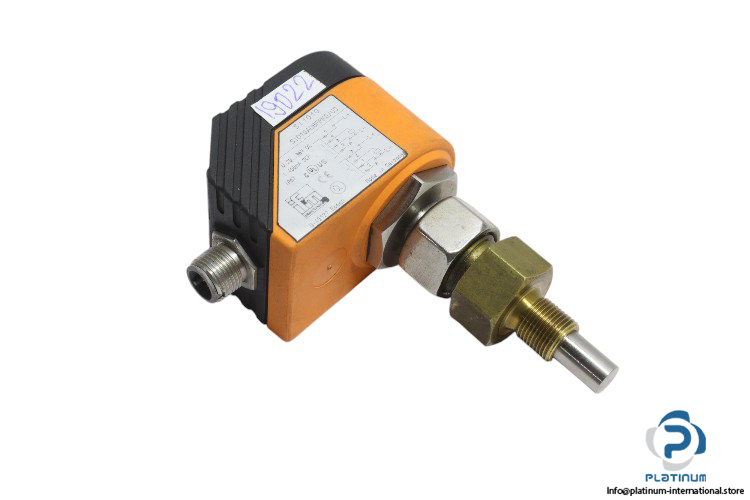

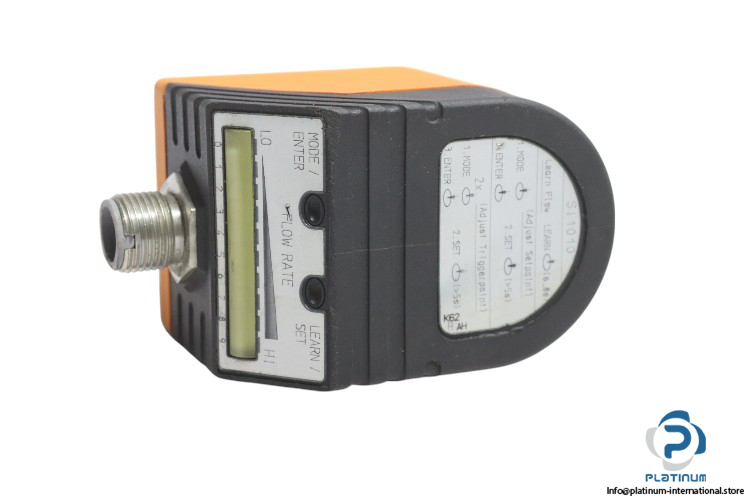

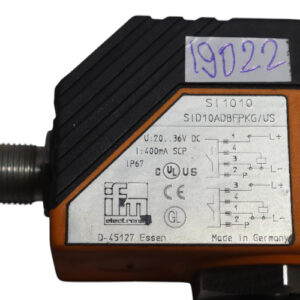

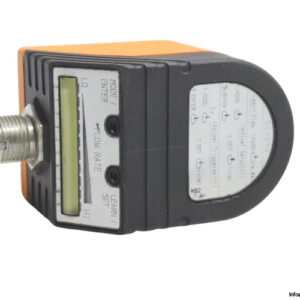

IFM SI1010 Flow Sensor
Flow Sensor
The IFM SI1010 Flow Sensor features a 300 bar pressure rating, 1 digital output, and an operating temperature range of -25 to 80°C. It measures liquid and gas flow with high accuracy and reliability.IFM SI1010 Flow Sensor
The IFM SI1010 Flow Sensor is a high-performance flow measurement device designed for precision in industrial applications. With a robust construction and high-pressure rating, it ensures reliable performance in both liquid and gas flow sensing. This flow sensor features easy adjustment and is built to withstand demanding environmental conditions, offering accurate flow measurement with quick response times.
Manufacturer: IFM
Type: Flow Sensor
Model: SI1010
Part No.: SID10ADBFPKG/US
Measuring Range (Liquids):
Measuring Range (Gases):
Connection:
Ideal for precise flow measurement in industrial applications, the IFM SI1010 Flow Sensor provides highly accurate results, ease of integration, and a long service life in harsh operating conditions.
| No. of Digital Outputs (DO) | 1 |
| Electrical Design | PNP |
| Output Function | Normally open / closed |
| Pressure Rating | 300 bar / 30 MPa |
| Operating Voltage | 20 to 36 V DC |
| Permanent Current of Switching Output | 400 mA |
| Current Consumption | 80 mA |
| Power-on Delay Time | 15s |
| Response Time | 1 to 10s |
| Sensing Range | 3 to 300 cm/s |
| Greatest Sensitivity | 3 to 60 cm/s |
| Sensing Range | 200 to 3000 cm/s |
| Greatest Sensitivity | 200 to 800 cm/s |

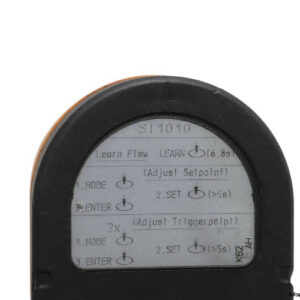

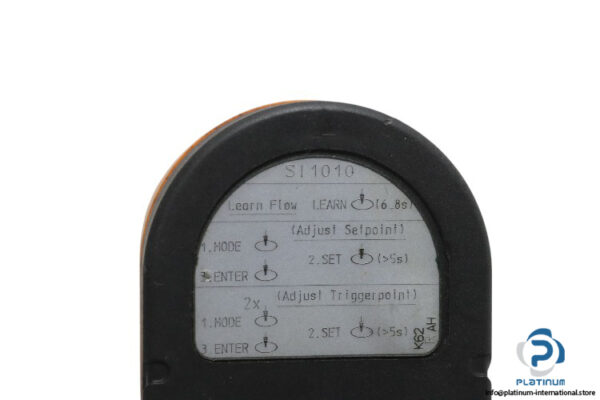

| Adjustment of the Switch Point | Pushbuttons |
| Protection Degree | IP67 |
| Material | PBT-GF20 |
| Connector | 1 x M12, coding A |
| Process Connection | Threaded connection M18 x 1.5 internal thread |
| Probe Diameter | 8.2 mm |
| Operating Temperature | -25 to 80°C |
| Dimensions | 60.5 x 42 x 109 mm |
