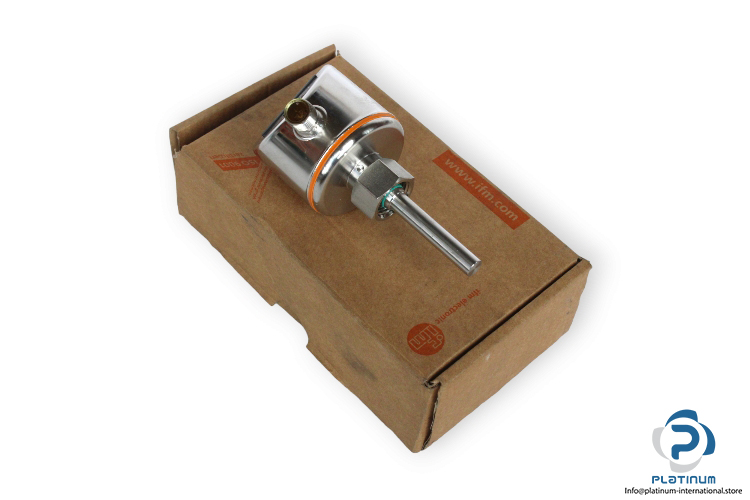

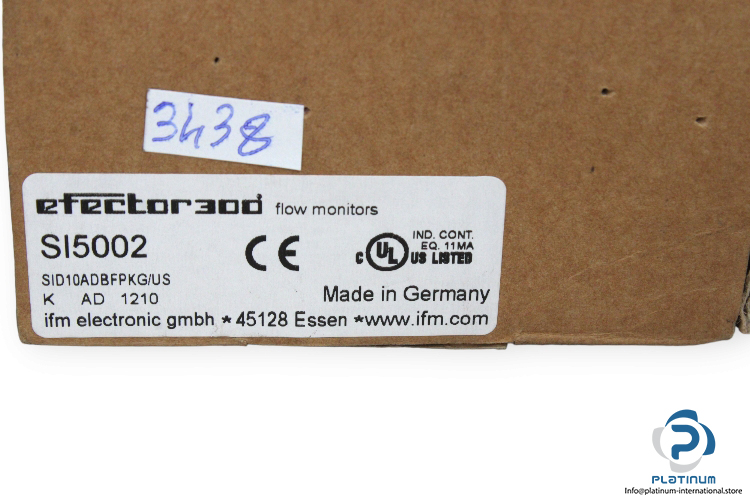

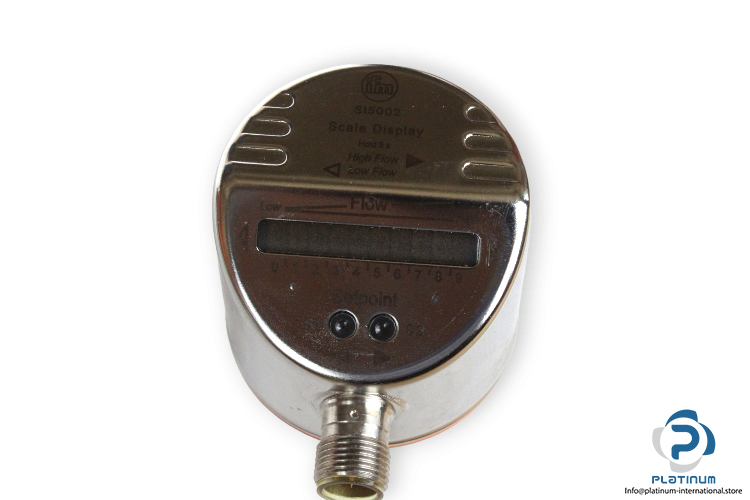

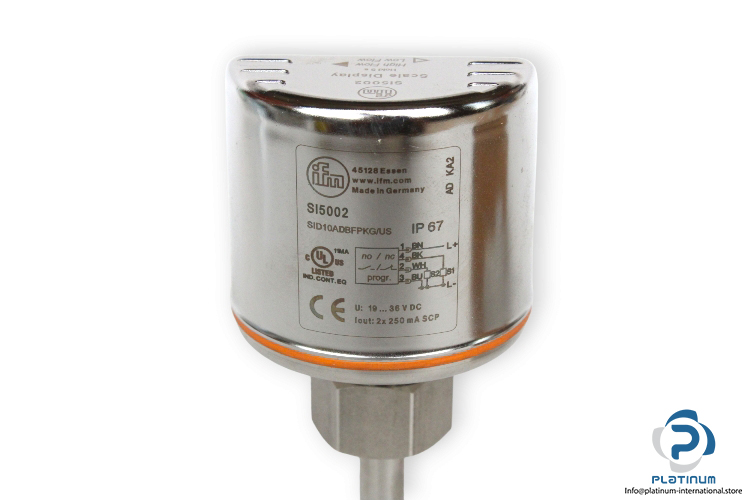

IFM SI5002 SID10ADBFPKG/US Flow Monitor
Manufacturer: IFM
Type: Flow Monitor
Model: SI5002 / SID10ADBFPKG/US
Description: Reliable Monitoring of Liquids and Gases in Pipes
Liquids:
-Sensing Range: 3 … 300 cm/s
-Greatest Sensitivity: 3 … 100 cm/s
Gases:
-Sensing Range: 200 … 3000 cm/s
-Greatest Sensitivity: 200 … 800 cm/s
Gases / Liquids Medium Temperature: -25 … 80 °C
Pressure Rating: 300 bar
Operating Voltage: 19 … 36 V DC
Current Consumption Max.: 60 mA
Digital Outputs No. (DO): 2
Switching Output: PNP Normally Open (NO) / Normally Closed (NC) (Parameterizable)
Switching Output Current: 250 mA
Electrical Connection: M12 Connector, A Coding, 4-Pin
Prob Length: 45 mm
Length, Diameter: 113, 50 mm
Protection Class: IP67
Housing Material: Stainless Steel
Operating Temperature: -25 … 80 °C
