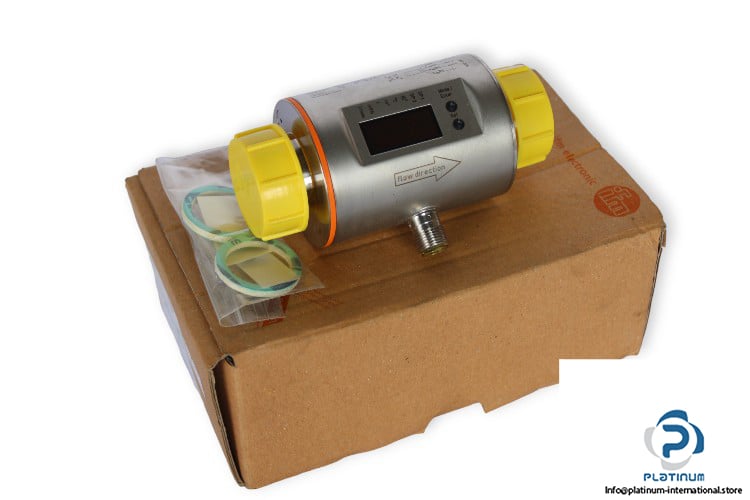

IFM SM8100 Magnetic-Inductive Flow Meter

Manufacturer: IFM
Type: Magnetic-inductive flow meter
Model: SM8100
MNR: SMR11GGXFRKG/US-100

Number of digital outputs: 2
Number of analogue outputs: 1
Measuring range:
0.2…100 l/min
0.01…6 m³/h
Process connection: threaded connection G 1 DN25 flat seal
Media: conductive liquids; water; hydrous media
Viscosity:  70 mm²/s (40 °C)
Medium temperature: -10 … 70 °C
Pressure rating: 16 bar
Operating voltage [V]: 18…30 DC
Current consumption [mA]: 95; (24 V)
Power-on delay time: 5 s
Electrical design: PNP/NPN
